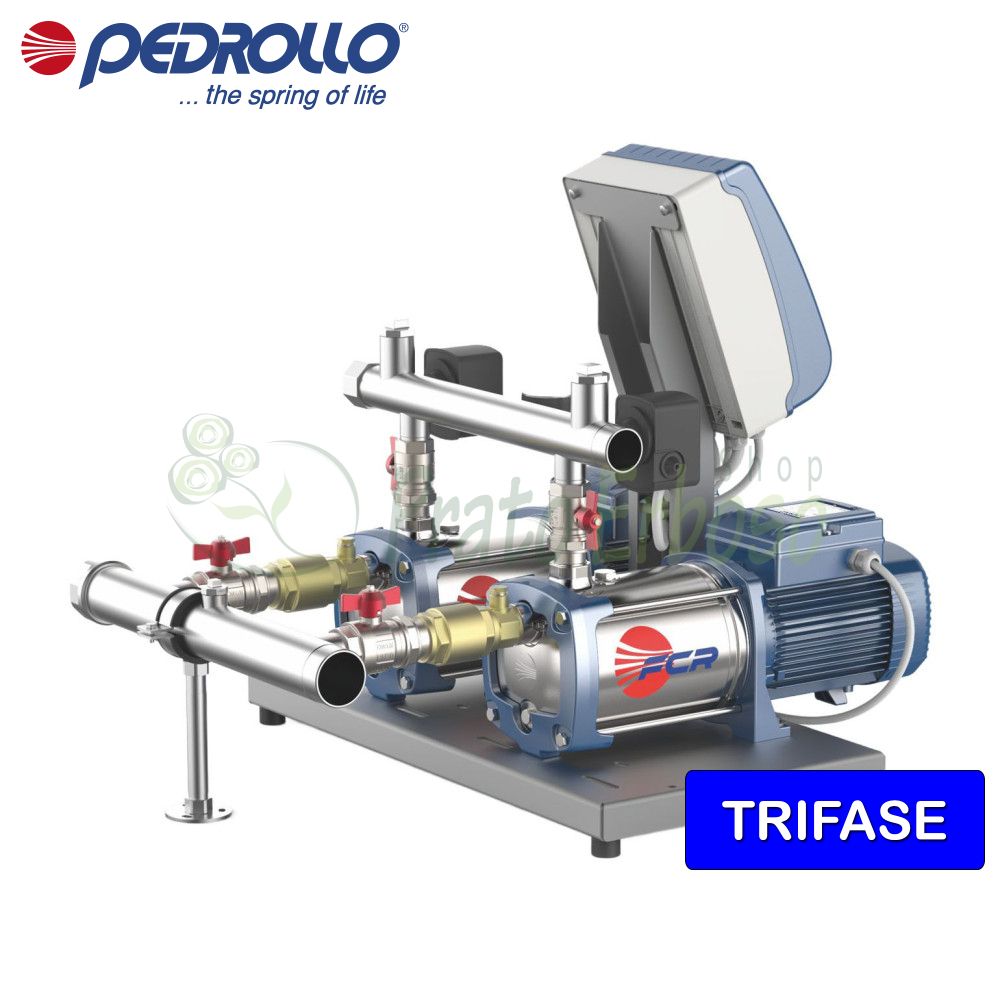

CB2 - FCR 130/5 - Three-phase pressure group 2x2.5 HP

2 x 1.8 kW (2 x 5 HP) motors. Flow rate up to 260 l/min (15.6 m³/h). Head up to 86 m.

€2,353.20 Tax included

1928.85 Tax excluded

€4,278.54-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - FCR 130/5 - Three-phase pressure group 2x2.5 HP
  • Use dot instead of comma

Loading

Description

The Pedrollo CB2 - FCR 130/5 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the components.

Its use is recommended in the domestic, civil, agricultural and industrial sectors for supply and pressure increase.

The CB2 - FCR 130/5 pressure set consists of two FCR 130/5 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.

The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.

The E2 control panel provides protection against dry running.

The CB2 - FCR 130/5 pressure group has a flow rate ranging from 10 to 260 litres per minute and a head from 51.5 to 86 metres.

Data sheet
Brand Pedrollo
Reference CB2 - FCR 130/5
In stock 50 Items
MPN KCCRI1305A
Motor connection
THREE-PHASE
Power (Kw)
3.6
Power (HP)
5
Current consumption at 400V (A)
10.0
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
260
Min. head (m.)
51.5
Max. head (m.)
86
Height (cm)
67.4
Width (cm)
70.0
Depth (cm)
80.5
Weight (Kg)
90
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - FCR Models and Performance
