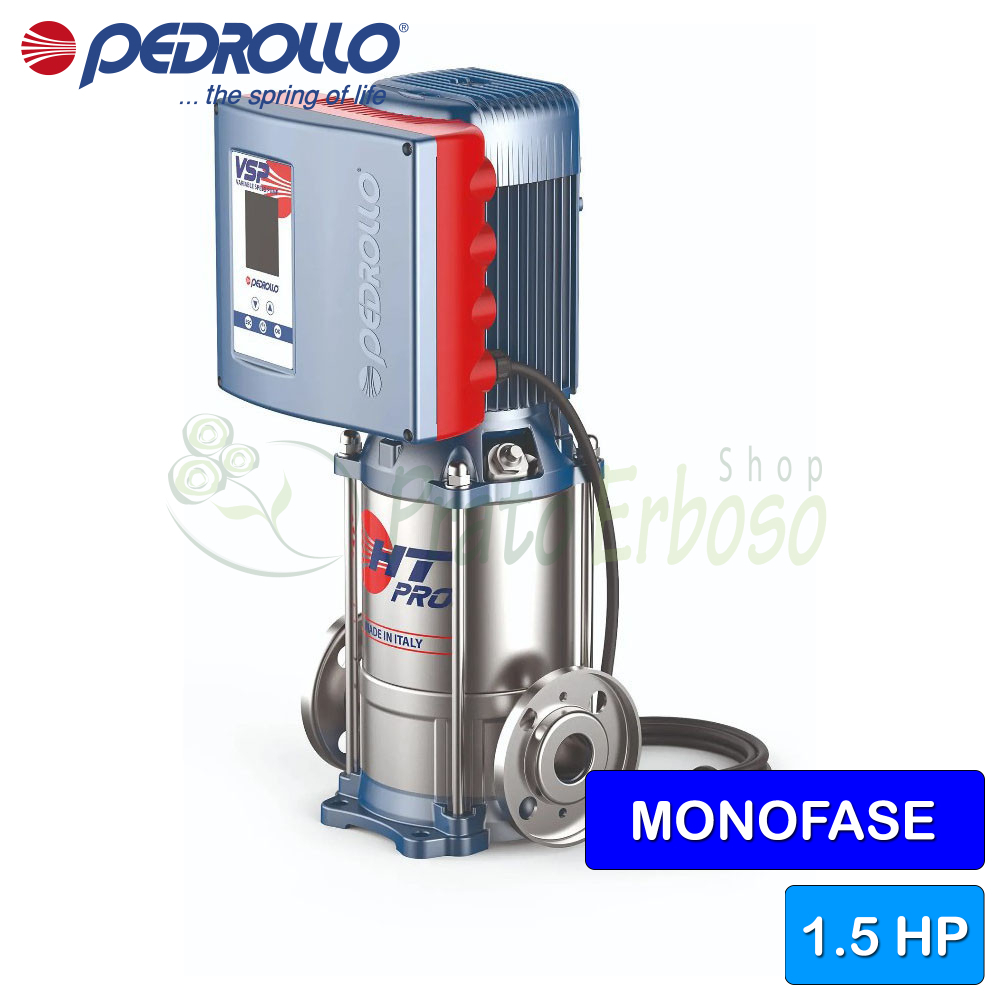

VSPm-HT 5/3 PRO - 1.5 HP single-phase pressure booster set

Flow rate up to 130 l/min (5.4 m³/h). Head up to 49 m. 1.1 kW (1.5 HP) motor.

€1,747.28 Tax included

1432.2 Tax excluded

€3,176.88-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

VSPm-HT 5/3 PRO - 1.5 HP single-phase pressure booster set
  • Use dot instead of comma

Loading

Description

The Pedrollo VSPm-HT 5/3-PRO inverter electric pump from the VSP series is the right choice in the event of system pressure drops.

The VSPm-HT 5/3-PRO is a system composed of an electric pump, a frequency converter and a pressure sensor that allow the pressure to be maintained constant.

It can pump clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

Ready to use, no setup required. The display and keypad allow for simple and intuitive setup.

Among the advantages of its use are considerable energy savings and greater comfort, thanks to optimized performance and low noise.

Data sheet
Brand Pedrollo
Reference VSPm-HT 5/3 PRO
In stock 40 Items
Motor connection
SINGLE-PHASE
Power (Kw)
1.1
Power (HP)
1.5
Absorption at 230V (A)
13
Suction mouth
1" 1/4
Delivery mouth
1" 1/4
Check valve
No
Minimum flow rate (l./min.)
5
Max. flow rate (l./min.)
130
Min. head (m.)
24
Max. head (m.)
49
Jobs
irrigation
pressurization systems
water supply
Height (cm)
48.3
Width (cm)
25
Length (cm)
26.9
Weight (Kg)
36.5
Warranty (years)
2
Attachments

VSP Technical Data Sheet

Construction and operating characteristics. Operating curves and operating limits of Pedrollo 's VSP series pressure sets.
