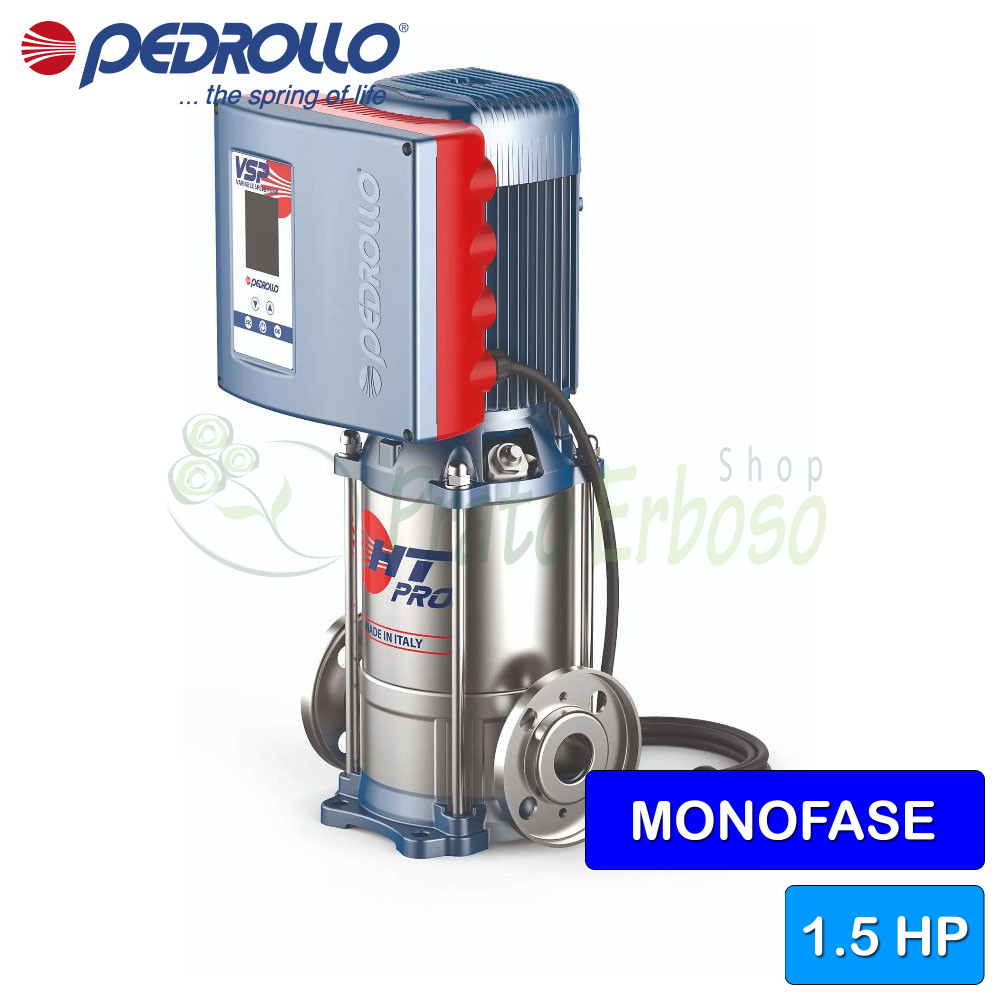

VSPm-HT 3/5 PRO - 1.5 HP single-phase pressure booster set
Flow rate up to 90 l/min (5.4 m³/h). Head up to 78 m. 1.1 Kw (1.5 HP) motor.
The VSPm-HT 3/5-PRO inverter electric pump from the VSP series by Pedrollo is an intelligent pumping unit.
Equipped with a display and keyboard, programming has never been so easy thanks to these tools.
The variable frequency drive and pressure sensor ensure constant pressure regardless of the amount of water required by the system.
The advantages of using the VSPm-HT 3/5-PRO include ease of installation, configuration and adjustment, increased comfort and considerable energy savings.
It adapts to any type of pressurization system, even pre-existing ones.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 38
- Max. head (m.)
- 79
- Jobs
- irrigation
pressurization systems
water supply - Height (cm)
- 53.5
- Width (cm)
- 25
- Length (cm)
- 26.9
- Weight (Kg)
- 37.5
- Warranty (years)
- 2
