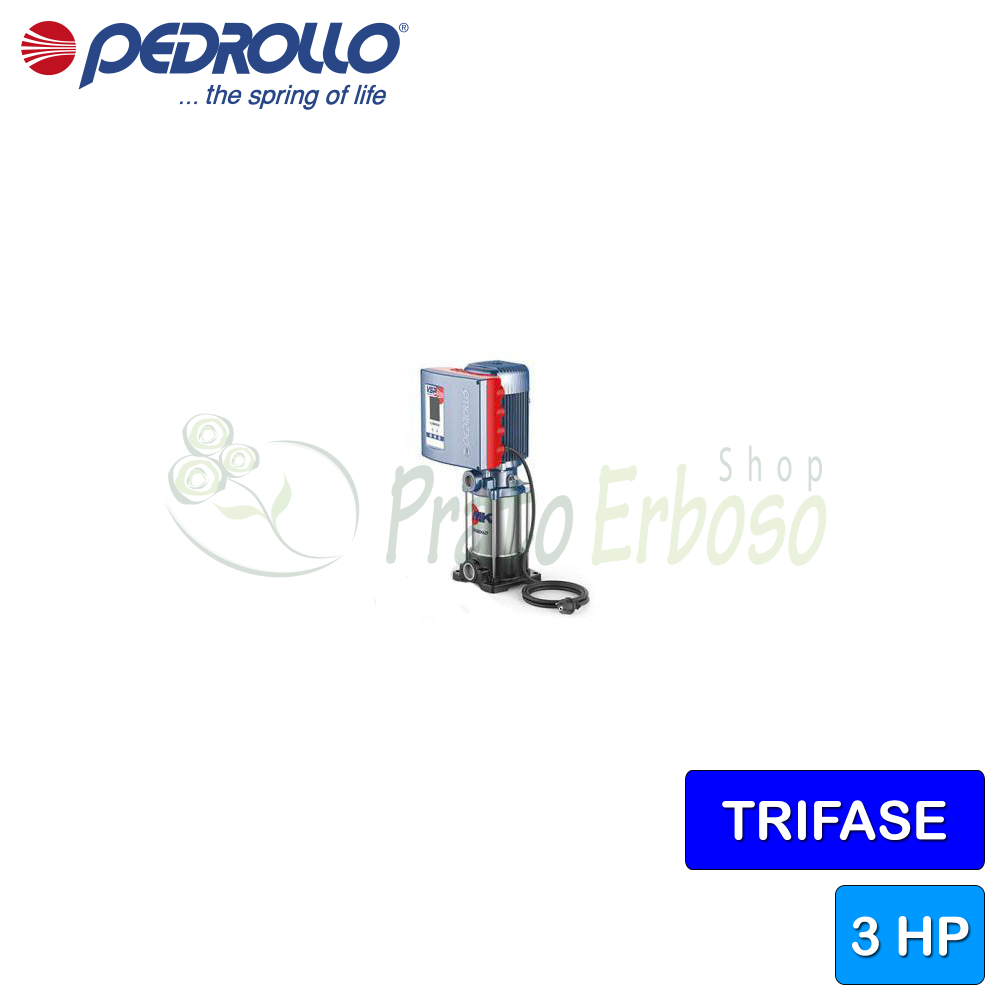

VSP-MK 5/8 - 3 HP three-phase pressure group
Flow rate up to 120 l/min (5.4 m³/h). Head up to 108 m. 2.2 Kw (3 HP) motor.
Description
The VSP-MK 5/8 inverter electric pump from Pedrollo 's VSP series guarantees comfort and silence.
Recommended for residential and commercial installations for water supply and pressure boosting activities.
This system consists of an electric pump and a frequency converter.
Greater comfort is guaranteed by optimised performance and low noise.
The VSP-MK 5/8 system is suitable for any type of pressurization system, even existing ones.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 34
- Max. head (m.)
- 108
- Jobs
- irrigation
pressurization systems
water supply - Height (cm)
- 60.2
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight (Kg)
- 28.6
- Warranty (years)
- 2
