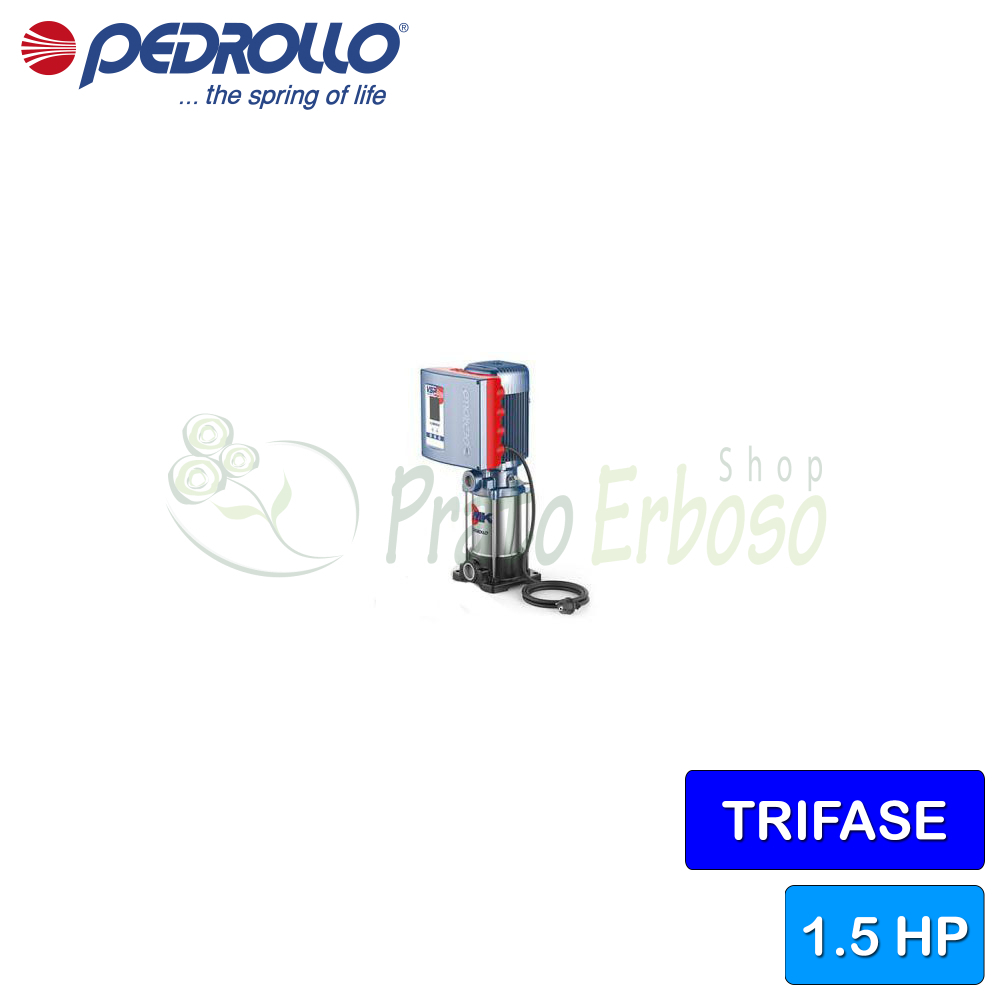

VSP-MK 5/5 - 1.5 HP three-phase pressure booster set
Flow rate up to 120 l/min (5.4 m³/h). Head up to 69 m. 1.1 Kw (1.5 HP) motor.
Description
The VSP-MK 5/5 inverter electric pump from Pedrollo 's VSP series stands out for its flexibility and ease of use.
It adapts to any type of pressurization system, even existing ones.
Programming and configuring the system is simple thanks to the display and keypad.
It protects the system from dry running, overcurrent, overvoltage and undervoltage, overtemperature and short circuits.
The VSP-MK 5/5 system is the right choice in case of system pressure drops.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 21.5
- Max. head (m.)
- 69
- Jobs
- irrigation
pressurization systems
water supply - Height (cm)
- 50.1
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight (Kg)
- 25.2
- Warranty (years)
- 2
