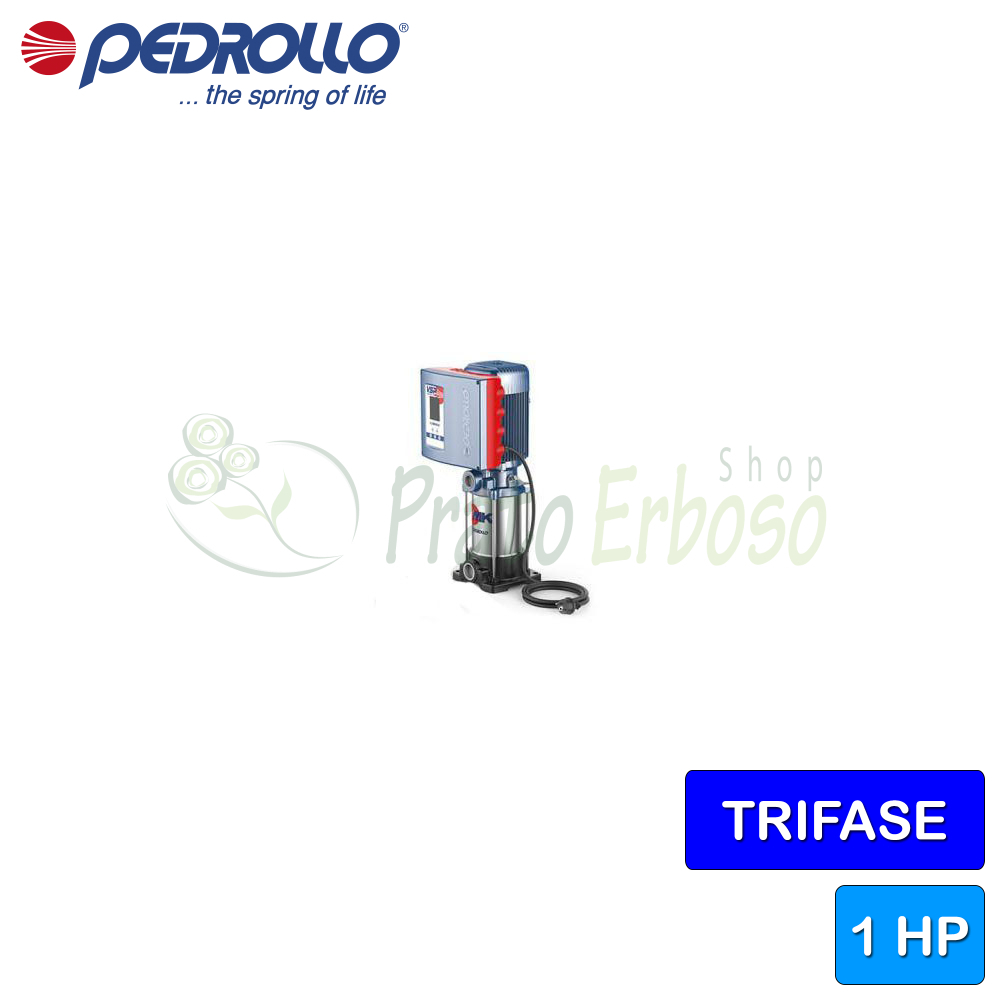

VSP-MK 5/4 - 1 HP three-phase pressure booster set
0.75 kW (1 HP) motor. Flow rate up to 120 l/min (5.4 m³/h). Head up to 55 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 18 June - Friday 19 June |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 18 June - Friday 19 June |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 19 June - Monday 22 June |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 18 June - Friday 19 June
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 18 June - Friday 19 June
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 19 June - Monday 22 June
The VSP-MK 5/4 inverter electric pump from Pedrollo 's VSP series is an intelligent pumping unit.
Equipped with a display and keyboard, programming has never been so easy thanks to these tools.
The variable frequency drive and pressure sensor ensure constant pressure regardless of the amount of water required by the system.
The advantages of using the VSP-MK 5/4 include ease of installation, configuration and adjustment, increased comfort and considerable energy savings.
It adapts to any type of pressurization system, even pre-existing ones.
- Motor connection
- THREE-PHASE
- Power (HP)
- 1
- Absorption at 230V (A)
- 13
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 20
- Max. head (m.)
- 55
- Jobs
- irrigation, pressurization systems, water supply
- Height (cm)
- 47.4
- Width (cm)
- 24.2
- Length (cm)
- 25.5
- Weight (Kg)
- 23.8
- Warranty (years)
- 2
