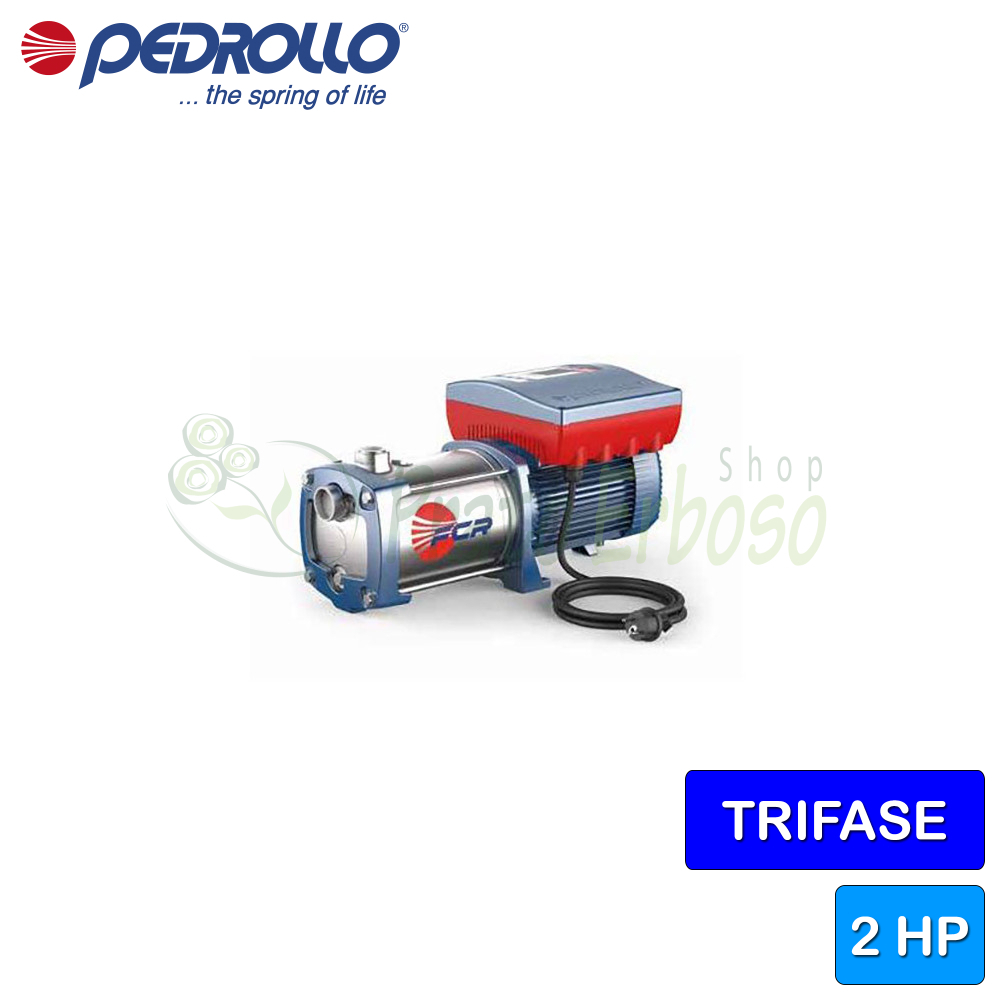

VSP-FCR 75/90 - 2 HP three-phase pressure booster set
The VSP-FCR 75/90 system from Pedrollo 's VSP series is a compact pumping unit, complete with electric pump, inverter and pressure sensor.
Ideal for domestic and civil pressurization systems, the VSP pumping unit, thanks to the inverter speed regulator, allows you to modulate the motor revolutions in relation to the quantity of water used by the system, reducing energy consumption and always maintaining constant system pressure, even when the number of users varies.
It has a flow rate that varies from 5 to 90 litres per minute with a head of 73 to 44 metres.
Robust and simple to use, it is ideal for simultaneously generating constant pressure on all taps.
The inverter drive on the pump reduces wear and tear on the electric pump as it runs at a low speed for most of its life and starts and stops progressively.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 44
- Max. head (m.)
- 73
- Jobs
- irrigation
pressurization systems
water supply - Height (cm)
- 26
- Width (cm)
- 24.2
- Length (cm)
- 44.5
- Weight (Kg)
- 21.7
- Warranty (years)
- 2
