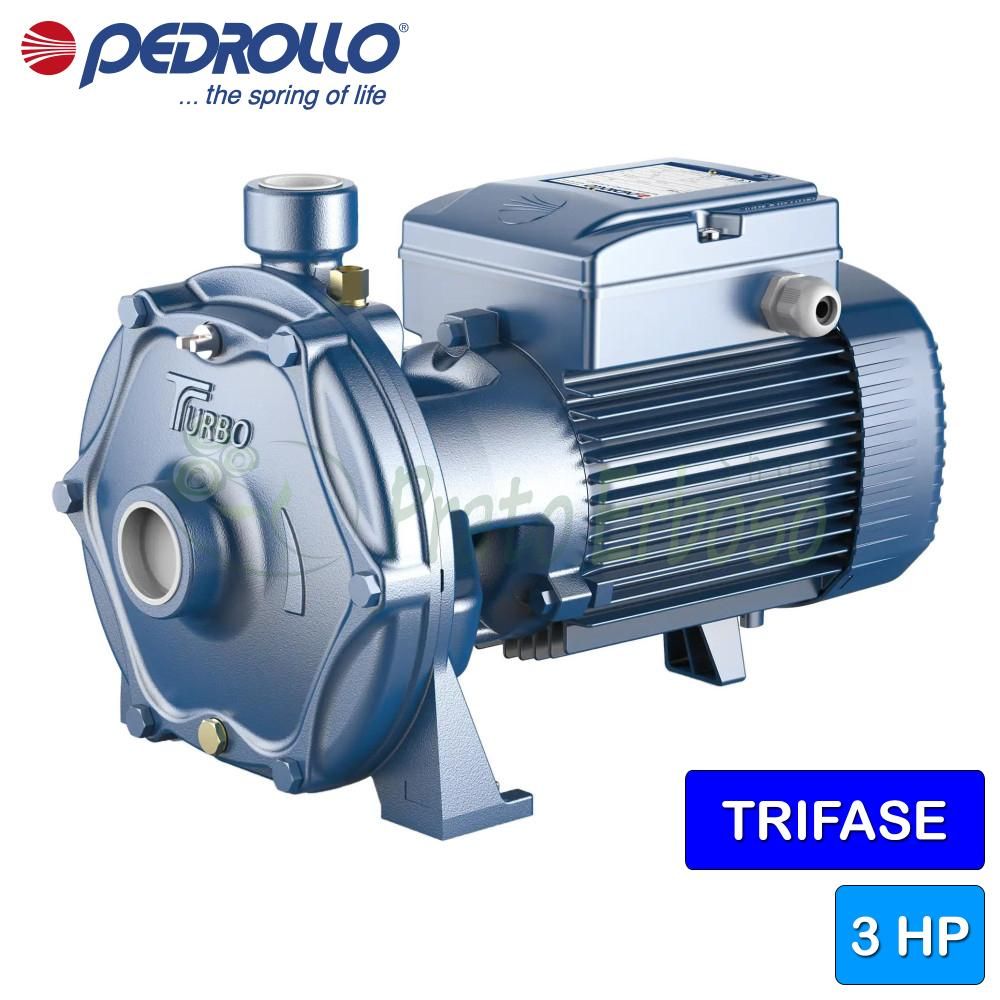

TURBO 6A - 3 HP three-phase twin-impeller centrifugal electric pump
The Pedrollo TURBO 6A twin-impeller electric pump is recommended for pumping clean water.
Suitable for water distribution with pressure tanks and accumulation tanks, for increasing network pressure and for irrigation systems in the domestic, civil and industrial sectors.
Pedrollo designed the hydraulic part to obtain more power, efficiency and to make the electric pump quieter.
The TURBO 6A has a 40% higher flow rate, is 30% quieter and allows for energy and water savings to ensure greater sustainability.
The use of stainless steel and cast iron make this pump a reliable, robust and durable product.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 8.7
- Current consumption at 400V (A)
- 5.0
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 21
- Max. head (m.)
- 68
- Jobs
- irrigation
water supply - Max. liquid temperature (°C)
- 90
- Height (cm)
- 25.6
- Width (cm)
- 22.5
- Depth (cm)
- 42.3
- Weight (Kg)
- 27.3
- Warranty (years)
- 2
TURBO 6 Models and Performance
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
