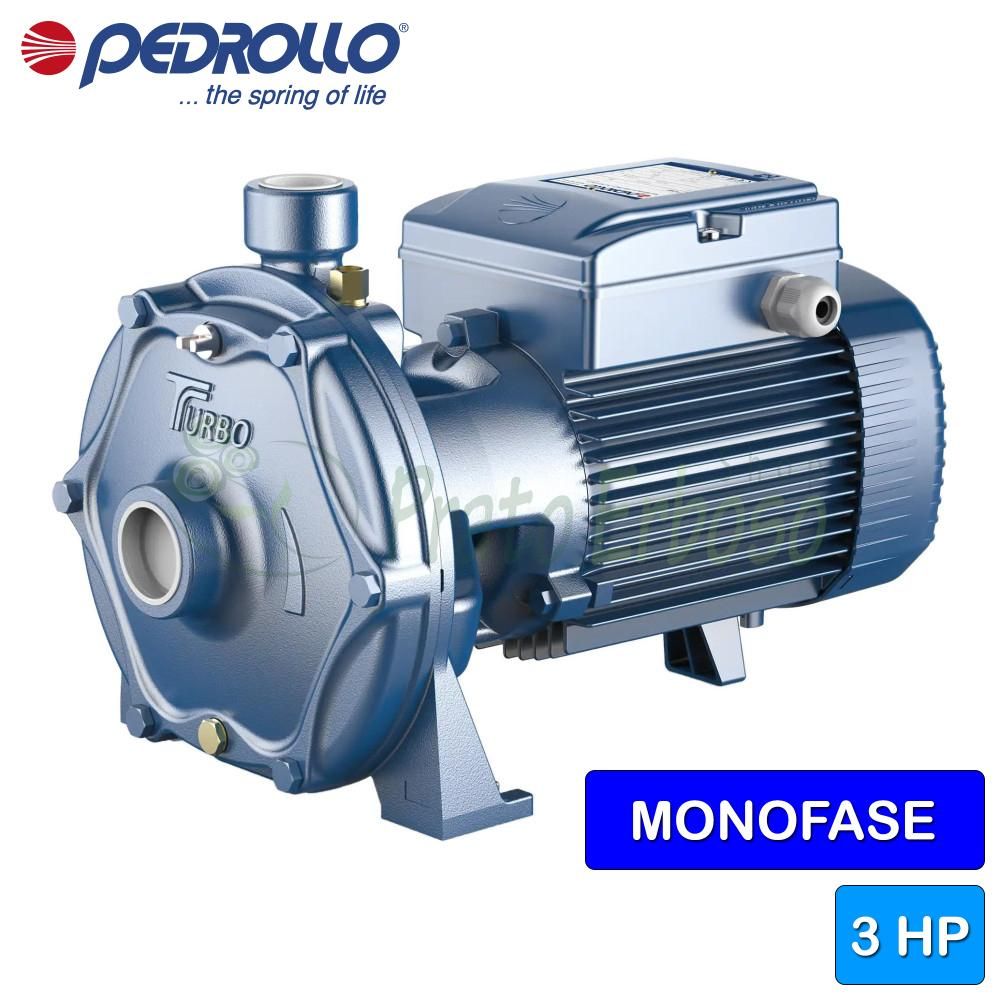

TURBOm 6A - 3 HP single-phase twin-impeller centrifugal electric pump
Description
The Pedrollo TURBOm 6A twin-impeller centrifugal electric pump is suitable for water distribution with pressure tanks and accumulation tanks, for increasing network pressure and for irrigation systems.
Recommended for use in the domestic, civil and industrial sectors.
The flow rate ranges from a minimum of 20 to a maximum of 200 liters per minute. The reach can vary from 21 to 68 meters.
The TURBOm 6A has a 40% higher flow rate and is 30% quieter, allowing you to optimise water and energy consumption.
Pedrollo has created a solid and robust product to last over time.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 12.0
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 21
- Max. head (m.)
- 68
- Jobs
- irrigation
water supply - Max. liquid temperature (°C)
- 90
- Height (cm)
- 25.6
- Width (cm)
- 22.5
- Depth (cm)
- 42.3
- Weight (Kg)
- 27.1
- Warranty (years)
- 2
TURBOm 6 models and performance
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
