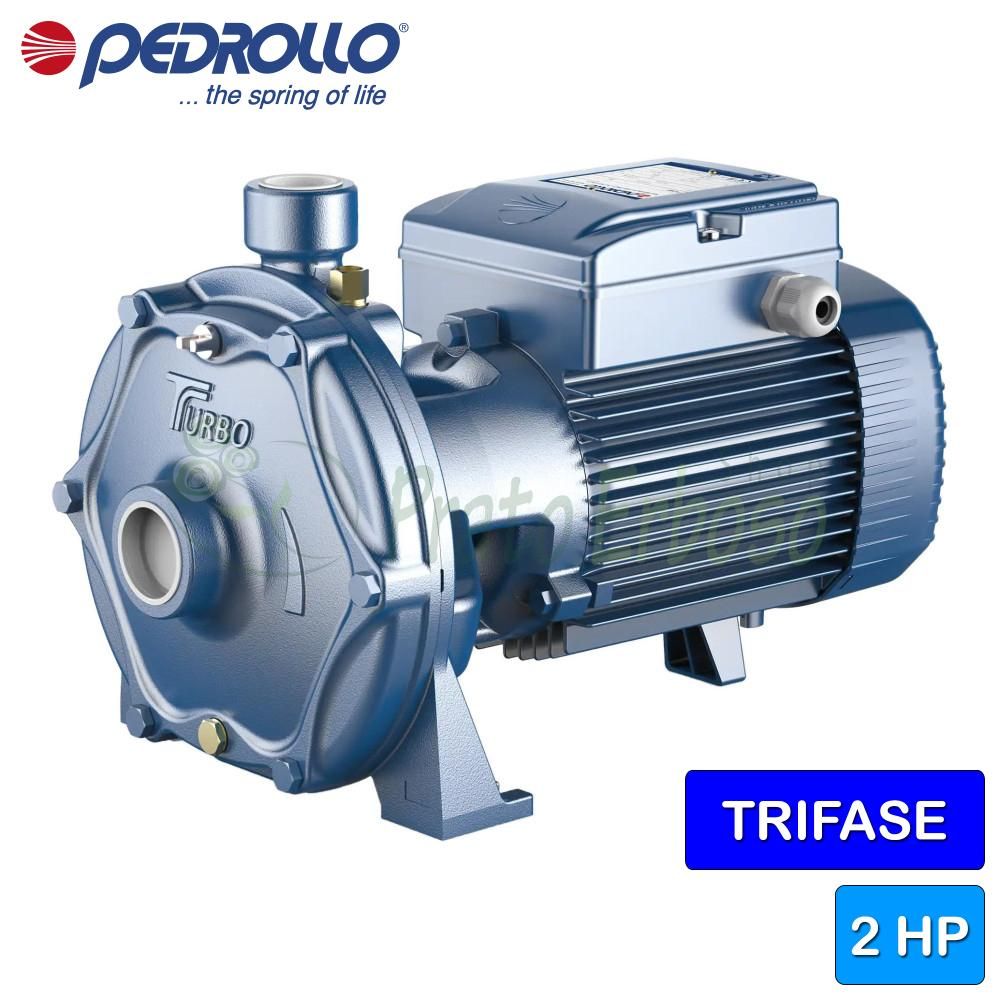

TURBO 6B - 2 HP three-phase twin-impeller centrifugal electric pump
Flow rate up to 180 l/min (10.8 m³/h). Head up to 58 m. 1.5 Kw (2 HP) motor.
The Pedrollo TURBO 6B twin-impeller centrifugal electric pump is recommended for use in the domestic, civil and industrial sectors.
Particularly suitable for water distribution with pressure tanks and accumulation tanks, for increasing network pressure and for irrigation systems.
The TURBO 6B stands out for its power, efficiency and silence.
Pedrollo redesigned the hydraulic system, improving the pump's flow rate by an additional 40 liters per minute, making it 30% quieter, and reducing energy costs, promoting sustainability.
The pump is solid, robust and durable thanks to the use of stainless steel and cast iron in its construction.
The flow rate ranges from a minimum of 20 to a maximum of 140 liters per minute. The reach can vary from 31 to 66 meters.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 6.4
- Current consumption at 400V (A)
- 3.7
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 20
- Max. head (m.)
- 58
- Jobs
- irrigation
water supply - Max. liquid temperature (°C)
- 90
- Height (cm)
- 25.6
- Width (cm)
- 22.5
- Depth (cm)
- 40.3
- Weight (Kg)
- 24.4
- Warranty (years)
- 2
TURBO 6 Models and Performance
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
