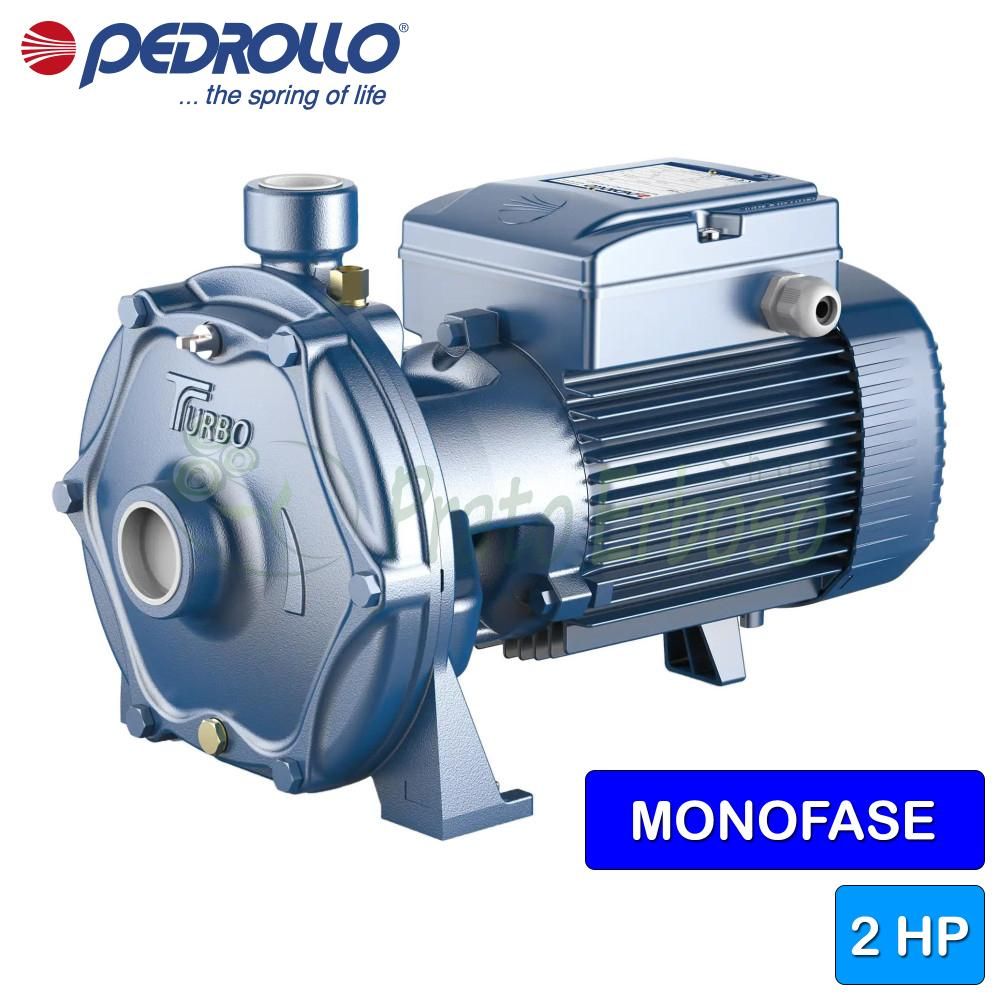

TURBOm 6B - 2 HP single-phase twin-impeller centrifugal electric pump
Flow rate up to 180 l/min (10.8 m³/h). Head up to 58 m. 1.5 Kw (2 HP) motor.
The Pedrollo TURBOm 6B twin-impeller centrifugal electric pump excels in power, efficiency and silence.
Pedrollo has redesigned the electric pump's entire hydraulic system to improve performance and noise levels. The TURBOm 6B has a 40% higher flow rate and is 30% quieter.
Its high efficiency has made this pump more economical in consumption, attentive to water saving and sustainability.
Recommended for domestic, civil, and industrial applications. Particularly suitable for water distribution with pressure tanks and storage tanks, for increasing mains pressure, and for irrigation systems.
The flow rate ranges from a minimum of 20 to a maximum of 180 liters per minute. The reach can vary from 20 to 58 meters.
The TURBOm 6B is made of materials such as cast iron and stainless steel for excellent resistance and great solidity.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 10.0
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 20
- Max. head (m.)
- 58
- Jobs
- irrigation
water supply - Max. liquid temperature (°C)
- 90
- Height (cm)
- 25.6
- Width (cm)
- 22.5
- Depth (cm)
- 40.3
- Weight (Kg)
- 24.2
- Warranty (years)
- 2
TURBOm 6 models and performance
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
