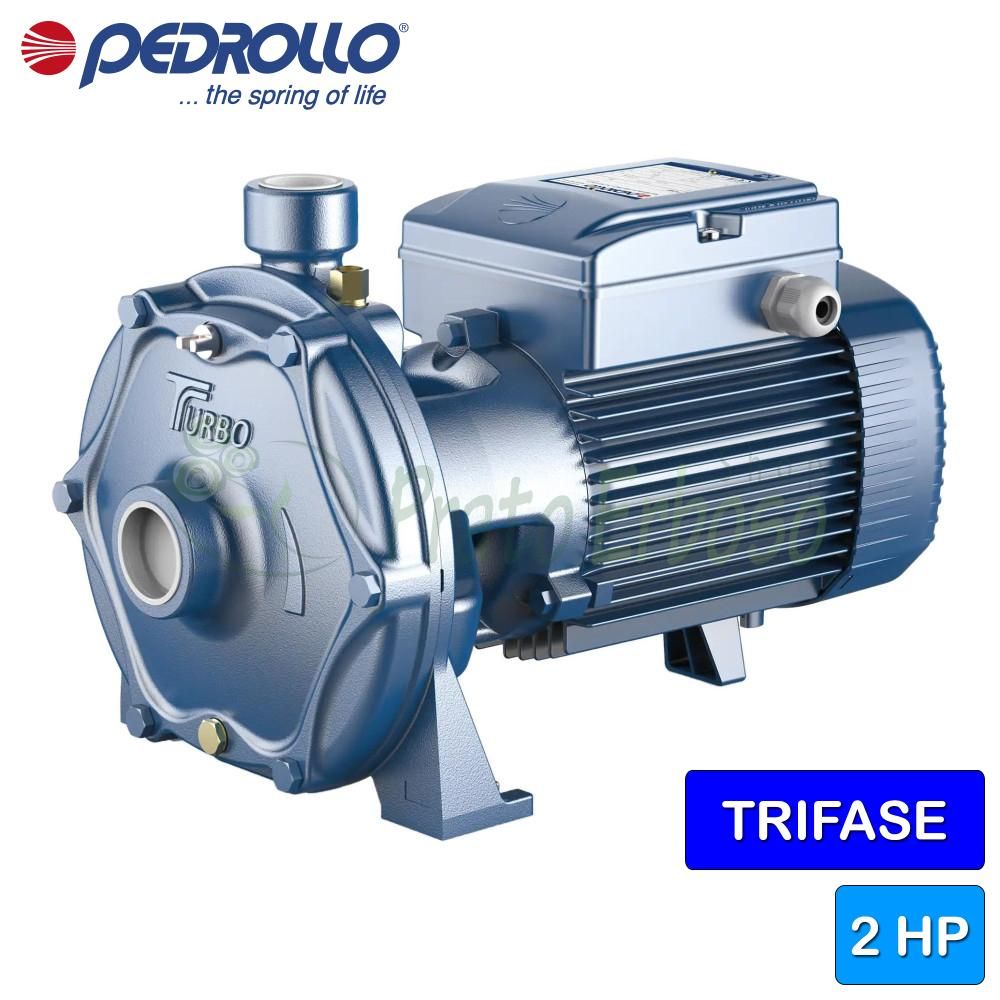

TURBO 4A - 2 HP three-phase twin-impeller centrifugal electric pump
Flow rate up to 140 l/min (8.4 m³/h). Head up to 66 m. 1.5 Kw (2 HP) motor.
The Pedrollo TURBO 4A twin-impeller centrifugal electric pump is suitable for water distribution with pressure tanks and accumulation tanks, for increasing network pressure and for irrigation systems.
Recommended for use in the domestic, civil and industrial sectors.
The flow rate ranges from a minimum of 20 to a maximum of 140 liters per minute. The reach can vary from 31 to 66 meters.
The TURBO 4A has a 40% higher flow rate and is 30% quieter, allowing you to optimise water and energy consumption.
Pedrollo has created a solid and robust product to last over time.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 6.4
- Current consumption at 400V (A)
- 3.7
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 140
- Min. head (m.)
- 31
- Max. head (m.)
- 66
- Jobs
- irrigation
water supply - Max. liquid temperature (°C)
- 90
- Height (cm)
- 25.6
- Width (cm)
- 22.5
- Depth (cm)
- 40.3
- Weight (Kg)
- 24.5
- Warranty (years)
- 2
