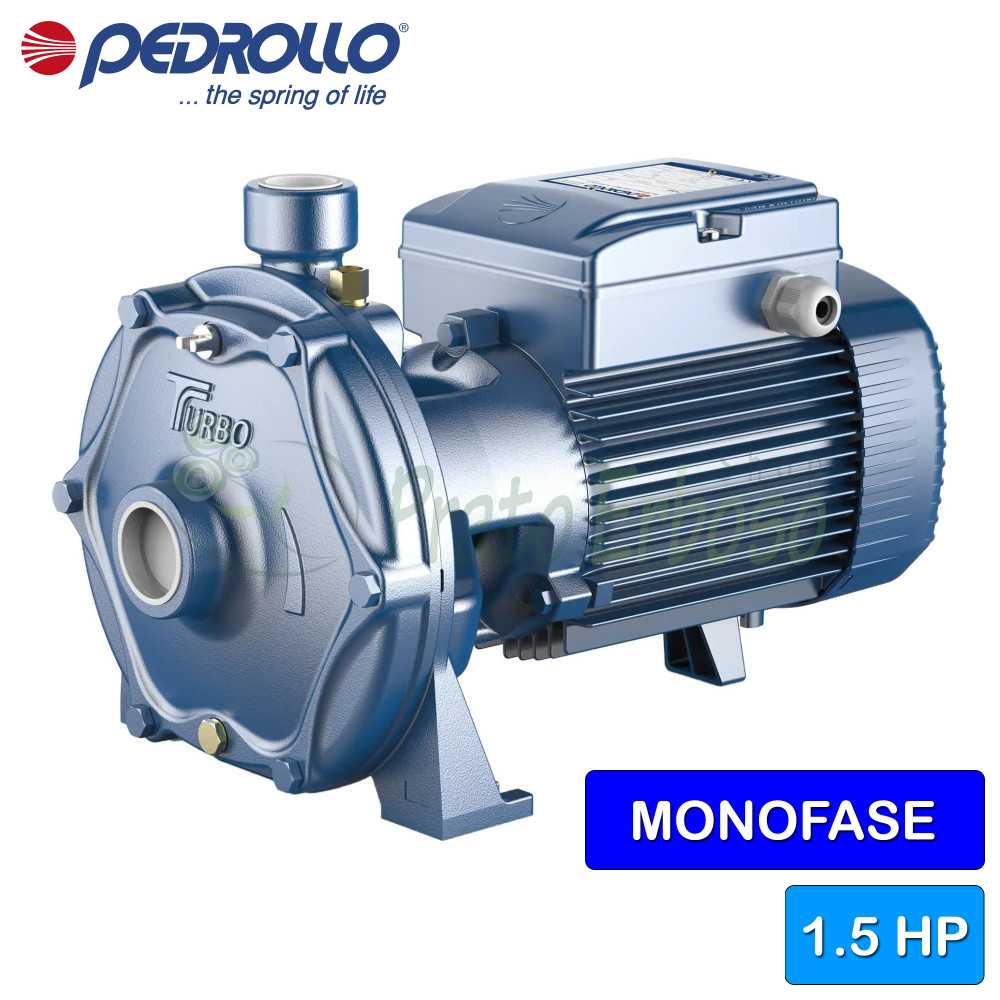

TURBOm 4B - 1.5 HP single-phase twin-impeller centrifugal electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 53 m. 1.1 kW (1.5 HP) motor.
The Pedrollo TURBOm 4B twin-impeller centrifugal electric pump stands out for its power, efficiency and silence.
Recommended for use in domestic, civil, and industrial applications. Especially for water distribution with pressure tanks and storage tanks, for increasing mains pressure, and for irrigation systems.
The hydraulic redesign of the electric pump has allowed Pedrollo to increase the flow rate by 40 liters per minute and at the same time reduce the silence by 30%.
Thanks to its efficiency, the TURBOm 4B also allows you to optimise energy consumption and maintenance costs, with particular attention to sustainability.
The construction is solid and robust to allow the product to last over time.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 7.0
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 25
- Max. head (m.)
- 53
- Jobs
- irrigation
water supply - Max. liquid temperature (°C)
- 90
- Height (cm)
- 22.5
- Width (cm)
- 20.3
- Depth (cm)
- 40.3
- Weight (Kg)
- 21.5
- Warranty (years)
- 2
TURBOm 4 models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
