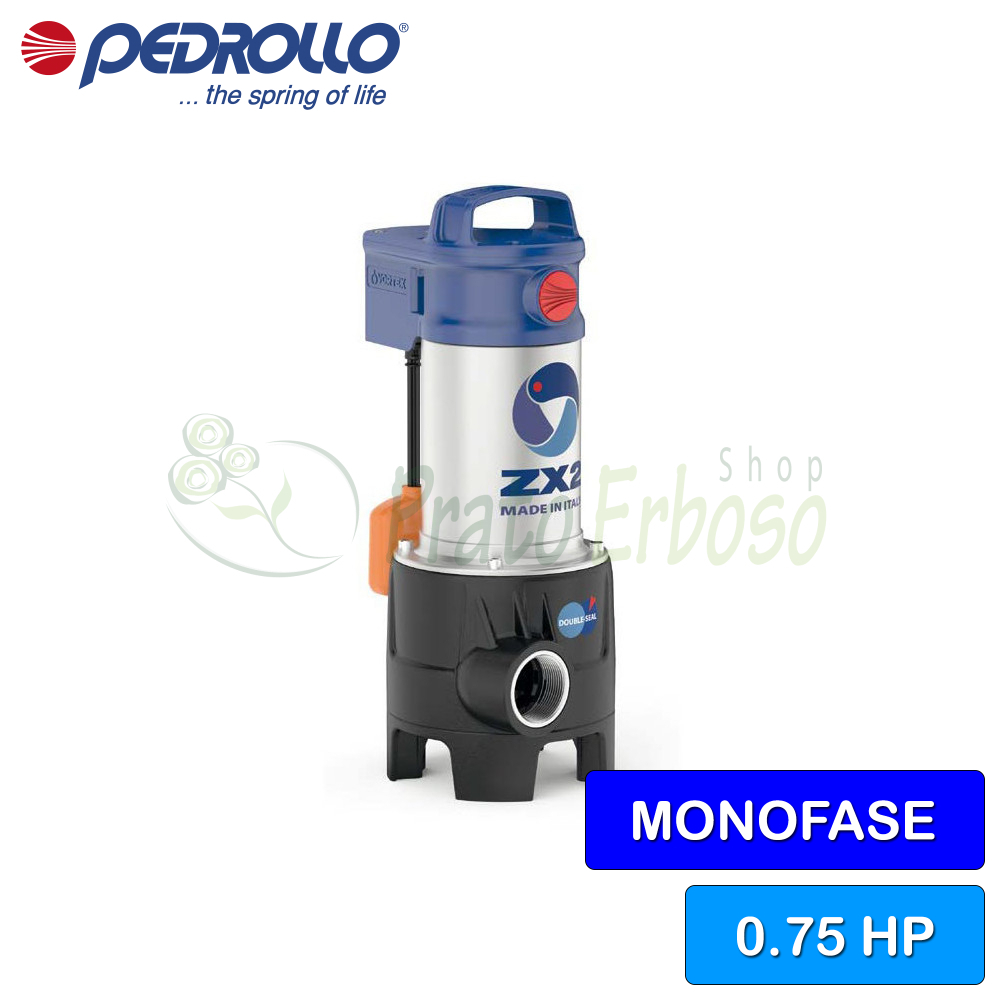

ZXm 2/40-GM (5m) - 0.75 HP VORTEX submersible electric pump for dirty water

Flow rate up to 400 l/min (24 m³/h). Head up to 11.5 m. 0.55 kW (0.75 HP) motor. 5 m cable with Schuko plug.

WITH MAGNETIC FLOAT

€269.60 Tax included

220.98 Tax excluded

€464.82-42%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

ZXm 2/40-GM (5m) - 0.75 HP VORTEX submersible electric pump for dirty water
  • Use dot instead of comma

Loading

Description

The ZXm 2/40-GM submersible electric pump from the ZXm 2-GM series is useful for the evacuation of dirty water.

Recommended for draining wastewater containing solids up to 40 millimetres in diameter.

The vortex impeller, with which the ZXm 2/40-GM is equipped, guarantees safe operation against clogging thanks to its geometry.

It can be installed up to 5 meters below the water level. For continuous operation, the ZXm 2/40-GM requires a minimum immersion depth of 275 mm.

The electric pump is solid, robust, and built to last thanks to the use of cast iron and stainless steel.

The magnetic float allows installation even in small spaces.

Data sheet
Brand Pedrollo
Reference ZXm 2/40-GM 5MT
In stock 7 Items
Motor connection
SINGLE-PHASE
Power (Kw)
0.55
Power (HP)
0.75
Absorption at 230V (A)
4
Capacitor
20 µF 450 VL
Delivery mouth
1" 1/2
Pump body
Technopolymer
Impeller
Technopolymer
Number of impellers
1
Crankshaft
AISI 431 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
25
Max. flow rate (l./min.)
400
Min. head (m.)
2
Max. head (m.)
11.5
Cable length (m.)
5
Jobs
slightly dirty waters
Max. liquid temperature (°C)
+40°C
Height (cm)
42.2
Width (cm)
17.1
Weight (Kg)
10.8
Warranty (years)
2
Attachments

ZX2-GM data sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo ZX2-GM series pumps.

Download (720.32KB)

ZX2-GM models and performance

GUY
single phase
ZXm 2/30-GM
ZXm 2/40-GM
POWER
KWHP
0.550.75
0.550.75

Construction data of the ZXm 2/30-GM-

Bearings
Pump side motor bearing6203 ZZ
Opposite side engine bearing6203 ZZ
Tree holding
Type of sealDouble mechanical seal in oil chamber
LM diameter14
LM fixed ringSilicon carbide
LM rotating ringGraphite
LM elastomerNBR
Shrinkage DN1=450 DN2=350MG1-14D SIC
LP diameter14
LP fixed ringSilicon carbide
LP rotating ringSilicon carbide
LP elastomerNBR
Materials
1.0 - Pump bodyReinforced technopolymer
1.4 - BasicStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4057 (AISI 431)
6.0 - Motor holderStainless steel EN 1.4301 (AISI 304)
6.1 - Engine coverStainless steel EN 1.4301 (AISI 304)
