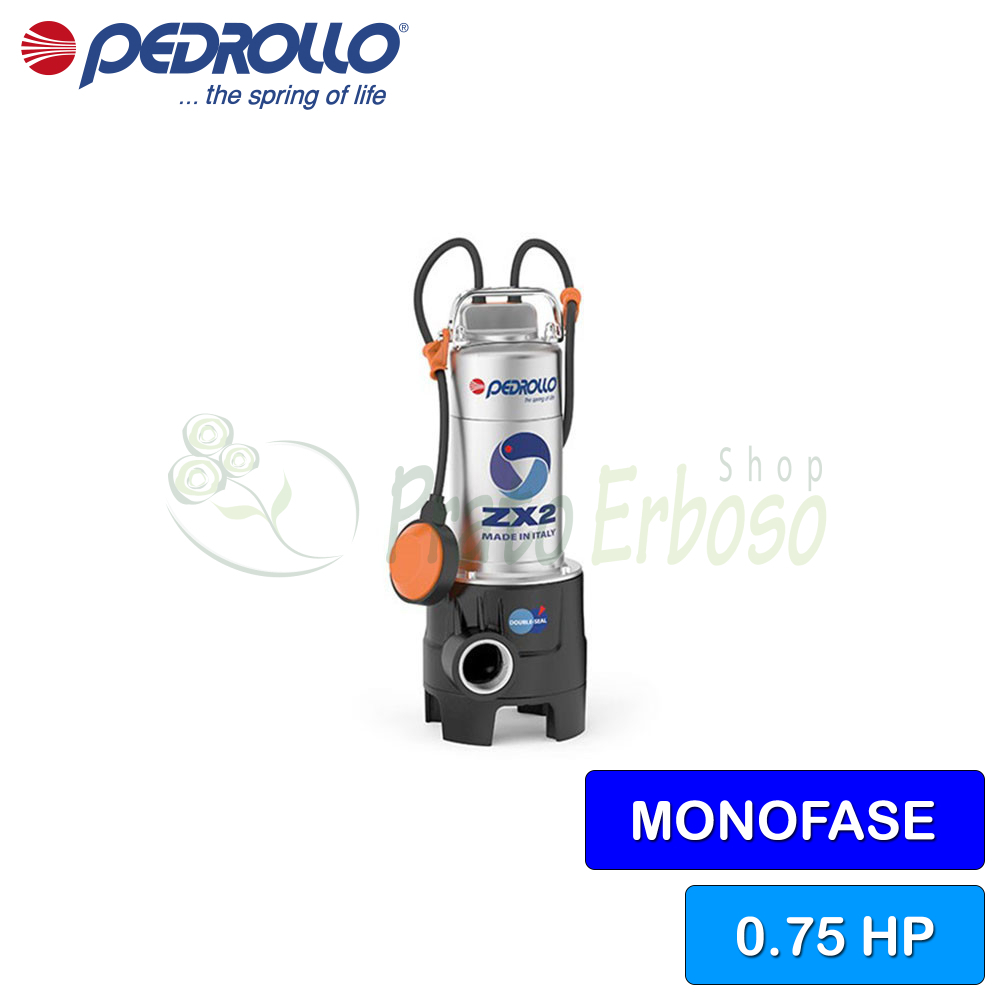

ZXm 2/40 (5m) - 0.75 HP VORTEX submersible electric pump for dirty water
Flow rate up to 400 l/min (24 m³/h). Head up to 11.5 m. 0.55 kW (0.75 HP) motor. 5 m cable with Schuko plug.
The ZXm 2/40 submersible electric pump from the ZXm 2 series is useful for the evacuation of dirty water.
Recommended for draining wastewater containing solids up to 40 millimetres in diameter.
The vortex impeller, with which the ZXm 2/40 is equipped, guarantees safe operation against clogging thanks to its geometry.
It can be installed up to 5 meters below the water level. For continuous operation, the ZXm 2/40 requires a minimum immersion depth of 275 mm.
The electric pump is solid, robust, and built to last thanks to the use of cast iron and stainless steel.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 2
- Max. head (m.)
- 11.5
- Cable length (m.)
- 5
- Jobs
- slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.2
- Width (cm)
- 17.1
- Weight (Kg)
- 10.8
- Warranty (years)
- 2
Models and performance ZX2
|
|
|
|
| |||||||||||||||||||||||||||
Construction data of the ZXm 2/30

Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
