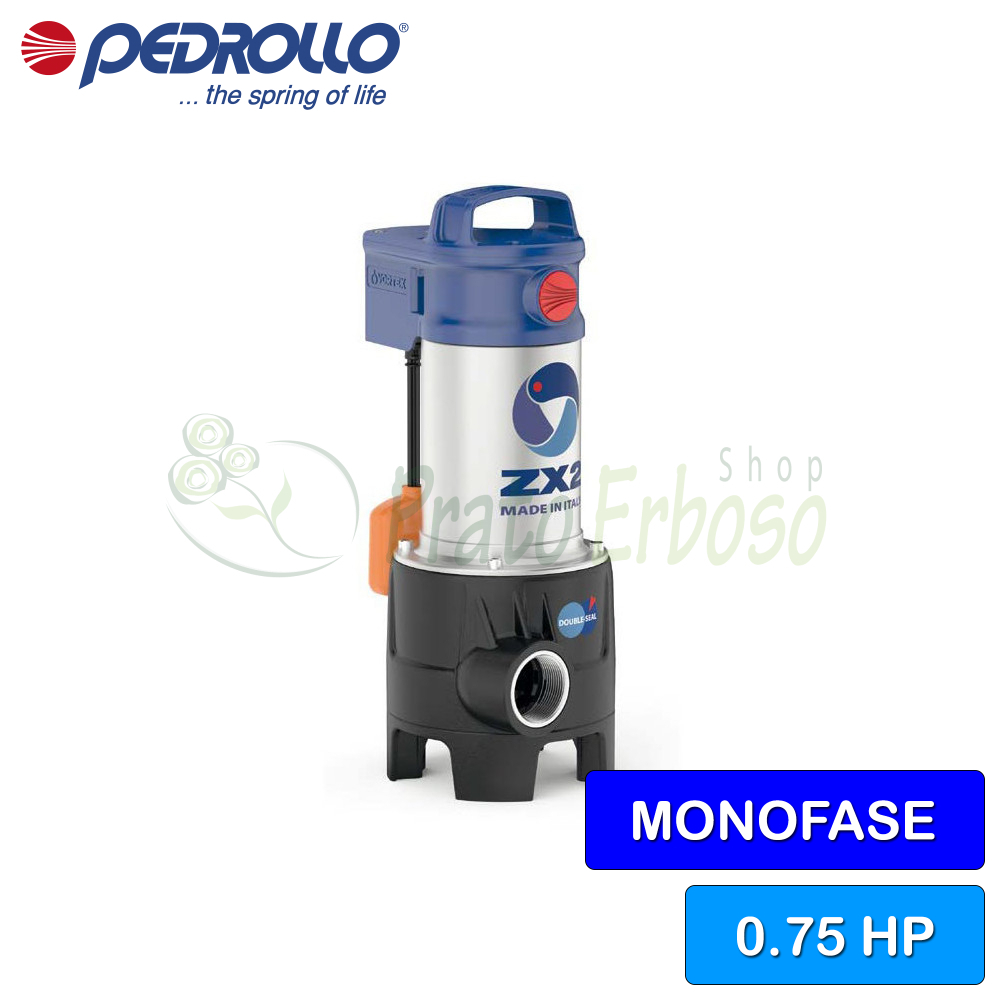

ZXm 2/30-GM (5m) - 0.75 HP VORTEX submersible electric pump for dirty water
Flow rate up to 320 l/min (19.2 m³/h). Head up to 13 m. 0.55 kW (0.75 HP) motor. 5-meter cable with Schuko plug.
WITH MAGNETIC FLOAT
The ZXm 2/30-GM submersible electric pump from the ZXm 2-GM series by Pedrollo guarantees great performance, quality and durability.
Recommended for draining dirty water containing solids up to 30 millimetres in diameter.
Suitable for domestic and civil installations for the evacuation of waste water.
The ZXm 2/30-GM is equipped with a vortex impeller which, thanks to its particular geometry, guarantees safe operation against clogging.
Pedrollo created the product with materials such as technopolymer and AISI 304 and 431 stainless steel for a solid and robust result.
The magnetic float allows installation even in small spaces.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 320
- Min. head (m.)
- 2
- Max. head (m.)
- 13
- Cable length (m.)
- 5
- Jobs
- slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 41.2
- Width (cm)
- 17.1
- Weight (Kg)
- 10.8
- Warranty (years)
- 2
ZX2-GM models and performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the ZXm 2/30-GM-

Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
