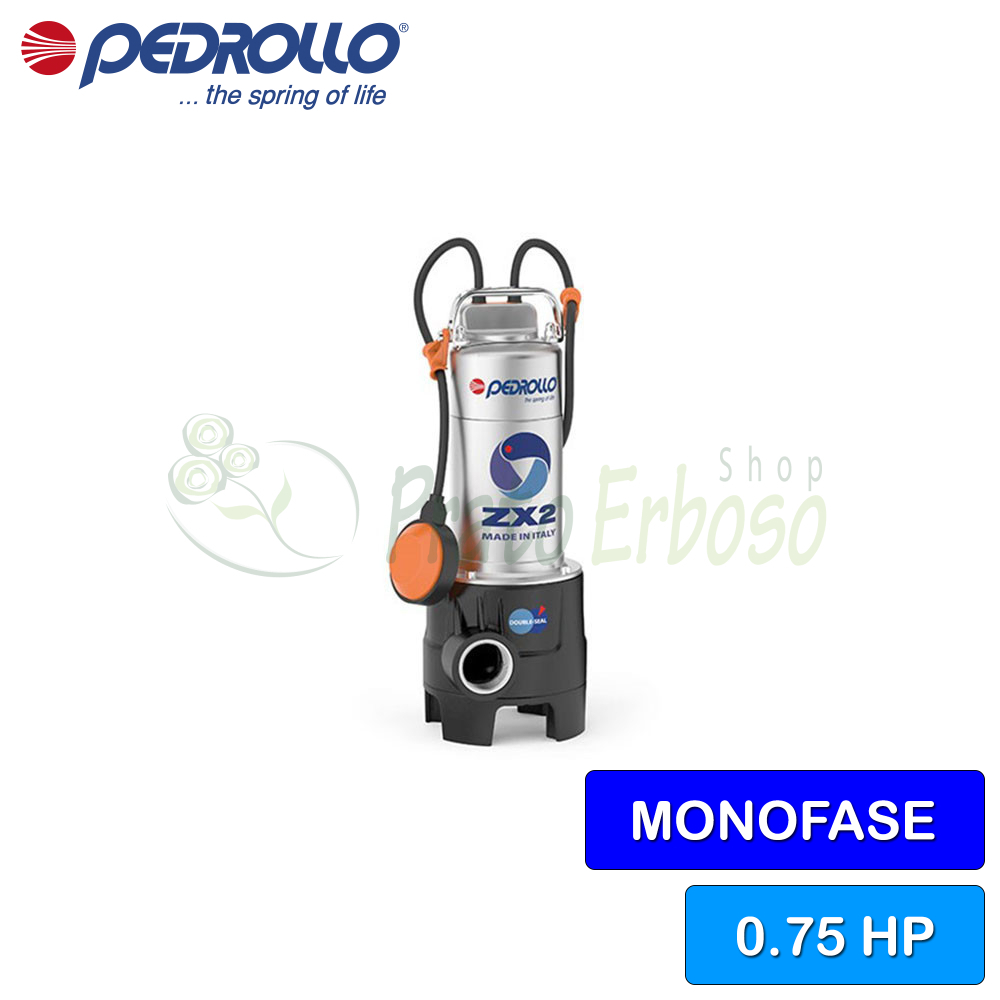

ZXm 2/30 (5m) - 0.75 HP VORTEX submersible electric pump for dirty water

Flow rate up to 320 l/min (19.2 m³/h). Head up to 13 m. 0.55 kW (0.75 HP) motor. 5-meter cable with Schuko plug.

€251.20 Tax included

205.9 Tax excluded

€433.10-42%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

ZXm 2/30 (5m) - 0.75 HP VORTEX submersible electric pump for dirty water
  • Use dot instead of comma

Loading

Description

The ZXm 2/30 submersible electric pump from the ZXm 2 series by Pedrollo guarantees great performance, quality and durability.

Recommended for draining dirty water containing solids up to 30 millimetres in diameter.

Suitable for domestic and civil installations for the evacuation of waste water.

The ZXm 2/30 is equipped with a vortex impeller which, thanks to its particular geometry, guarantees safe operation against clogging.

Pedrollo created the product with materials such as technopolymer and AISI 304 and 431 stainless steel for a solid and robust result.

Data sheet
Brand Pedrollo
Reference ZXm 2/30 5MT
In stock 9 Items
Motor connection
SINGLE-PHASE
Power (Kw)
0.55
Power (HP)
0.75
Absorption at 230V (A)
4
Capacitor
20 µF 450 VL
Delivery mouth
1" 1/2
Pump body
Technopolymer
Impeller
Technopolymer
Number of impellers
1
Crankshaft
AISI 431 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
25
Max. flow rate (l./min.)
320
Min. head (m.)
2
Max. head (m.)
13
Cable length (m.)
5
Jobs
slightly dirty waters
Max. liquid temperature (°C)
+40°C
Height (cm)
41.2
Width (cm)
17.1
Weight (Kg)
10.8
Warranty (years)
2
Attachments

ZXm 2 Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's ZX2 VORTEX series pumps.

Download (1.61MB)

Models and performance ZX2

GUY
single phase
ZXm 2/30
ZXm 2/40
POWER
KWHP
0.550.75
0.550.75

Construction data of the ZXm 2/30

ZX2 pump cutaway
Bearings
Pump side motor bearing6203 ZZ
Opposite side engine bearing6203 ZZ
Tree holding
Type of sealDouble mechanical seal in oil chamber
LM diameter14
LM fixed ringSilicon carbide
LM rotating ringGraphite
LM elastomerNBR
Shrinkage DN1=450 DN2=350MG1-14D SIC
LP diameter14
LP fixed ringSilicon carbide
LP rotating ringSilicon carbide
LP elastomerNBR
Materials
1.0 - Pump bodyReinforced technopolymer
1.4 - BasicStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4057 (AISI 431)
6.0 - Motor holderStainless steel EN 1.4301 (AISI 304)
6.1 - Engine coverStainless steel EN 1.4301 (AISI 304)
