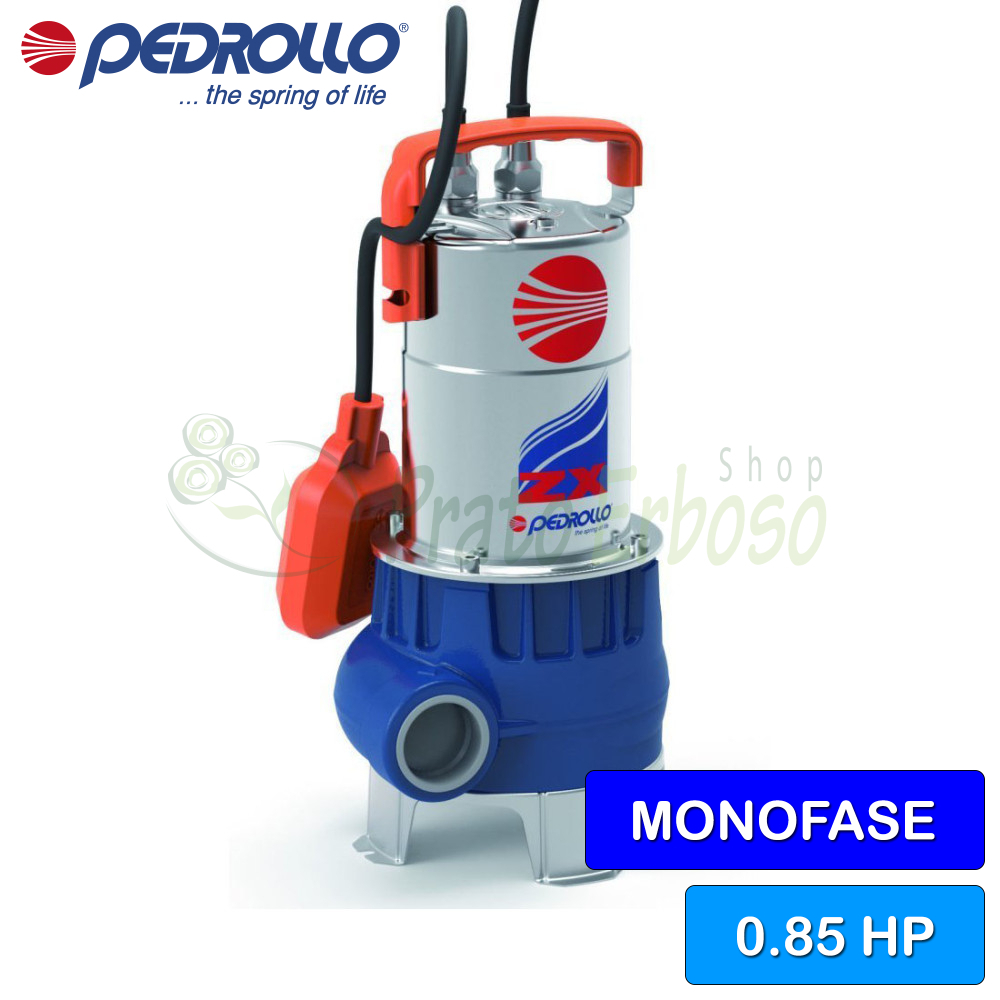

ZXm 1A/40 (5m) - 0.85 HP VORTEX submersible electric pump for dirty water
Flow rate up to 400 l/min (24 m³/h). Head up to 11 m. 0.60 kW (0.85 HP) motor. 5-meter cable with Schuko plug.
The ZXm 1A/40 submersible electric pump from the ZXm 1 series by Pedrollo stands out for its ease of use and reliability.
Suitable for draining dirty water containing suspended solids up to 40 millimetres in size.
Recommended for domestic installations, especially for wastewater disposal and for fixed, automatic installations.
The ZXm 1A/40 can be installed up to 5 meters below the water level. For continuous operation, it requires a minimum immersion depth of 240 mm.
Pedrollo has created a solid and robust product thanks to the use of cast iron and AISI 304 and 431 stainless steel.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 0.85
- Absorption at 230V (A)
- 4.5
- Capacitor
- 16 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 1.5
- Max. head (m.)
- 11
- Cable length (m.)
- 5
- Jobs
- drainage
drying up
slightly dirty waters - Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 37.8
- Weight (Kg)
- 12
- Warranty (years)
- 2
ZX1 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the ZX 1B/40

Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | DC04 EN 10130 steel |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
