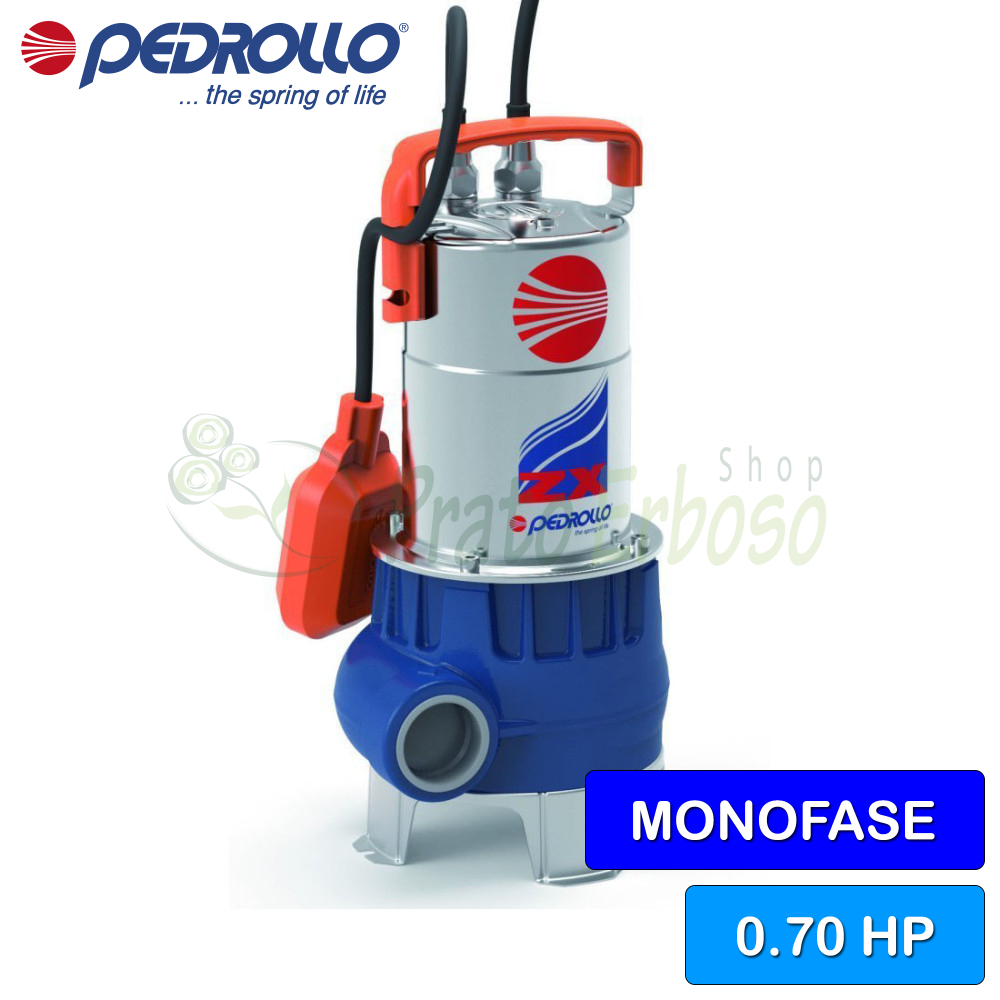

ZXm 1B/40 (10m) - 0.70 HP VORTEX submersible electric pump for dirty water

Flow rate up to 350 l/min (21 m³/h). Head up to 9 m. 0.50 kW (0.70 HP) motor. 10-meter cable with Schuko plug.

€263.23 Tax included

215.76 Tax excluded

€453.84-42%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

ZXm 1B/40 (10m) - 0.70 HP VORTEX submersible electric pump for dirty water
  • Use dot instead of comma

Loading

Description

The ZXm 1B/40 submersible electric pump from the ZXm 1 series by Pedrollo is suitable for fixed installations with automatic operation.

Recommended for domestic installations, for the evacuation of waste water, even in the presence of suspended solids with dimensions up to 40 millimetres.

It can be installed up to 5 meters below the water level. For continuous operation, it requires a minimum immersion depth of 240 mm.

Pedrollo has created a solid and robust product thanks to the use of cast iron and AISI 304 and 431 stainless steel.

The ZXm 1B/40 stands out for its ease of use and reliability.

Data sheet
Brand Pedrollo
Reference ZXm 1B/40 10MT
In stock 10 Items
Motor connection
SINGLE-PHASE
Power (Kw)
0.55
Power (HP)
0.70
Absorption at 230V (A)
3.3
Capacitor
12.5 µF 450 VL
Delivery mouth
1" 1/2
Pump body
Cast iron
Impeller
Technopolymer
Number of impellers
1
Crankshaft
AISI 431 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
25
Max. flow rate (l./min.)
350
Min. head (m.)
1
Max. head (m.)
9
Cable length (m.)
10
Jobs
drainage
drying up
slightly dirty waters
Max. liquid temperature (°C)
+40°C
Height (cm)
37.8
Weight (Kg)
11.6
Warranty (years)
2
Attachments

ZXm 1 datasheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo ZX VORTEX series pumps.

Download (1.34MB)

ZX1 models and performance

GUY
single phase
ZXm 1B/40
ZXm 1A/40
POWER
KWHP
0.500.70
0.600.85

Construction data of the ZX 1B/40

ZX pump cutaway
Bearings
Pump side motor bearing6201 ZZ
Opposite side engine bearing6201 ZZ
Tree holding
Type of sealDouble Seal: Mechanical and Lip with oil chamber
Engine side modelLip seal
LM diameter12
LM elastomerNBR
Shrinkage DN1=450 DN2=350STA-12R
LP diameter12
LP fixed ringCeramic
LP rotating ringGraphite
LP elastomerNBR
Materials
1.0 - Pump bodyReinforced technopolymer
1.4 - BasicStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4057 (AISI 431)
6.0 - Motor holderDC04 EN 10130 steel
6.1 - Engine coverStainless steel EN 1.4301 (AISI 304)
