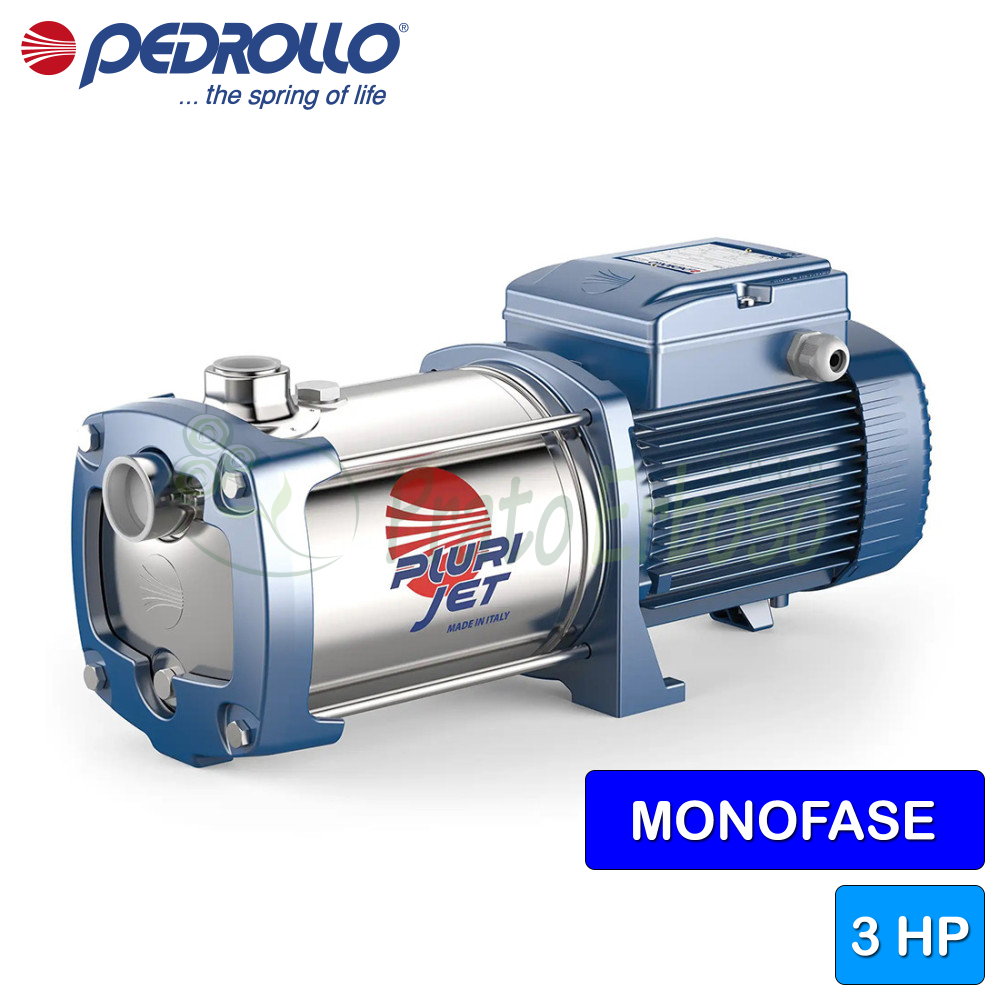

PLURIJETm 6/200 - 3 HP single-phase self-priming multi-impeller electric pump

Flow rate up to 200 l/min (12.0 m³/h). Head up to 87 m. 2.2 Kw (3 HP) motor.

€680.71 Tax included

557.96 Tax excluded

€1,173.64-42%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

PLURIJETm 6/200 - 3 HP single-phase self-priming multi-impeller electric pump
  • Use dot instead of comma

Loading

Description

The PLURIJETm 6/200 self-priming electric pump by Pedrollo is recommended for pumping clean water.

Recommended for sucking clean water even in the presence of air mixed with the pumped liquid and liquids that are chemically non-aggressive for the materials making up the pump.

The flow rate ranges from 5 to 200 liters per minute. The head ranges from 26 to 87 meters.

It must be powered by a single-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to 60.

The PLURIJETm 6/200 is equipped with stainless steel impellers which are the best and most effective solution to satisfy domestic needs, thanks to their reliability, silence and low operating costs.

Data sheet
Brand Pedrollo
Reference PLURIJETm 6/200
In stock 46 Items
MPN 43PJDI30068A1
Motor connection
SINGLE-PHASE
Power (Kw)
2.2
Power (HP)
3
Suction mouth
1" 1/4
Delivery mouth
1"
Pump body
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
6
Crankshaft
Stainless steel EN 10088-3 1.4104
Check valve
No
Degree of protection
IP 44
Minimum flow rate (l./min.)
2
Max. flow rate (l./min.)
200
Min. head (m.)
26
Max. head (m.)
87
Jobs
irrigation
pressurization systems
water supply
Max. liquid temperature (°C)
+60°C
Height (cm)
22.8
Width (cm)
18.5
Depth (cm)
59.5
Weight (Kg)
25.2
Warranty (years)
2
Attachments

PLURIJET 90-130-200 data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PLURIJET 90-130-200 series pumps.

Download (390.87KB)

Models and performances PLURIJETm 90-130-200

TYPE
single phase
PLURIJET 5/90
PLURIJETm 6/90
PLURIJETm 3/130
PLURIJETm 4/130
PLURIJETm 5/130
MULTIJET 3/200
PLURIJETm 4/200
PLURIJETm 5/200
POWER
KWHP
1.11.5
1.52
1.11.5
1.52
1.82.5
1.11.5
1.52
1.82.5
