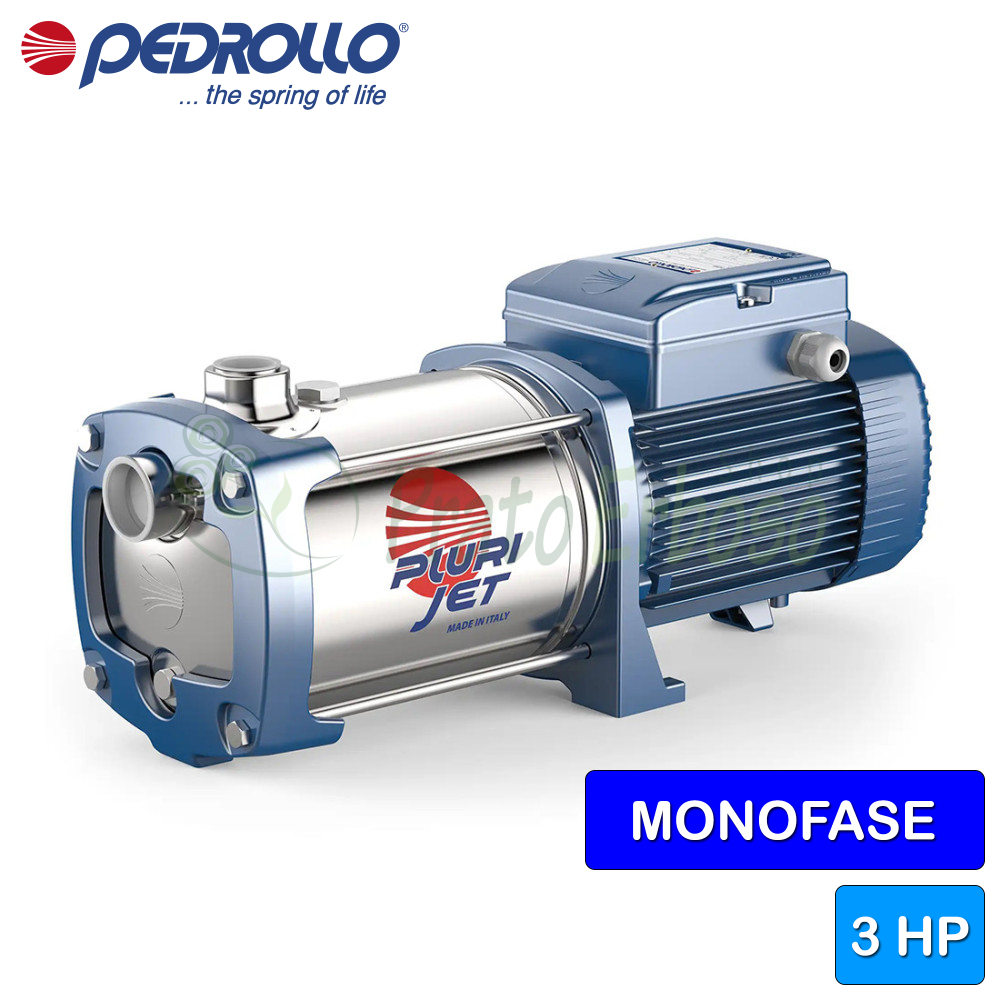

PLURIJETm 6/130 - 3 HP single-phase self-priming multi-impeller electric pump
Flow rate up to 130 l/min (12.0 m³/h). Head up to 97 m. 2.2 Kw (3 HP) motor.
The Pedrollo PLURIJETm 6/130 self-priming electric pump is recommended for pumping clean water.
Recommended for sucking clean water even in the presence of air mixed with the pumped liquid and liquids that are chemically non-aggressive for the materials from which the pump is made.
The flow rate ranges from 5 to 130 liters per minute. The head ranges from 46 to 97 meters.
It must be powered by a single-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to 60.
The PLURIJETm 6/130 is equipped with stainless steel impellers which are the best and most effective solution to meet domestic needs, thanks to their reliability, silence and low operating costs.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 6
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 46
- Max. head (m.)
- 97
- Jobs
- irrigation
pressurization systems
water supply - Max. liquid temperature (°C)
- +60°C
- Height (cm)
- 22.8
- Width (cm)
- 18.5
- Depth (cm)
- 59.5
- Weight (Kg)
- 25.2
- Warranty (years)
- 2
Models and performances PLURIJETm 90-130-200
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
