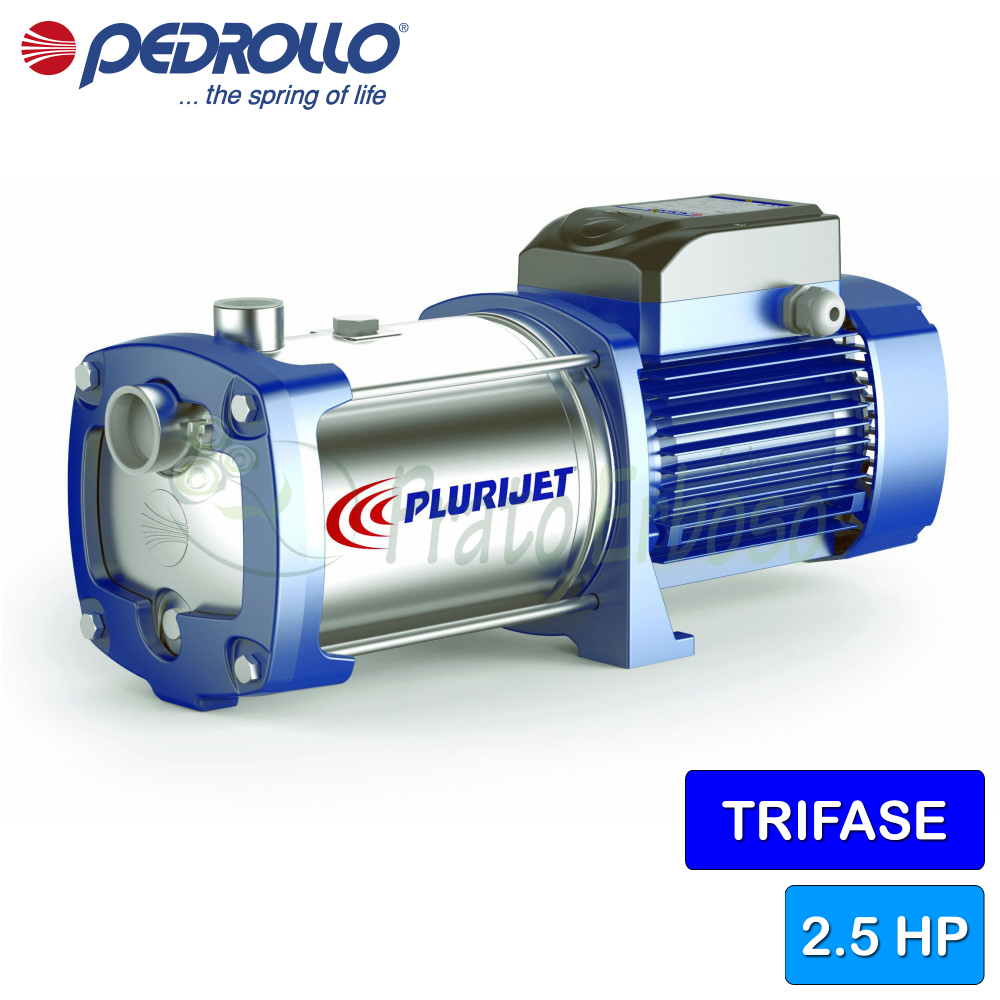

PLURIJET 5/130 - 2.5 HP three-phase self-priming multi-impeller electric pump
Flow rate up to 130 l/min (7.8 m³/h). Head up to 81 m. 1.8 kW (2.5 HP) motor.
Description
The PLURIJET 5/130 self-priming electric pump from the PLURIJET series by Pedrollo guarantees priming up to 9 metres deep.
Pedrollo used AISI 304 and 431 stainless steel for its construction, making the pump robust and resistant.
The stainless steel impellers guarantee reliability, silence and low operating costs.
The PLURIJET 5/130 is recommended for use in civil and domestic applications.
Suitable for pressurizing and distributing water in conjunction with pressure tanks, for rainwater recovery and for irrigation systems.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.8
- Power (HP)
- 2.5
- Absorption at 230V (A)
- 8.7
- Current consumption at 400V (A)
- 5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 5
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 39
- Max. head (m.)
- 81
- Jobs
- irrigation
pressurization systems
water supply - Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 22.8
- Width (cm)
- 54.9
- Depth (cm)
- 24.5
- Weight (Kg)
- 21.9
- Warranty (years)
- 2
Models and performances PLURIJET 90-130-200
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PLURIJET 90-130-200

Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side engine bearing | 6204 ZZ-C3E |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | PTFE |
| 6.0 - Motor carrier | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
