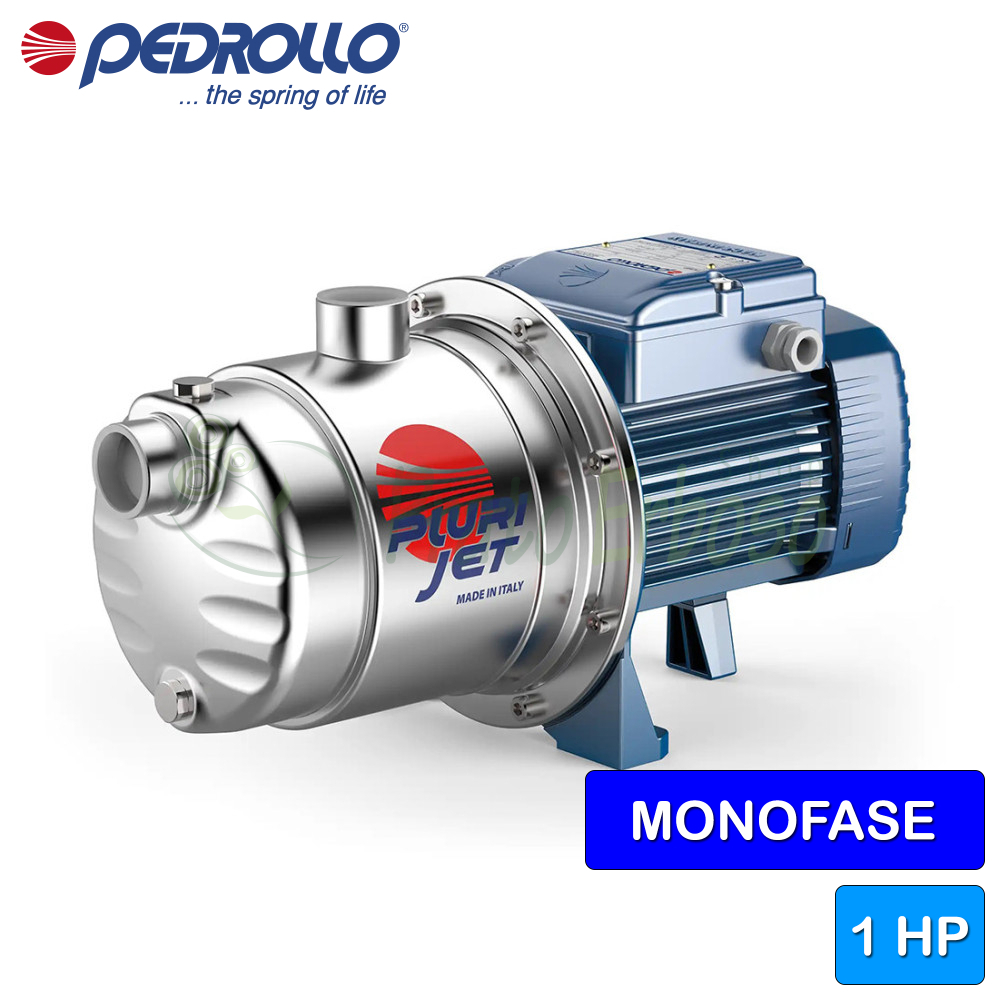

PLURIJETm 4/120 - 1 HP single-phase self-priming multi-impeller electric pump

Flow rate up to 130 l/min (4.8 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor.

€299.31 Tax included

245.34 Tax excluded

€516.06-42%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

PLURIJETm 4/120 - 1 HP single-phase self-priming multi-impeller electric pump
  • Use dot instead of comma

Loading

Description

The PLURIJETm 4/120 self-priming electric pump by Pedrollo is recommended for pumping clean water.

The flow rate ranges from 5 to 130 liters per minute. The head ranges from 5 to 50 meters.

It must be powered by a single-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to 60.

The PLURIJETm 4/120 is equipped with stainless steel impellers which are the best and most effective solution to satisfy domestic needs, thanks to their reliability, silence and low operating costs.

In the domestic environment it is an excellent solution thanks to the excellent suction capacity they are able to guarantee priming up to 9 meters deep.

Featuring multi-cell hydraulics that ensure maximum pressure with minimum power consumption, while reducing turbulence, an inevitable source of noise.

This makes operation extremely quiet.

Data sheet
Brand Pedrollo
Reference PLURIJETm 4/120
In stock 47 Items
MPN 43PJAI10048A1
Motor connection
SINGLE-PHASE
Power (Kw)
0.75
Power (HP)
1
Absorption at 230V (A)
5.8
Suction mouth
1"
Delivery mouth
1"
Pump body
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
4
Crankshaft
Stainless steel EN 10088-3 1.4104
Check valve
No
Degree of protection
IP 44
Minimum flow rate (l./min.)
5
Max. flow rate (l./min.)
130
Min. head (m.)
5
Max. head (m.)
50
Jobs
irrigation
pressurization systems
water supply
Max. liquid temperature (°C)
+60°C
Height (cm)
18.9
Width (cm)
16
Depth (cm)
40.2
Weight (Kg)
12.2
Warranty (years)
2
Attachments

PLURIJET 90-120 technical data

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's PLURIJET 90-120 series pumps.

Download (424.13KB)

Models and performances PLURIJETm 90-120
