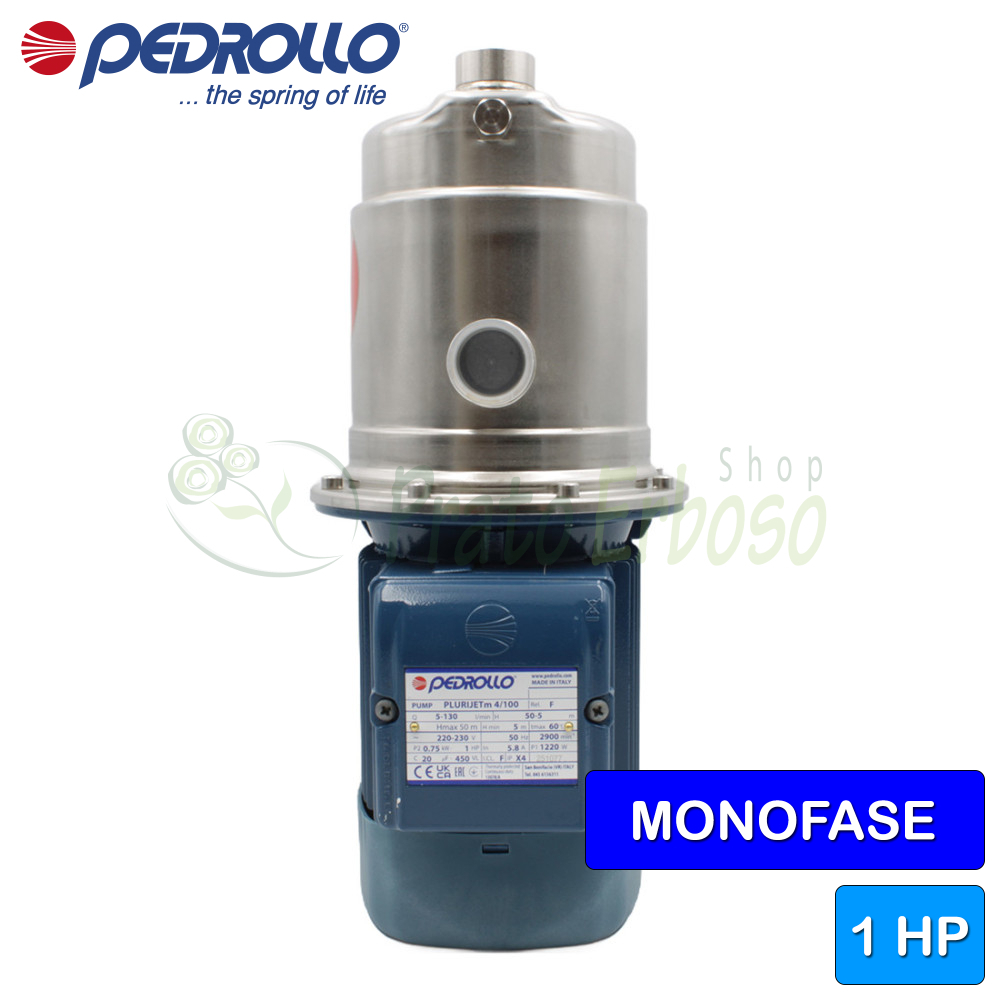

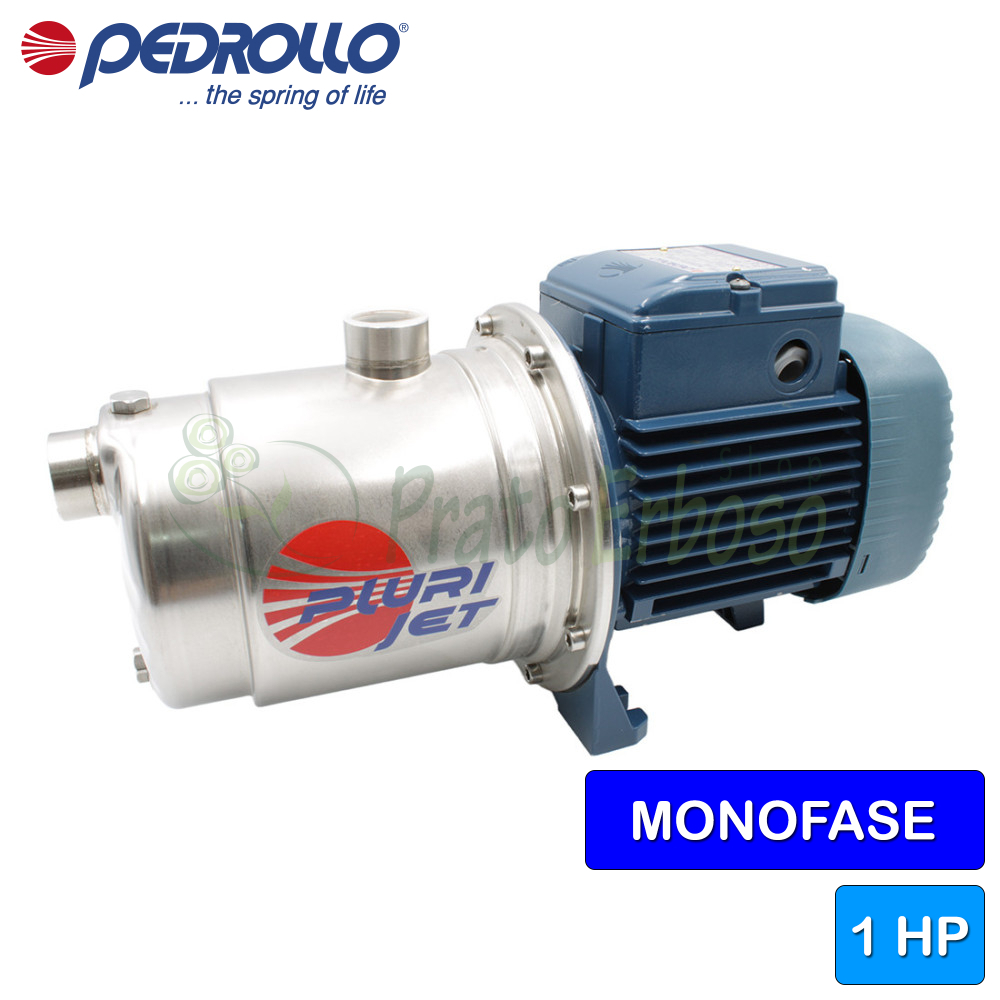

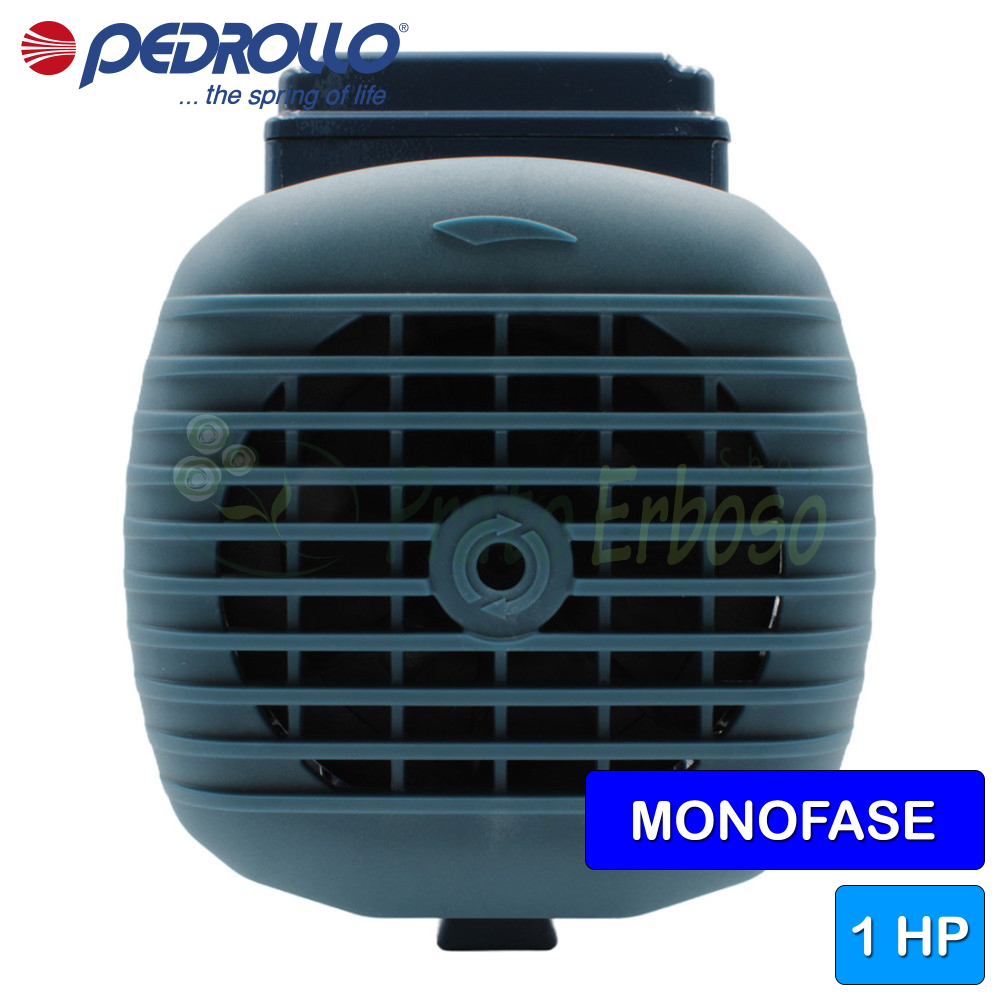

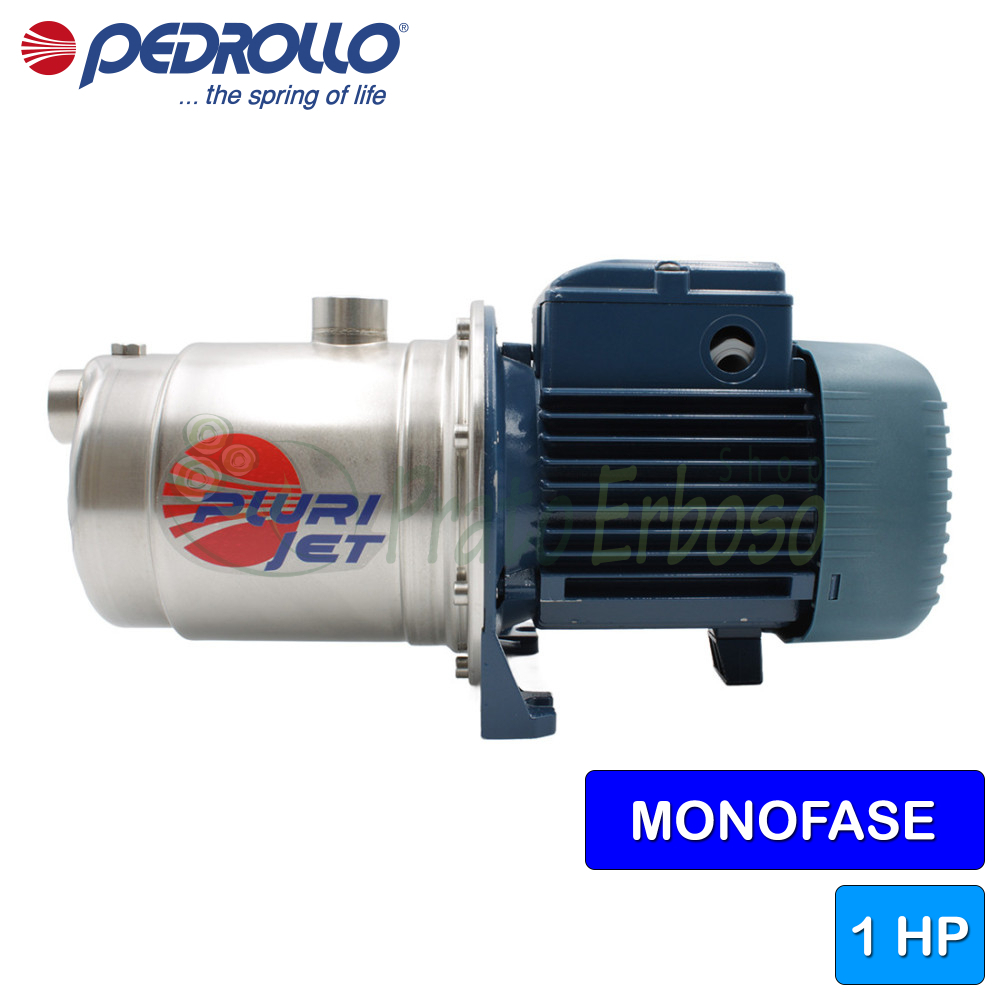

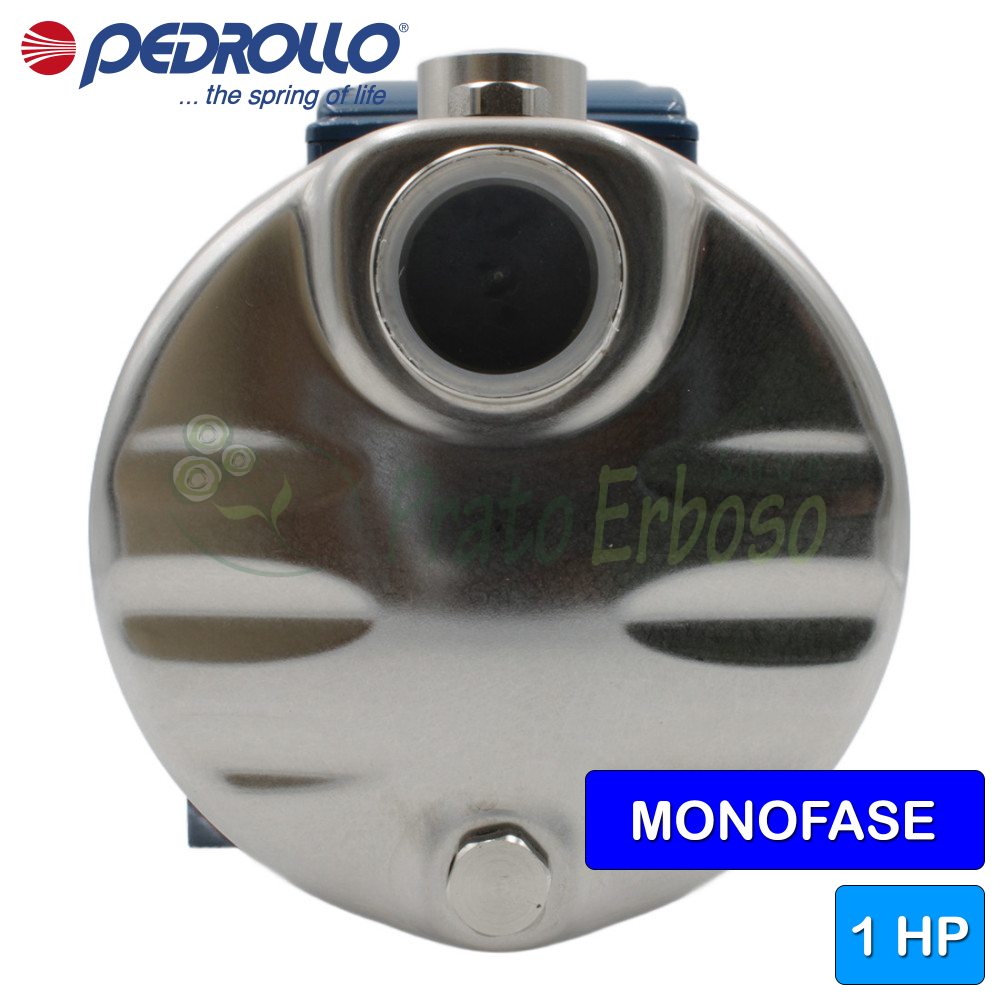

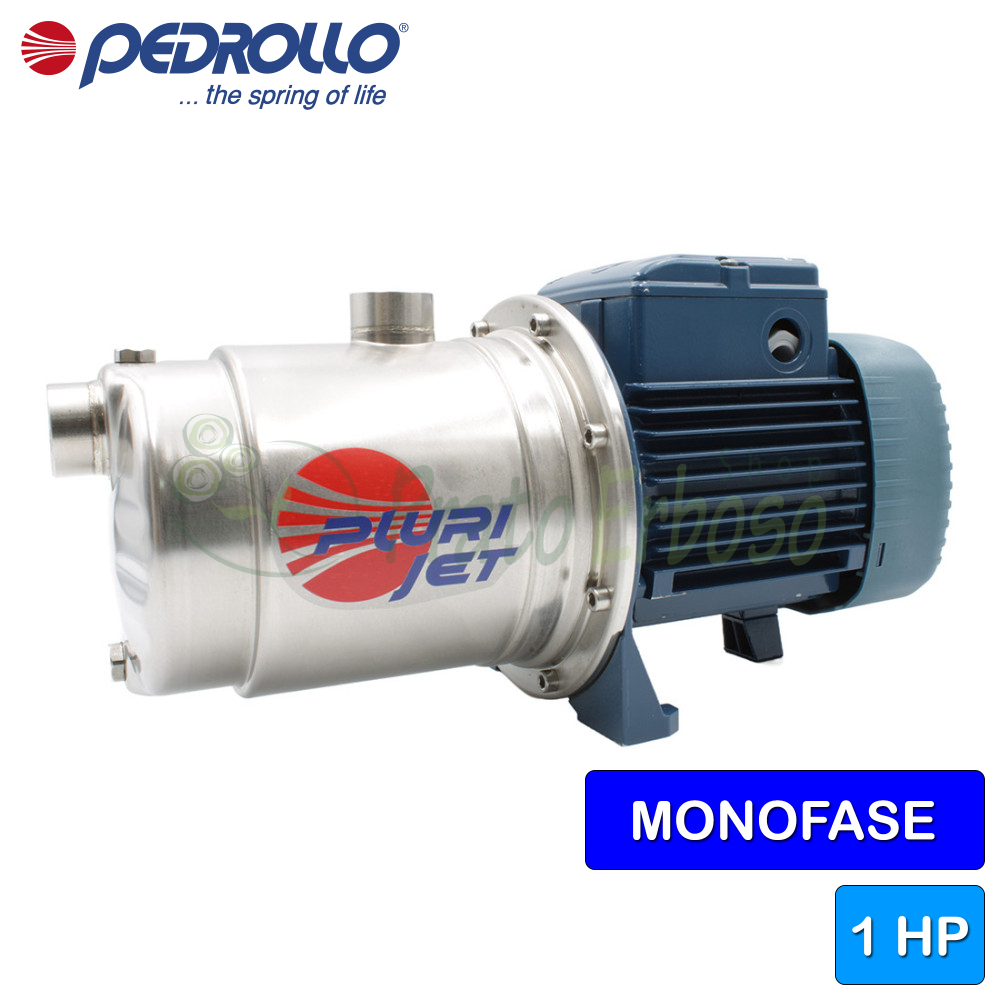

PLURIJETm 4/100 - 1 HP single-phase self-priming multi-impeller electric pump

Flow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor.

€244.12 Tax included

200.1 Tax excluded

€420.90-42%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

PLURIJETm 4/100 - 1 HP single-phase self-priming multi-impeller electric pump
  • Use dot instead of comma

Loading

Description

The PLURIJETm 4/100 self-priming electric pump by Pedrollo is the ideal solution for the domestic sector.

Recommended for sucking clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

Thanks to its excellent suction capacity, it can guarantee priming up to 9 metres deep.

The PLURIJETm 4/100 is particularly recommended for the pressurization and distribution of water in combination with pressure tanks, for the recovery of rainwater, for irrigation systems.

Pedrollo has created this pump with the aim of guaranteeing efficiency, reliability and silence.

Thanks to its high hydraulic efficiency, it significantly reduces electrical consumption compared to self-priming JET pumps, ensuring all the necessary water.

The stainless steel components make the PLURIJETm 4/100 reliable and allow it to last over time.

This self-priming pump is characterized by a multi-cell hydraulics that guarantees maximum pressure with minimum absorbed power, while reducing turbulence, an inevitable source of noise. In this way the electric pump becomes significantly quieter.

Data sheet
Brand Pedrollo
Reference PLURIJETm 4/100
In stock 39 Items
MPN 43PJ10I4A1
Motor connection
SINGLE-PHASE
Power (Kw)
0.75
Power (HP)
1
Absorption at 230V (A)
5.8
Suction mouth
1" 1/4
Delivery mouth
1"
Pump body
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
4
Crankshaft
Stainless steel EN 10088-3 1.4104
Check valve
No
Degree of protection
IP 44
Minimum flow rate (l./min.)
5
Max. flow rate (l./min.)
130
Min. head (m.)
5
Max. head (m.)
50
Jobs
irrigation
pressurization systems
water supply
Max. liquid temperature (°C)
+60°C
Height (cm)
20.2
Width (cm)
18.2
Depth (cm)
41
Weight (Kg)
11.6
Warranty (years)
2
Attachments

PLURIJET 80-100 technical data

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's PLURIJET 80-100 series pumps.

Download (398.31KB)

Models and performances PLURIJETm 80-100
