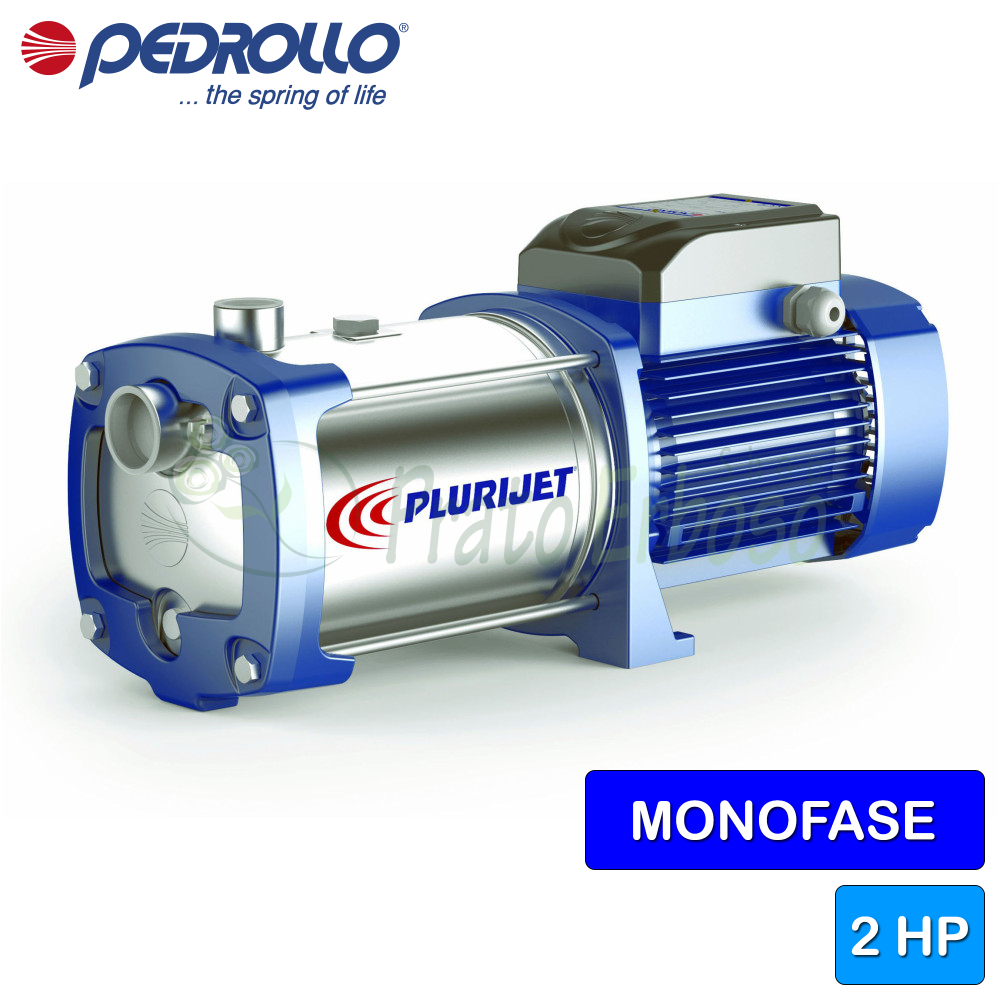

PLURIJETm 6/90 - 2 HP single-phase self-priming multi-impeller electric pump

Flow rate up to 90 l/min (5.4 m³/h). Head up to 96 m. 1.5 Kw (2 HP) motor.

€619.86 Tax included

508.08 Tax excluded

€1,068.72-42%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

PLURIJETm 6/90 - 2 HP single-phase self-priming multi-impeller electric pump
  • Use dot instead of comma

Loading

Description

The PLURIJETm 6/90 self-priming electric pump from the PLURIJET series by Pedrollo is silent, reliable and economical.

These features make it suitable for domestic use but it also guarantees good performance in civil installations.

In particular, the PLURIJETm 6/90 is recommended for the pressurization and distribution of water in combination with pressure tanks, for the recovery of rainwater, for irrigation systems.

The pump is versatile thanks to its excellent suction capacity which can guarantee priming up to 9 metres deep.

Pedrollo used a mix of AISI 304 and 431 stainless steel in its construction, giving the pump solidity and resistance.

Data sheet
Brand Pedrollo
Reference PLURIJETm 6/90
In stock 12 Items
MPN 43PJBI30068A1
Motor connection
SINGLE-PHASE
Power (Kw)
1.1
Power (HP)
2
Absorption at 230V (A)
10.5
Capacitor
45 µF 450 VL
Suction mouth
1" 1/4
Delivery mouth
1"
Pump body
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
6
Crankshaft
Stainless steel EN 10088-3 1.4104
Check valve
No
Degree of protection
IP 44
Minimum flow rate (l./min.)
5
Max. flow rate (l./min.)
90
Min. head (m.)
45
Max. head (m.)
96
Jobs
irrigation
pressurization systems
water supply
Max. liquid temperature (°C)
+40°C
Height (cm)
22.8
Width (cm)
57.5
Depth (cm)
18.5
Weight (Kg)
22.7
Warranty (years)
2
Attachments

PLURIJET 90-130-200 data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PLURIJET 90-130-200 series pumps.

Download (390.87KB)

Models and performances PLURIJETm 90-130-200

TYPE
single phase
PLURIJET 5/90
PLURIJETm 6/90
PLURIJETm 3/130
PLURIJETm 4/130
PLURIJETm 5/130
MULTIJET 3/200
PLURIJETm 4/200
PLURIJETm 5/200
POWER
KWHP
1.11.5
1.52
1.11.5
1.52
1.82.5
1.11.5
1.52
1.82.5

Construction data of the PLURIJET 90-130-200

Plurijet 90 cutaway
Bearings
Pump side motor bearing6304 2RS-C3
Opposite side engine bearing6204 ZZ-C3E
Tree holding
Type of sealSingle Mechanical Seal
Shrinkage DN1=450 DN2=350FN-18
LP diameter18
LP fixed ringGraphite
LP rotating ringCeramic
LP elastomerNBR
Materials
1.0 - Pump bodyStainless steel EN 1.4301 (AISI 304)
2.1 - Seal holder coverStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerStainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaftStainless steel EN 1.4057 (AISI 431)
5.1 - DiffuserStainless steel EN 1.4301 (AISI 304)
5.2 - Wear ringPTFE
6.0 - Motor carrierEN-AB 46100 aluminium
7.0 - LanternEN-AB 46100 aluminium
