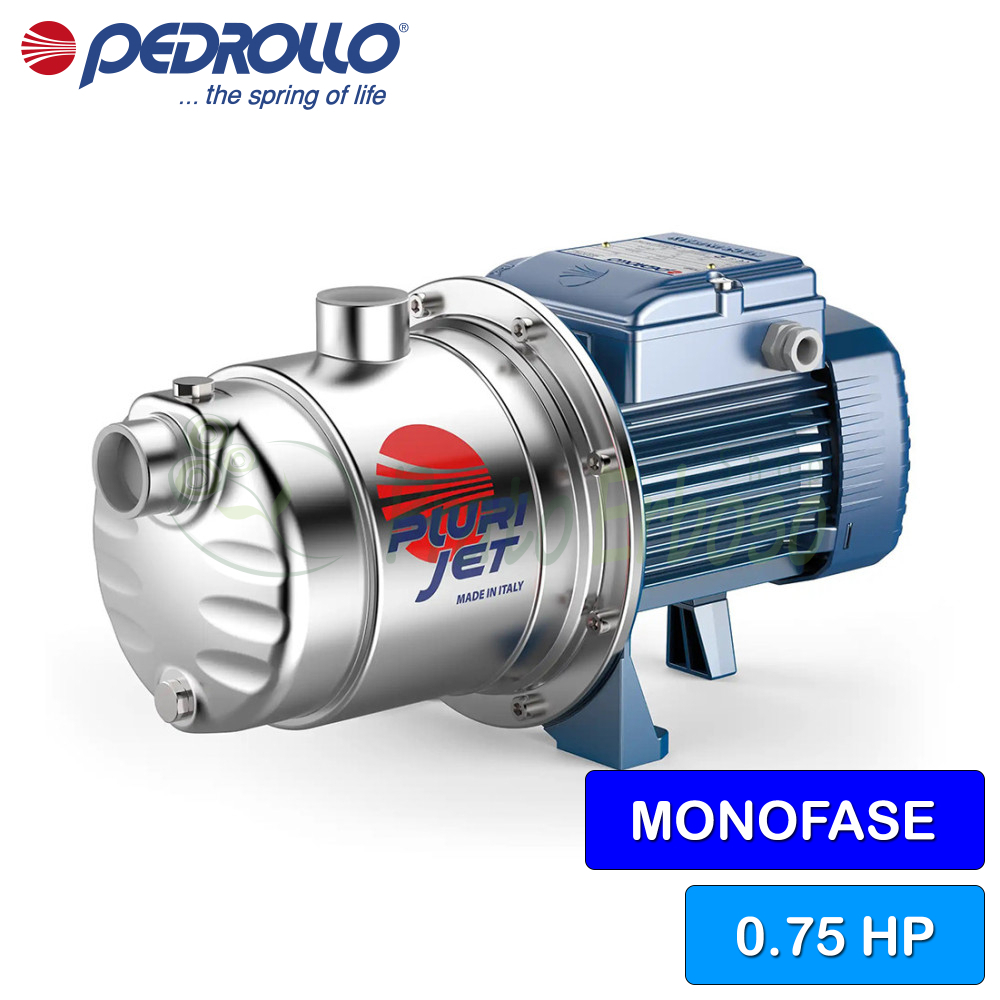

PLURIJETm 4/90 - 0.75 HP single-phase self-priming multi-impeller electric pump

Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.55 Kw (0.75 HP) motor.

€271.01 Tax included

222.14 Tax excluded

€467.26-42%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

PLURIJETm 4/90 - 0.75 HP single-phase self-priming multi-impeller electric pump
  • Use dot instead of comma

Loading

Description

The PLURIJETm 4/90 self-priming electric pump by Pedrollo is the ideal solution for a versatile, efficient, resistant and silent pump.

Recommended for sucking clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The PLURIJETm 4/90 is recommended for use in the domestic sector, particularly for the pressurization and distribution of water in combination with pressure tanks, for the recovery of rainwater and for irrigation systems.

The flow rate ranges from 5 to 80 liters per minute. The head ranges from 5 to 38 meters.

It must be powered by a single-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to 60.

The PLURIJETm 4/90 pump is versatile thanks to its excellent suction capacity which can guarantee priming up to 9 metres deep.

It can significantly reduce electricity consumption while still ensuring sufficient water quantity.

Stainless steel components ensure reliability and durability over time.

The PLURIJETm 4/90 is ideal for the domestic sector thanks to the fact that it is very quiet. Characterized by a multicellular hydraulic system that guarantees maximum pressure with minimum absorbed power, while reducing turbulence, an inevitable source of noise.

Data sheet
Brand Pedrollo
Reference PLURIJETm 4/90
In stock 50 Items
MPN 43PJAI07048A1
Motor connection
SINGLE-PHASE
Power (Kw)
0.55
Power (HP)
0.75
Absorption at 230V (A)
3.9
Suction mouth
1"
Delivery mouth
1"
Pump body
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
4
Crankshaft
Stainless steel EN 10088-3 1.4104
Check valve
No
Degree of protection
IP 44
Minimum flow rate (l./min.)
5
Max. flow rate (l./min.)
80
Min. head (m.)
10
Max. head (m.)
52
Jobs
irrigation
pressurization systems
water supply
Max. liquid temperature (°C)
+60°C
Height (cm)
17.1
Width (cm)
16
Depth (cm)
38.3
Weight (Kg)
9.7
Warranty (years)
2
Attachments

PLURIJET 90-120 technical data

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's PLURIJET 90-120 series pumps.

Download (424.13KB)

Models and performances PLURIJETm 90-120
