CB2 - HT 15/4 - Three-phase pressure group 2x7.5 HP

2 x 5.5 kW (2 x 7.5 HP) motor. Flow rate up to 800 l/min (48 m³/h). Head up to 96 m.

€4,170.94 Tax included

3418.8 Tax excluded

€7,583.52-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HT 15/4 - Three-phase pressure group 2x7.5 HP
  • Use dot instead of comma

Loading

Description

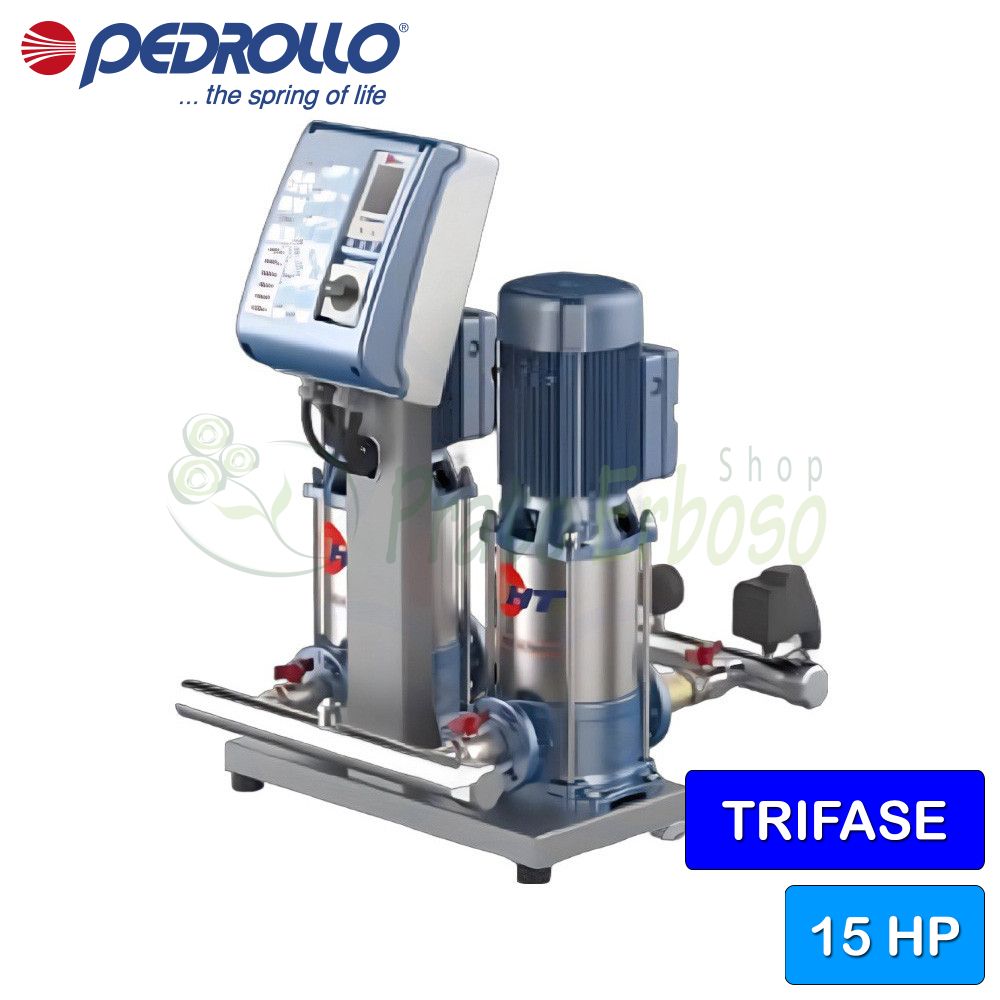

The Pedrollo CB2 - HT 15/4 pressure booster set is suitable for residential and commercial water supply, for irrigation and for the movement of clean water in general, including in the industrial field.

Consisting of two HT 15/4 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.

The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.

The E2 control panel provides protection against dry running.

The CB2 - HT 15/4 pressure group has a flow rate ranging from 100 to 800 litres per minute and a head from 36 to 96 metres.

Data sheet
Brand Pedrollo
Reference CB2 - HT 15/4
In stock 50 Items
MPN KCHT1154A
Motor connection
THREE-PHASE
Power (Kw)
11
Power (HP)
15
Current consumption at 400V (A)
22.4
Suction mouth
3"
Delivery mouth
3"
Minimum flow rate (l./min.)
100
Max. flow rate (l./min.)
800
Min. head (m.)
36
Max. head (m.)
96
Height (cm)
67.4
Width (cm)
70.0
Depth (cm)
99.3
Weight (Kg)
187
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)
