CB2 - HT 15/3 - Three-phase pressure group 2x5.5 HP

2 x 4 kW (2 x 5.5 HP) motors. Flow rate up to 800 l/min (48 m³/h). Head up to 72 m.

€4,001.84 Tax included

3280.2 Tax excluded

€7,276.08-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HT 15/3 - Three-phase pressure group 2x5.5 HP
  • Use dot instead of comma

Loading

Description

The Pedrollo CB2 - HT 15/3 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the pumps.

Recommended for residential and commercial water supply, irrigation and for the movement of clean water in general, including in industrial applications.

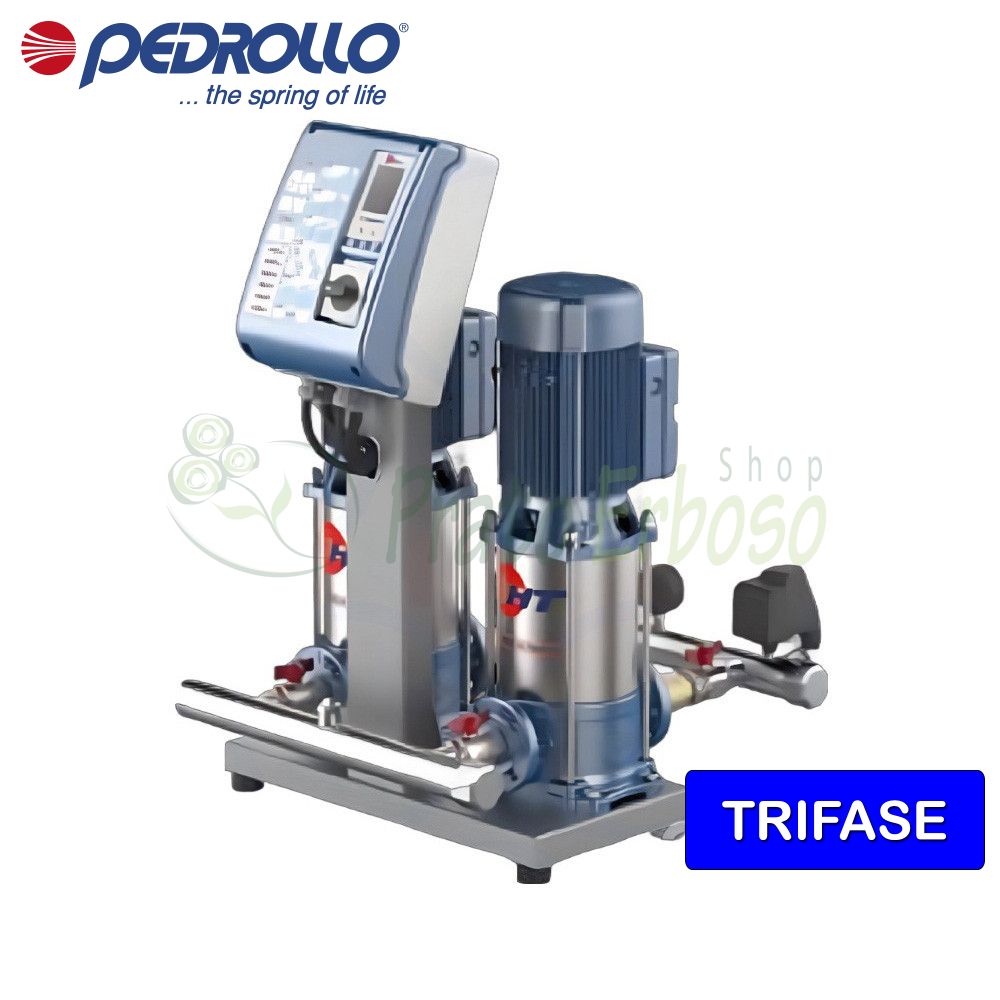

The CB2 - HT 15/3 unit consists of two HT 15/3 electric pumps, two pressure switches, and an E2 control panel. Two manifolds for the suction and delivery ports are also supplied.

The flow rate ranges from 100 to 800 liters per minute. The head ranges from 27 to 72 meters.

Set up so that, with each increase in user demand, one or both pumps are automatically started in succession in order to satisfy the system's water needs and reduce electricity consumption.

Data sheet
Brand Pedrollo
Reference CB2 - HT 15/3
In stock 50 Items
MPN KCHT1153A
Motor connection
THREE-PHASE
Power (Kw)
8
Power (HP)
11
Current consumption at 400V (A)
17.6
Suction mouth
3"
Delivery mouth
3"
Minimum flow rate (l./min.)
100
Max. flow rate (l./min.)
800
Min. head (m.)
27
Max. head (m.)
72
Height (cm)
67.4
Width (cm)
70.0
Depth (cm)
99.3
Weight (Kg)
175
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.
