CB2 - HT 10/6 - 2x4 HP three-phase pressure booster set

2 x 3 kW (2 x 4 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 93 m.

€3,389.22 Tax included

2778.05 Tax excluded

€6,162.22-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HT 10/6 - 2x4 HP three-phase pressure booster set
  • Use dot instead of comma

Loading

Description

The CB2 - HT 10/6 pressure group by Pedrollo is recommended for the domestic, civil, agricultural and industrial sectors.

Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.

Suitable for pumping clean water or aqueous solutions that do not damage the components.

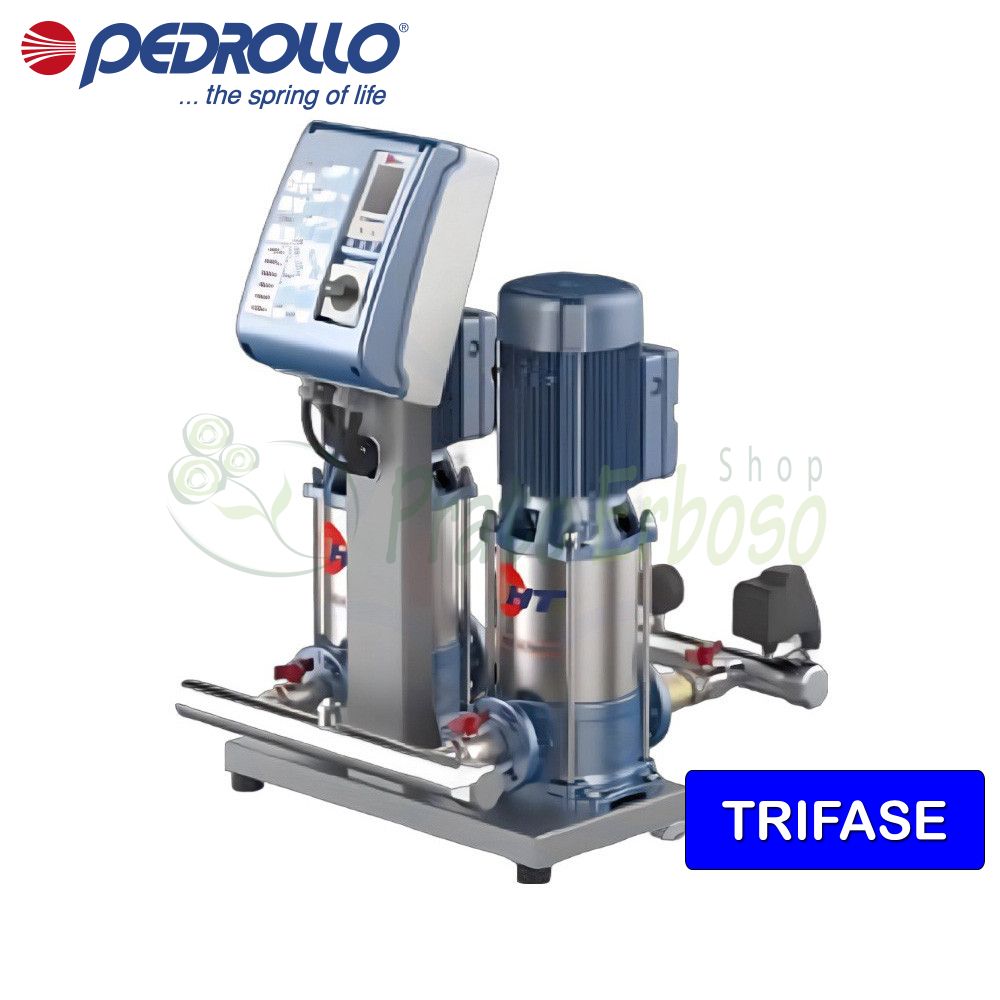

The CB2 - HT 10/6 pressure group consists of two HT 10/6 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

It has a flow rate ranging from 60 to 500 litres per minute and a head from 26 to 93 metres.

Data sheet
Brand Pedrollo
Reference CB2 - HT 10/6
In stock 50 Items
MPN KCHT1106A
Motor connection
THREE-PHASE
Power (Kw)
6
Power (HP)
8
Current consumption at 400V (A)
13.0
Suction mouth
2" 1/2
Delivery mouth
2" 1/2
Minimum flow rate (l./min.)
60
Max. flow rate (l./min.)
500
Min. head (m.)
26
Max. head (m.)
93
Height (cm)
67.4
Width (cm)
70.0
Depth (cm)
87.3
Weight (Kg)
135
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HT 10 models and performance
