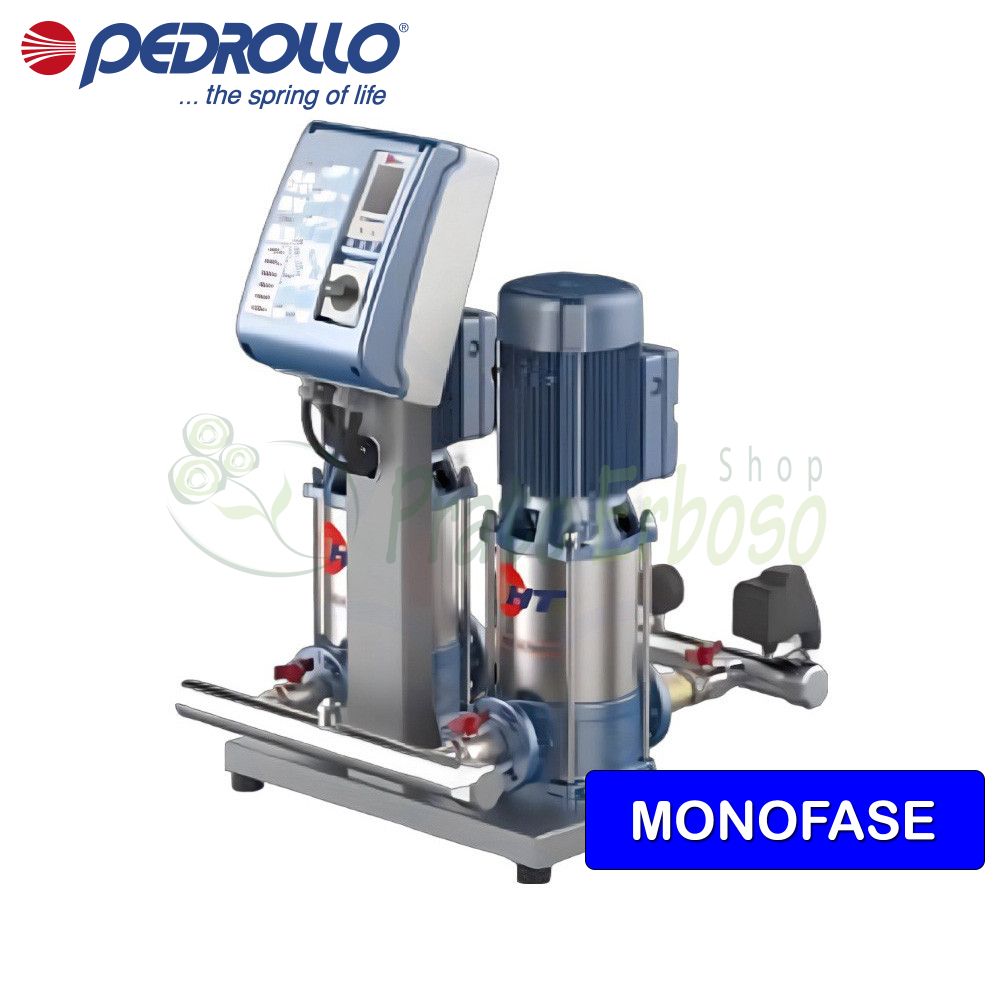

CB2 - HTm 10/4 - Single-phase pressure group 2x2.5 HP
2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 62 m.
The CB2 - HTm 10/4 pressure group by Pedrollo is recommended for the domestic, civil, agricultural and industrial sectors.
Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.
Suitable for pumping clean water or aqueous solutions that do not damage the components.
The CB2 - HTm 10/4 pressure set consists of two HTm 10/4 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
It has a flow rate ranging from 40 to 500 litres per minute and a head from 18 to 62 metres.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3.6
- Power (HP)
- 5
- Absorption at 230V (A)
- 22.0
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Minimum flow rate (l./min.)
- 60
- Max. flow rate (l./min.)
- 500
- Min. head (m.)
- 18
- Max. head (m.)
- 62
- Height (cm)
- 67.4
- Width (cm)
- 53.0
- Depth (cm)
- 87.3
- Weight (Kg)
- 111
