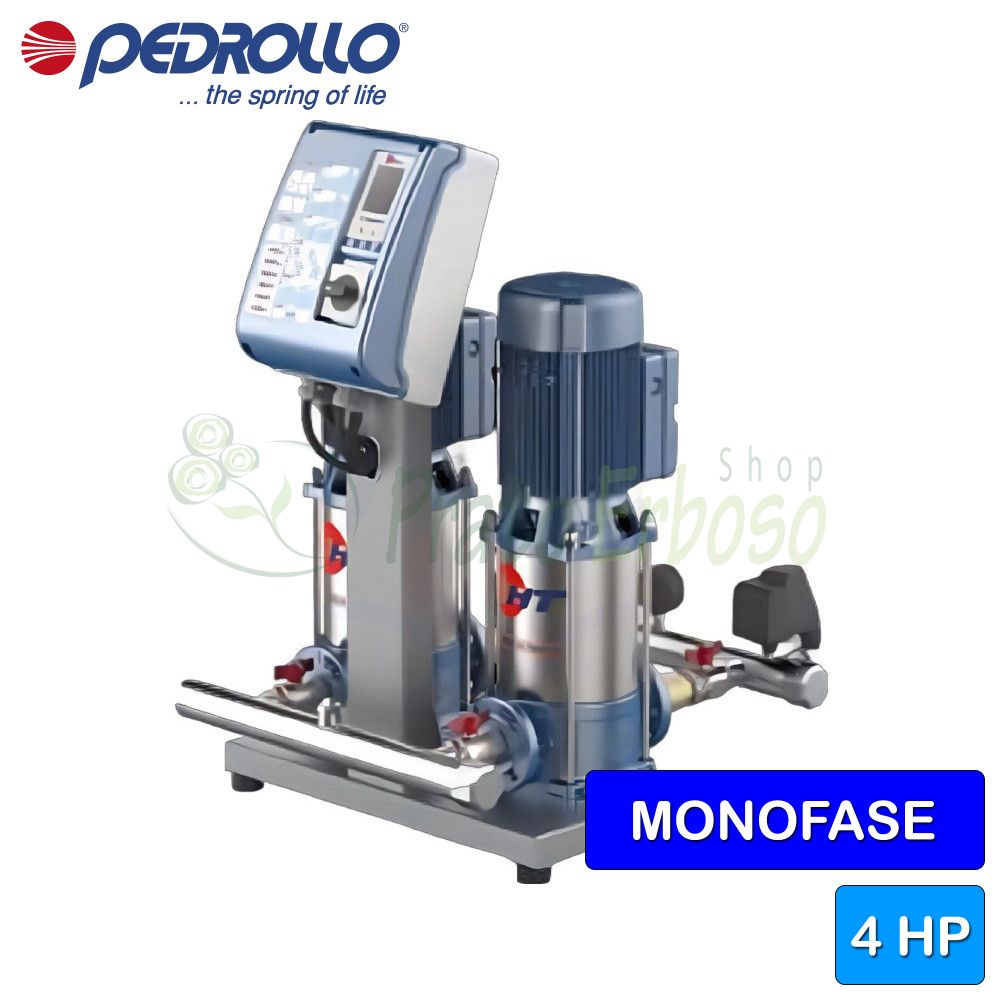

CB2 - HTm 10/3 - 2x2 HP single-phase pressure booster set

2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 47 m.

€2,437.74 Tax included

1998.15 Tax excluded

€4,432.26-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HTm 10/3 - 2x2 HP single-phase pressure booster set
  • Use dot instead of comma

Loading

Description

The Pedrollo CB2 - HTm 10/3 pressure group is suitable for residential and commercial water supply, for irrigation and for the movement of clean water in general, including in the industrial field.

Consisting of two HTm 10/3 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.

The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.

The E2 control panel provides protection against dry running.

The CB2 - HTm 10/3 pressure group has a flow rate ranging from 60 to 500 litres per minute and a head from 13 to 47 metres.

Data sheet
Brand Pedrollo
Reference CB2 - HTm 10/3
In stock 50 Items
MPN KCHT1103A1
Motor connection
SINGLE-PHASE
Power (Kw)
3
Power (HP)
4
Absorption at 230V (A)
19.0
Suction mouth
2" 1/2
Delivery mouth
2" 1/2
Minimum flow rate (l./min.)
60
Max. flow rate (l./min.)
500
Min. head (m.)
13
Max. head (m.)
47
Height (cm)
67.4
Width (cm)
53.0
Depth (cm)
87.3
Weight (Kg)
107
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HTm 10 models and performance
