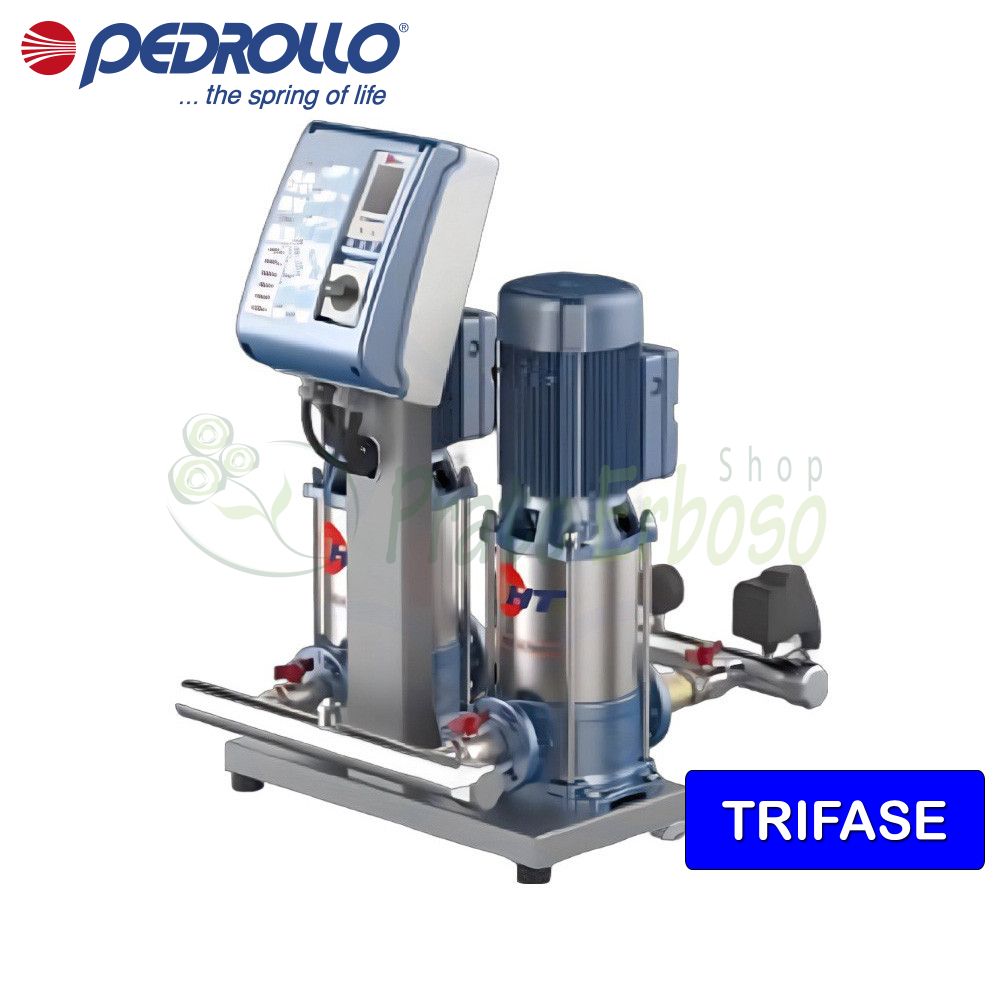

CB2 - HT 8/7 - 2x4 HP three-phase pressure booster set
2 x 3 kW (2 x 4 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 109 m.
The Pedrollo CB2 - HT 8/7 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the pumps.
Recommended for residential and commercial water supply, irrigation and for the movement of clean water in general, including in industrial applications.
The CB2 - HT 8/7 unit consists of two HT 8/7 electric pumps, two pressure switches, and an E2 control panel. Two manifolds for the suction and delivery ports are also supplied.
The flow rate ranges from 40 to 400 liters per minute. The head ranges from 40 to 109 meters.
Set up so that, with each increase in user demand, one or both pumps are automatically started in succession in order to satisfy the system's water needs and reduce electricity consumption.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 6
- Power (HP)
- 8
- Current consumption at 400V (A)
- 14.0
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 40
- Max. head (m.)
- 109
- Height (cm)
- 67.4
- Width (cm)
- 70.0
- Depth (cm)
- 87.3
- Weight (Kg)
- 145
