CB2 - HT 8/5 - 2x2.5 HP three-phase pressure booster set

2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 78 m.

€2,737.01 Tax included

2243.45 Tax excluded

€4,976.38-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HT 8/5 - 2x2.5 HP three-phase pressure booster set
  • Use dot instead of comma

Loading

Description

The Pedrollo CB2 - HT 8/5 pressure group is recommended for domestic, civil, agricultural and industrial sectors.

Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.

Suitable for pumping clean water or aqueous solutions that do not damage the components.

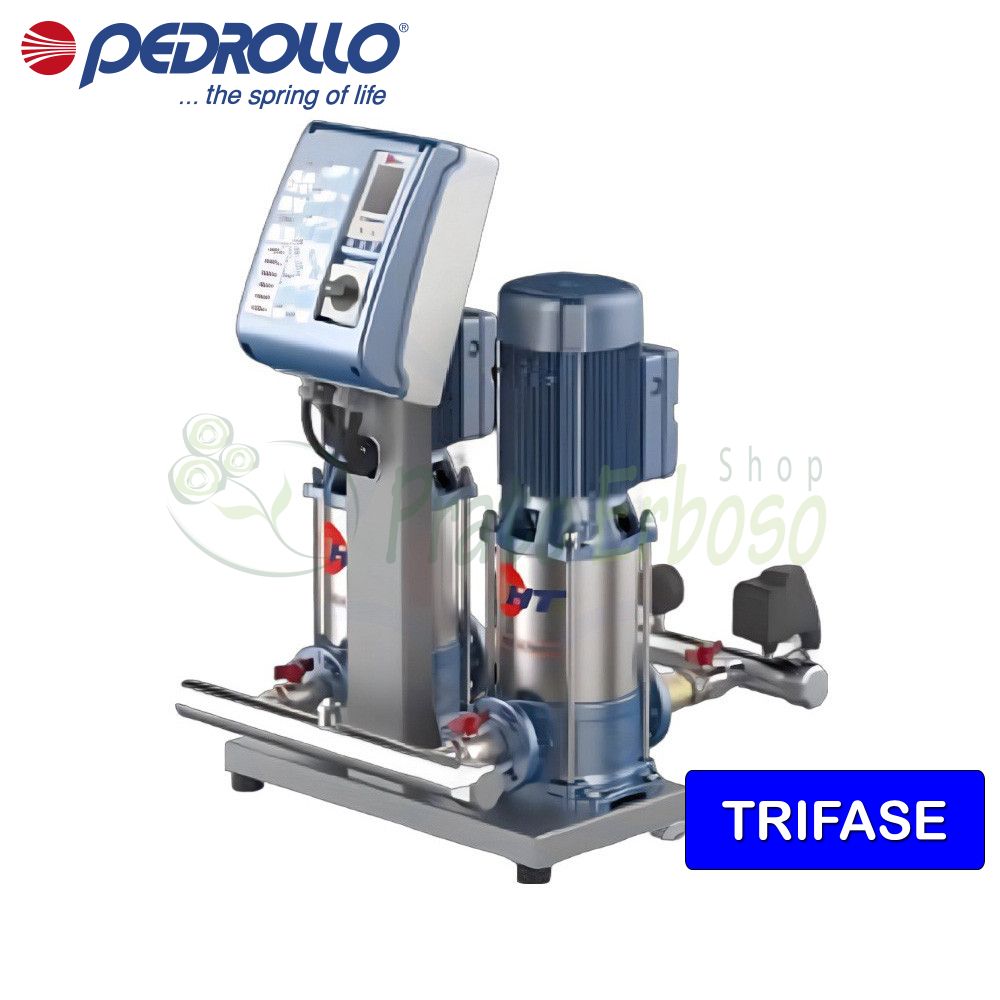

The CB2 - HT 8/5 pressure group consists of two HT 8/5 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

It has a flow rate ranging from 10 to 400 litres per minute and a head from 28.5 to 78 metres.

Data sheet
Brand Pedrollo
Reference CB2 - HT 8/5
In stock 50 Items
MPN KCHT10805A
Motor connection
THREE-PHASE
Power (Kw)
3.6
Power (HP)
5
Current consumption at 400V (A)
9.6
Suction mouth
2" 1/2
Delivery mouth
2" 1/2
Minimum flow rate (l./min.)
40
Max. flow rate (l./min.)
400
Min. head (m.)
28.5
Max. head (m.)
78
Height (cm)
85.4
Width (cm)
53.0
Depth (cm)
87.3
Weight (Kg)
120
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HT 8 models and performance
