CB2 - HTm 8/3 - Single-phase pressure group 2x1.5 HP

2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 47 m.

€2,423.65 Tax included

1986.6 Tax excluded

€4,406.64-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HTm 8/3 - Single-phase pressure group 2x1.5 HP
  • Use dot instead of comma

Loading

Description

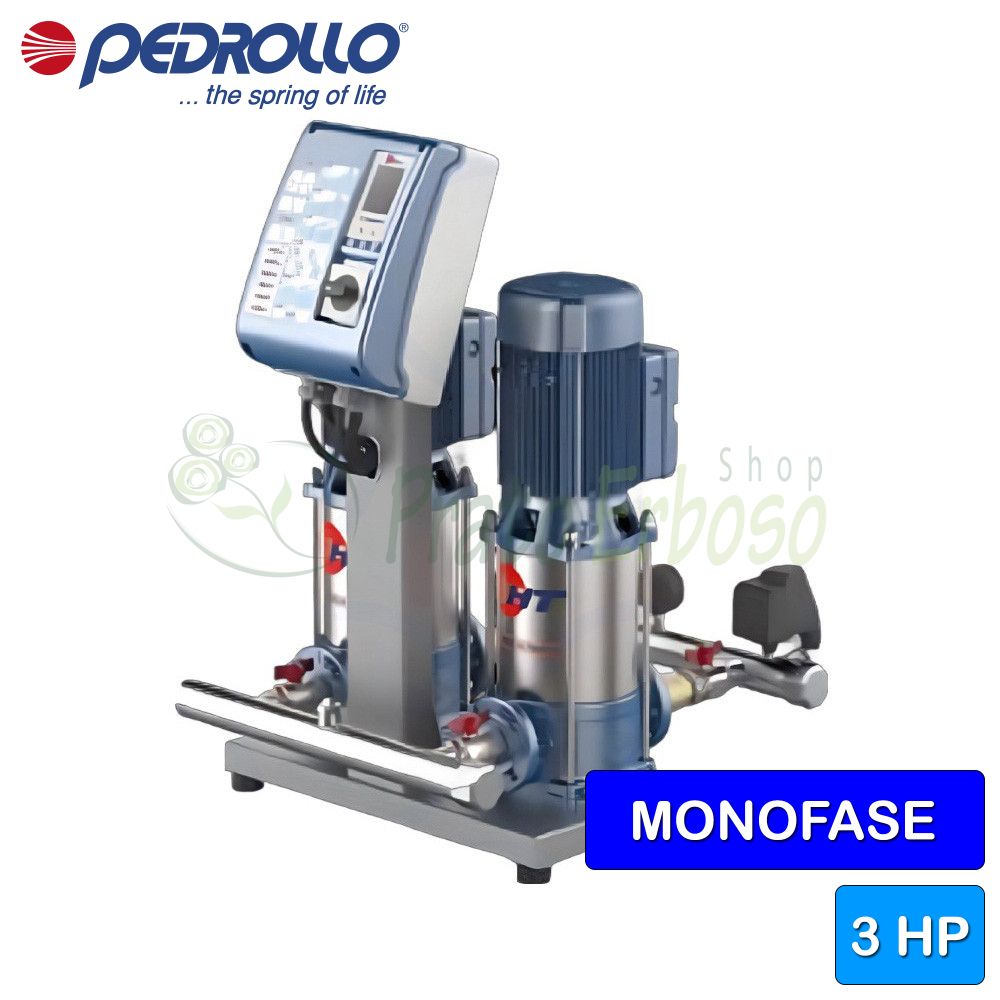

The CB2 - HTm 8/3 pressure group by Pedrollo is recommended for the domestic, civil, agricultural and industrial sectors.

Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.

Suitable for pumping clean water or aqueous solutions that do not damage the components.

The CB2 - HTm 8/3 pressure set consists of two HT 8/3 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

It has a flow rate ranging from 40 to 400 litres per minute and a head from 17 to 47 metres.

Data sheet
Brand Pedrollo
Reference CB2 - HTm 8/3
In stock 50 Items
MPN KCHT10803A1
Motor connection
SINGLE-PHASE
Power (Kw)
2.2
Power (HP)
3
Absorption at 230V (A)
17.4
Suction mouth
2" 1/2
Delivery mouth
2" 1/2
Minimum flow rate (l./min.)
40
Max. flow rate (l./min.)
400
Min. head (m.)
17
Max. head (m.)
47
Height (cm)
67.4
Width (cm)
53.0
Depth (cm)
87.3
Weight (Kg)
106
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HTm 8 models and performances
