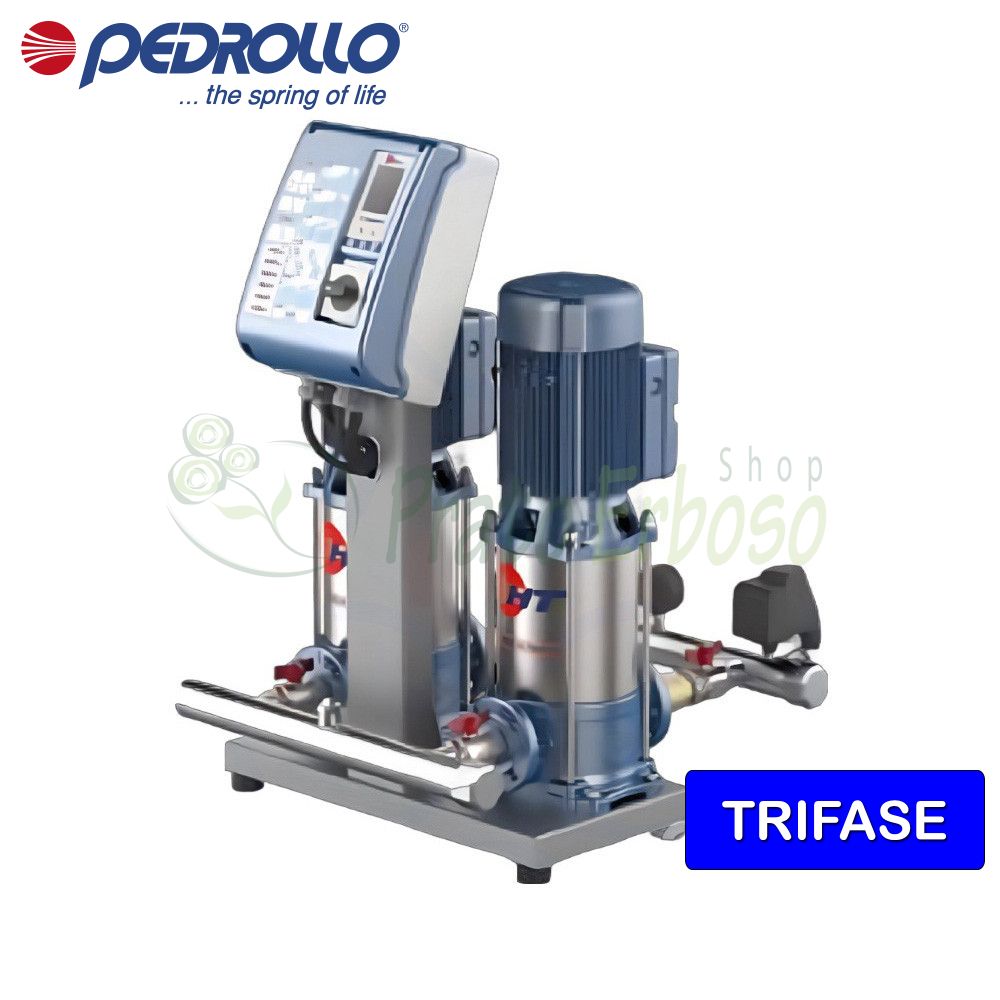

CB2 - HT 5/6 - 2x3 HP three-phase pressure booster set

2 x 2.2 kW (2 x 3 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 103 m.

€2,550.47 Tax included

2090.55 Tax excluded

€4,637.22-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HT 5/6 - 2x3 HP three-phase pressure booster set
  • Use dot instead of comma

Loading

Description

The Pedrollo CB2 - HT 5/6 pressure booster set is suitable for residential and commercial water supply, for irrigation and for the movement of clean water in general, including in the industrial field.

Consisting of two HT 5/6 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.

The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.

The E2 control panel provides protection against dry running.

The CB2 - HT 5/6 pressure group has a flow rate ranging from 10 to 180 litres per minute and a head from 62 to 103 metres.

Data sheet
Brand Pedrollo
Reference CB2 - HT 5/6
In stock 50 Items
MPN KCHT10506A
Motor connection
THREE-PHASE
Power (Kw)
4.4
Power (HP)
6
Current consumption at 400V (A)
10.4
Suction mouth
2"
Delivery mouth
2"
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
260
Min. head (m.)
62
Max. head (m.)
103
Height (cm)
85.4
Width (cm)
53.0
Depth (cm)
77.9
Weight (Kg)
111
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HT 5 models and performance
