CB2 - HT 5/4 - 2x2 HP three-phase pressure group

2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 68.5 m.

€2,395.47 Tax included

1963.5 Tax excluded

€4,355.40-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HT 5/4 - 2x2 HP three-phase pressure group
  • Use dot instead of comma

Loading

Description

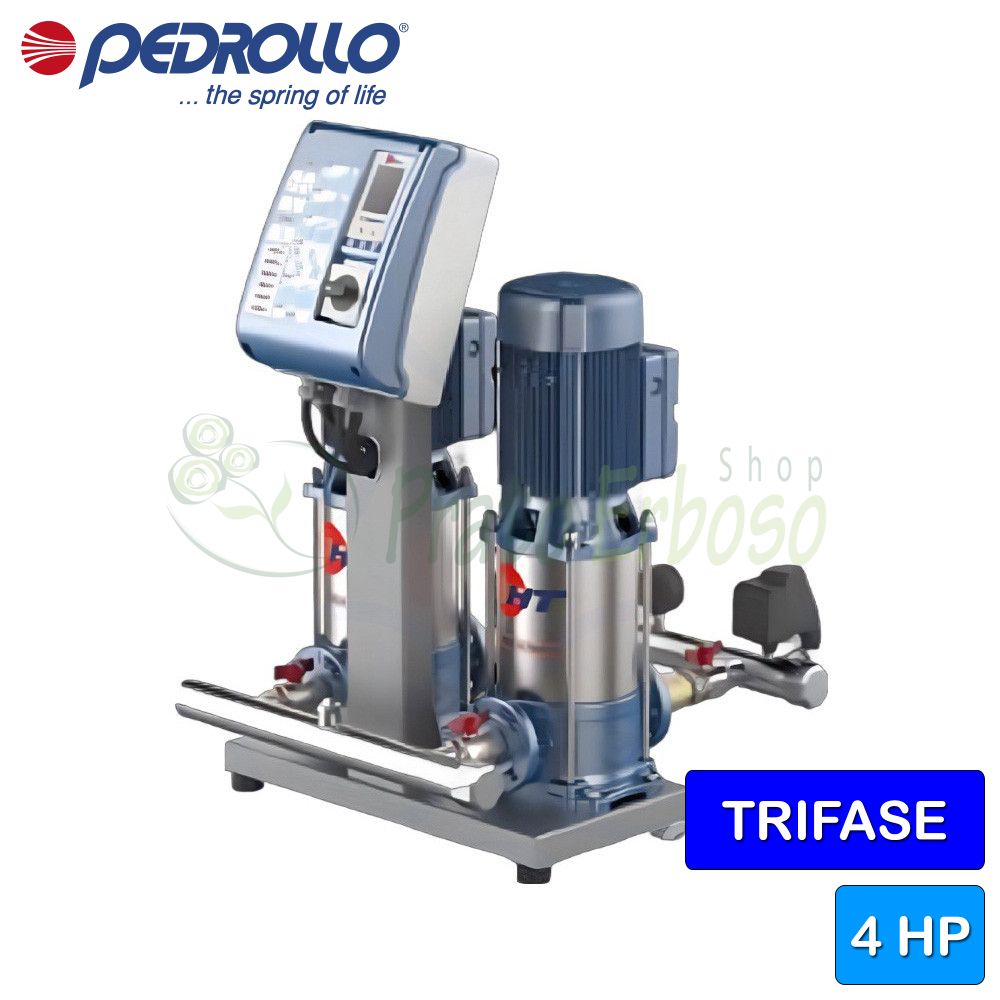

The CB2 - HT 5/4 pressure set consists of two electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.

This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.

The CB2 - HT 5/4 pressure group is ideal for residential and commercial water supply, for irrigation and for the movement of clean water in general, even in the industrial field.

The electrical panel provides protection against dry running.

The base is made of metal profile and equipped with adjustable anti-vibration feet.

Data sheet
Brand Pedrollo
Reference CB2 - HT 5/4
In stock 50 Items
MPN KCHT10504A
Motor connection
THREE-PHASE
Power (Kw)
3
Power (HP)
4
Current consumption at 400V (A)
7.6
Suction mouth
2"
Delivery mouth
2"
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
260
Min. head (m.)
41
Max. head (m.)
68.5
Height (cm)
67.4
Width (cm)
53.0
Depth (cm)
77.9
Weight (Kg)
104
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HT 5 models and performance
