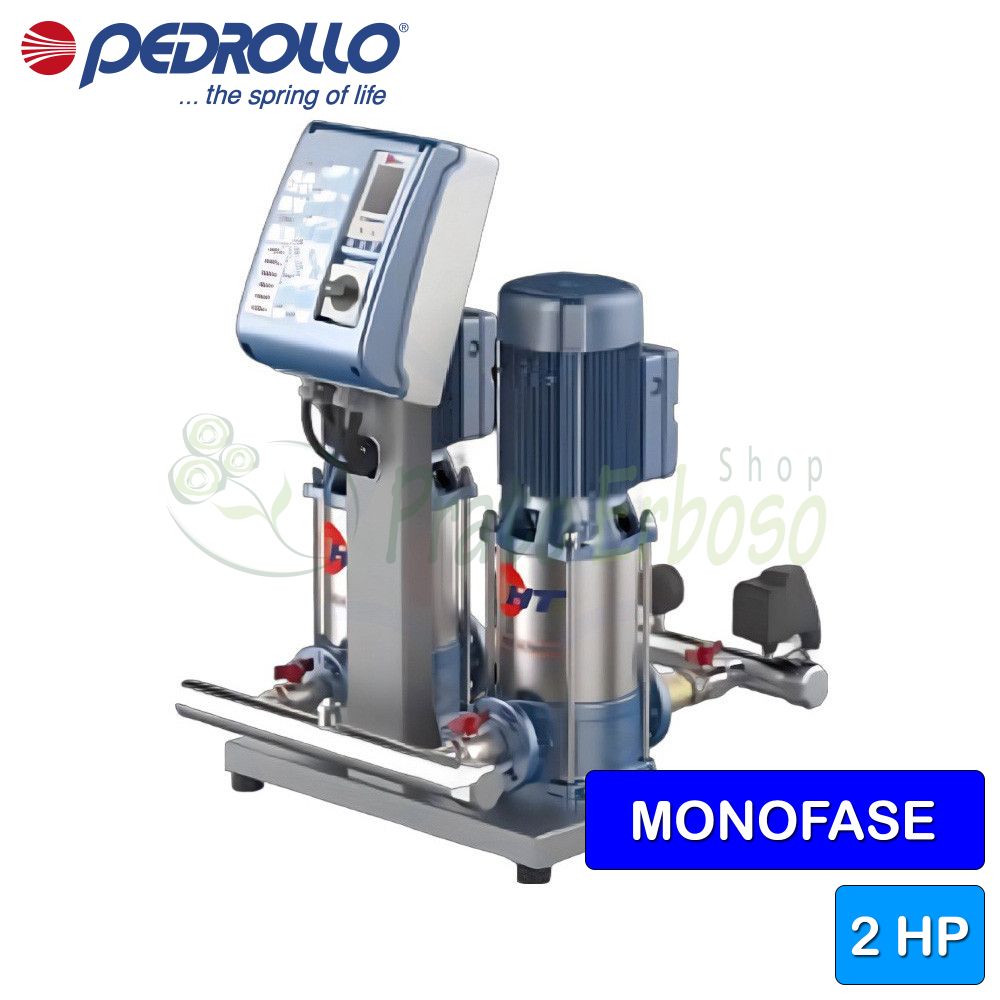

CB2 - HTm 5/2 - Single-phase pressure group 2x1 HP

2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 35 m.

€2,177.40 Tax included

1784.75 Tax excluded

€3,958.90-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HTm 5/2 - Single-phase pressure group 2x1 HP
  • Use dot instead of comma

Loading

Description

The Pedrollo CB2 - HTm 5/2 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the components.

Its use is recommended in the domestic, civil, agricultural and industrial sectors for supply and pressure increase.

The CB2 - HTm 5/2 pressure set consists of two HTm 5/2 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.

The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.

The E2 control panel provides protection against dry running.

The CB2 - HTm 5/2 pressure group has a flow rate ranging from 10 to 260 litres per minute and a head from 20.5 to 35 metres.

Data sheet
Brand Pedrollo
Reference CB2 - HTm 5/2
In stock 50 Items
MPN KCHT10502A1
Motor connection
SINGLE-PHASE
Power (Kw)
1.5
Power (HP)
2
Absorption at 230V (A)
12.1
Suction mouth
2"
Delivery mouth
2"
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
260
Min. head (m.)
20.5
Max. head (m.)
35
Height (cm)
67.4
Width (cm)
53.0
Depth (cm)
77.9
Weight (Kg)
99
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HTm 5 models and performance
