CB2 - HTm 3/5 - Single-phase pressure group 2x1.5 HP

2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 81 m.

€2,177.40 Tax included

1784.75 Tax excluded

€3,958.90-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - HTm 3/5 - Single-phase pressure group 2x1.5 HP
  • Use dot instead of comma

Loading

Description

The Pedrollo CB2 - HTm 3/5 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the pumps.

Recommended for residential and commercial water supply, irrigation and for the movement of clean water in general, including in industrial applications.

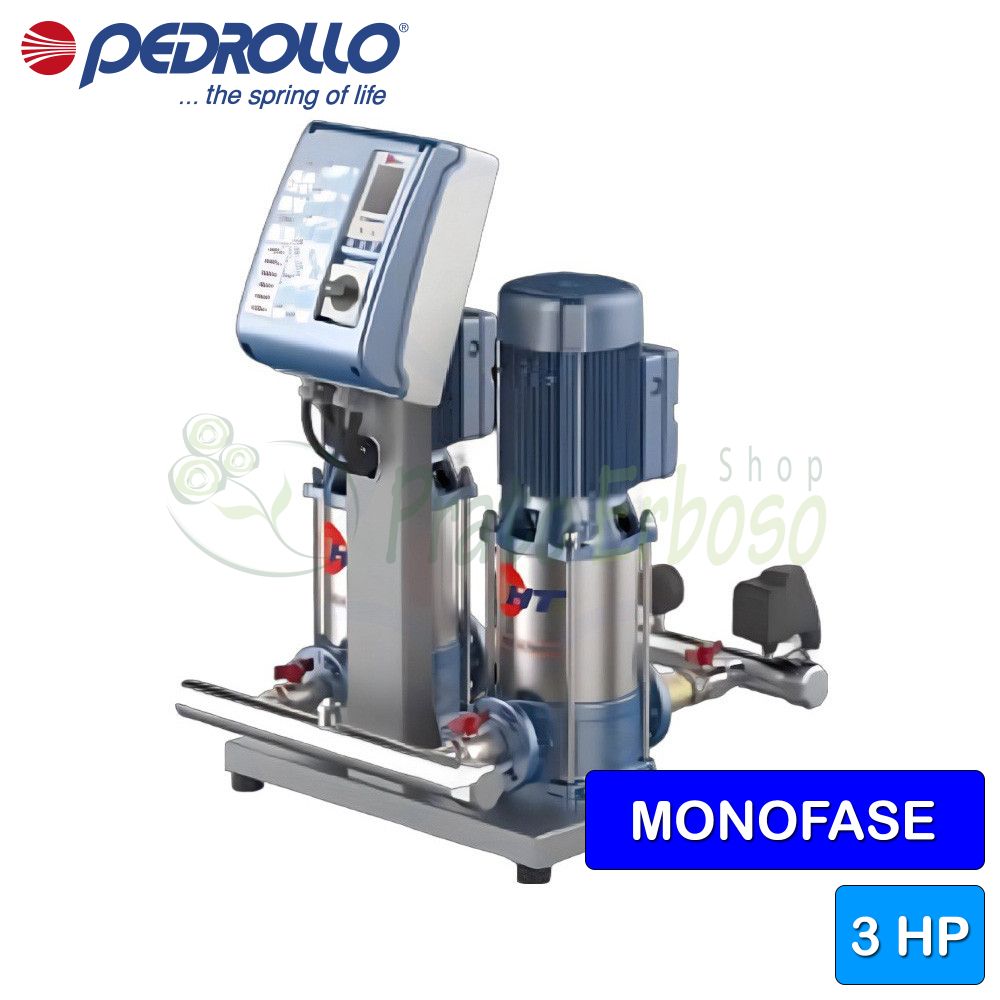

The CB2 - HTm 3/5 unit consists of two HTm 3/5 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

The flow rate ranges from 10 to 180 liters per minute. The head ranges from 41 to 81 meters.

Set up so that, with each increase in user demand, one or both pumps are automatically started in succession in order to satisfy the system's water needs and reduce electricity consumption.

Data sheet
Brand Pedrollo
Reference CB2 - HTm 3/5
In stock 50 Items
MPN KCHT10305A1
Motor connection
SINGLE-PHASE
Power (Kw)
2.2
Power (HP)
3
Absorption at 230V (A)
18.0
Suction mouth
2"
Delivery mouth
2"
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
180
Min. head (m.)
41
Max. head (m.)
81
Height (cm)
67.4
Width (cm)
53.0
Depth (cm)
73.2
Weight (Kg)
100
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HTm 3 models and performances
