CB2 - FCR 15/4 - Three-phase pressure group 2x7.5 HP

2 x 5.5 kW (2 x 7.5 HP) motor. Flow rate up to 800 l/min (48 m³/h). Head up to 96 m.

€4,488.32 Tax included

3678.95 Tax excluded

€8,160.58-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - FCR 15/4 - Three-phase pressure group 2x7.5 HP
  • Use dot instead of comma

Loading

Description

The CB2 - FCR 15/4 pressure group by Pedrollo is recommended for domestic, civil, agricultural and industrial sectors.

Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.

Suitable for pumping clean water or aqueous solutions that do not damage the components.

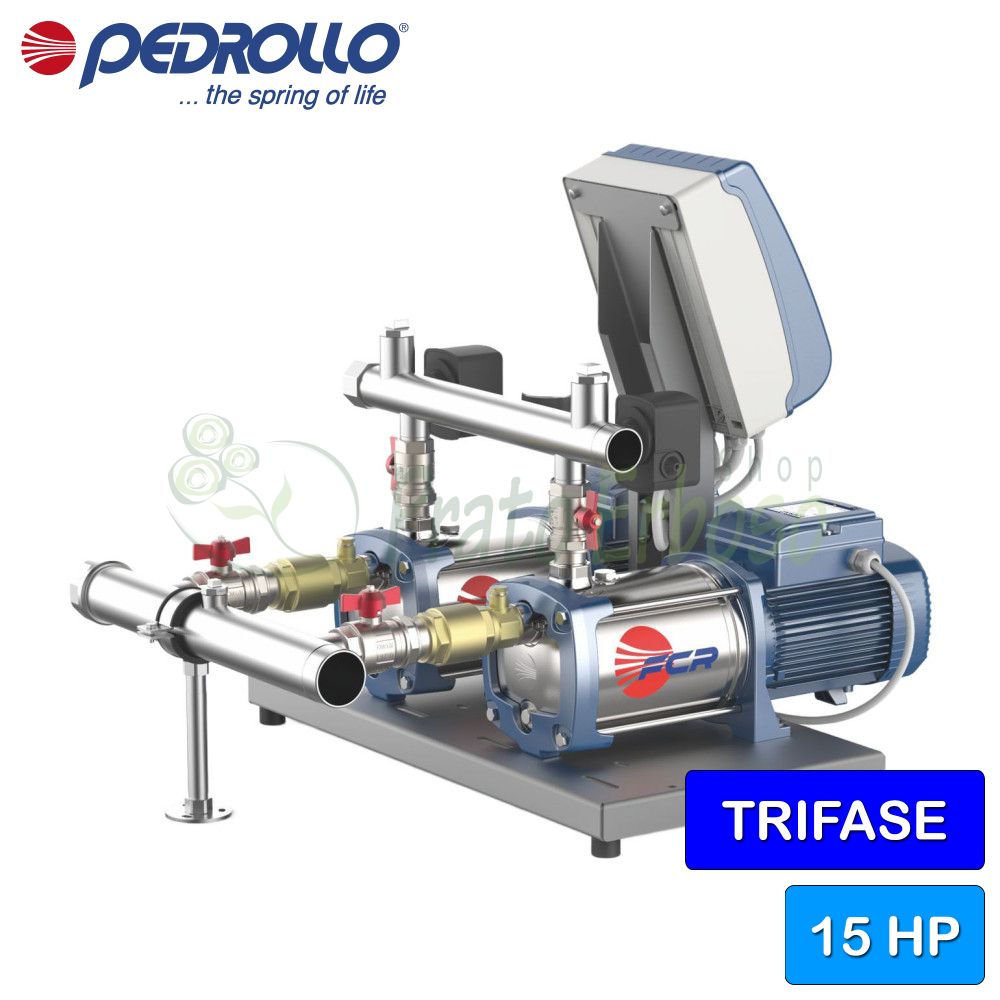

The CB2 - FCR 15/4 pressure set consists of two FCR 15/4 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

It has a flow rate ranging from 10 to 800 litres per minute and a head from 36 to 96 metres.

Data sheet
Brand Pedrollo
Reference CB2 - FCR 15/4
In stock 50 Items
MPN KCFCR010540AA
Motor connection
THREE-PHASE
Power (Kw)
11
Power (HP)
15
Current consumption at 400V (A)
22.8
Suction mouth
4"
Delivery mouth
3"
Minimum flow rate (l./min.)
100
Max. flow rate (l./min.)
800
Min. head (m.)
36
Max. head (m.)
96
Height (cm)
70.4
Width (cm)
70.0
Depth (cm)
110.2
Weight (Kg)
191
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - FCR 15 Models and Performance
