CB2 - FCR 15/3 - Three-phase pressure group 2x5.5 HP

2 x 4 kW (2 x 5.5 HP) motors. Flow rate up to 800 l/min (48 m³/h). Head up to 72 m.

€4,227.30 Tax included

3465 Tax excluded

€7,686.00-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - FCR 15/3 - Three-phase pressure group 2x5.5 HP
  • Use dot instead of comma

Loading

Description

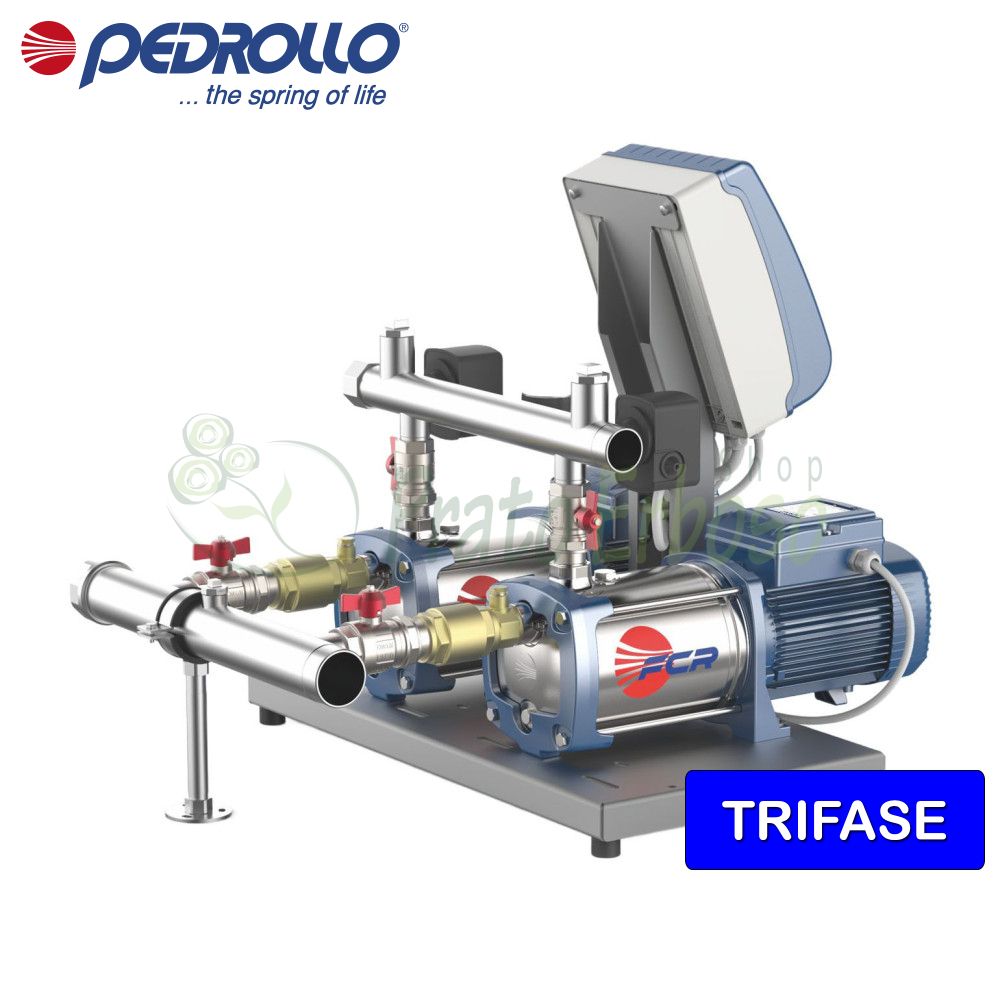

The CB2 - FCR 15/3 pressure set consists of two electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.

This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.

The CB2 - FCR 15/3 pressure group is ideal for handling water supplies in residential and commercial buildings, pressure boosting in industrial applications, irrigation of gardens and sports fields.

The electrical panel provides protection against dry running.

The base is made of metal profile and equipped with adjustable anti-vibration feet.

Data sheet
Brand Pedrollo
Reference CB2 - FCR 15/3
In stock 50 Items
MPN KCFCR010530AA
Motor connection
THREE-PHASE
Power (Kw)
8
Power (HP)
11
Current consumption at 400V (A)
16.6
Suction mouth
4"
Delivery mouth
3"
Minimum flow rate (l./min.)
100
Max. flow rate (l./min.)
800
Min. head (m.)
27
Max. head (m.)
72
Height (cm)
70.4
Width (cm)
70.0
Depth (cm)
105.8
Weight (Kg)
179
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - FCR 15 Models and Performance
