CB2 - FCRm 130/4 - 2x2 HP single-phase pressure booster set

2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 68.5 m.

€2,177.40 Tax included

1784.75 Tax excluded

€3,958.90-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

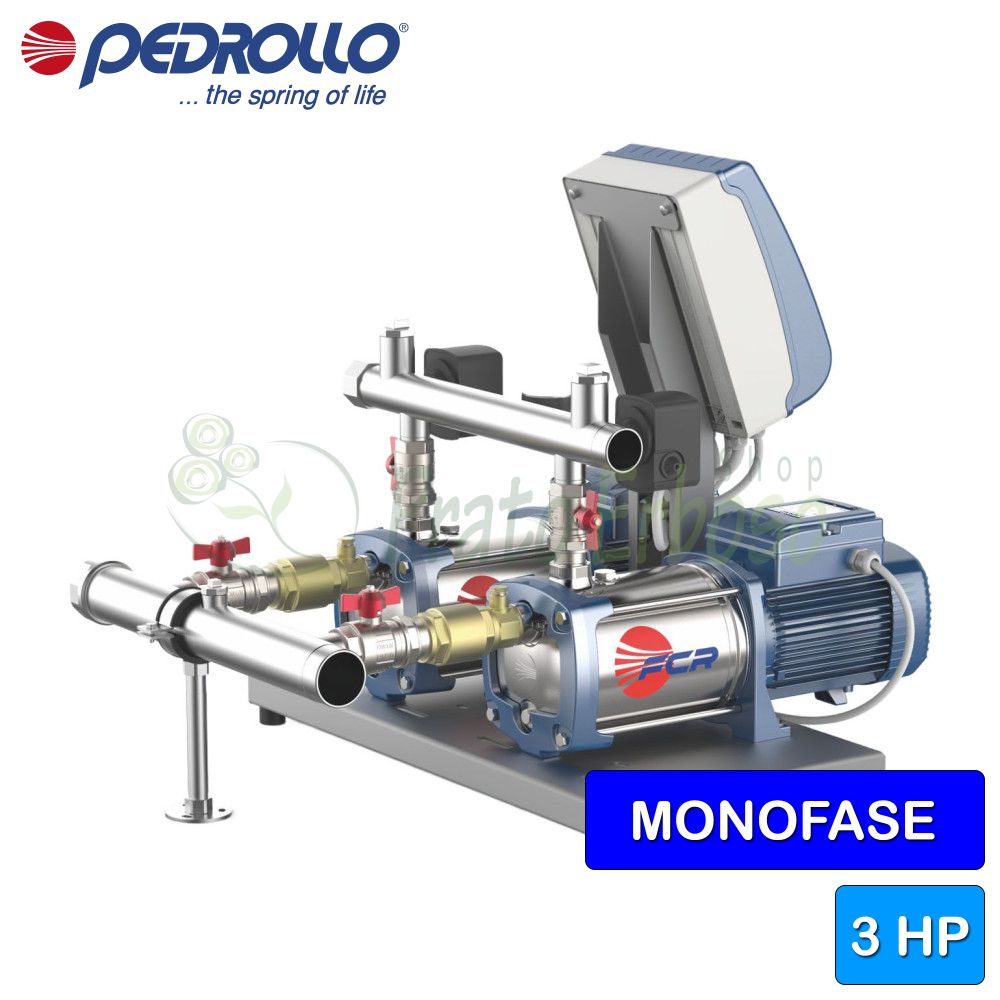

CB2 - FCRm 130/4 - 2x2 HP single-phase pressure booster set
  • Use dot instead of comma

Loading

Description

The CB2 - FCRm 130/4 pressure group by Pedrollo is recommended for domestic, civil, agricultural and industrial sectors.

Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.

Suitable for pumping clean water or aqueous solutions that do not damage the components.

The CB2 - FCRm 130/4 pressure set consists of two FCRm 130/4 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

It has a flow rate ranging from 10 to 260 litres per minute and a head from 41 to 68.5 metres.

Data sheet
Brand Pedrollo
Reference CB2 - FCRm 130/4
In stock 50 Items
MPN KCCRI1304A1
Motor connection
SINGLE-PHASE
Power (Kw)
3
Power (HP)
4
Absorption at 230V (A)
20.6
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
260
Min. head (m.)
41
Max. head (m.)
68.5
Height (cm)
67.4
Width (cm)
70.0
Depth (cm)
77.9
Weight (Kg)
83
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - FCRm Models and Performance
