CB2 - FCR 90/5 - Three-phase pressure group 2x1.5 HP

2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (15.6 m³/h). Head up to 81 m.

€2,304.21 Tax included

1888.7 Tax excluded

€4,189.48-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - FCR 90/5 - Three-phase pressure group 2x1.5 HP
  • Use dot instead of comma

Loading

Description

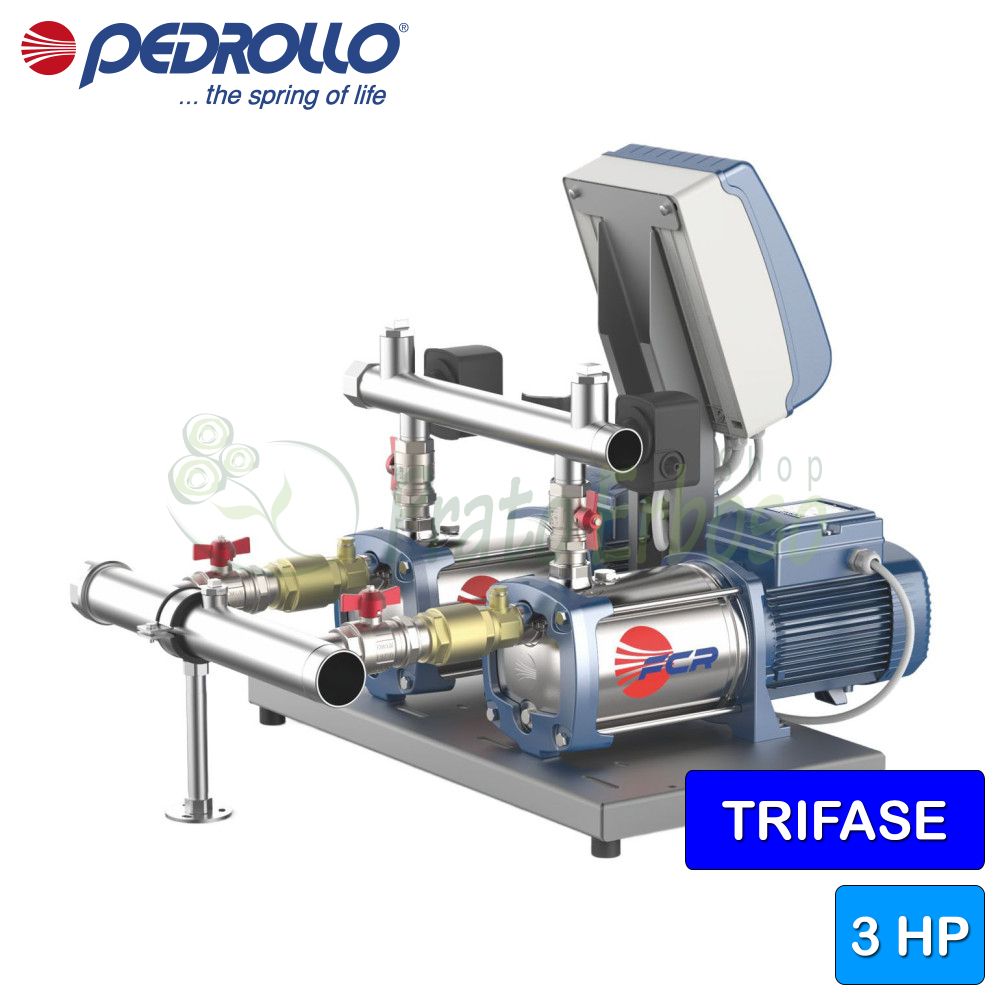

The Pedrollo CB2 - FCR 90/5 booster set is recommended for residential and commercial water supply, pressure boosting in industrial applications, and irrigation of gardens and sports fields.

Consisting of two FCR 90/5 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.

The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.

The E2 control panel provides protection against dry running.

The CB2 - FCR 90/5 pressure group has a flow rate ranging from 10 to 180 litres per minute and a head from 44 to 81 metres.

Data sheet
Brand Pedrollo
Reference CB2 - FCR 90/5
In stock 50 Items
MPN KCCRI0905A
Motor connection
THREE-PHASE
Power (Kw)
2.2
Power (HP)
3
Absorption at 230V (A)
18.0
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
180
Min. head (m.)
44
Max. head (m.)
81
Height (cm)
67.4
Width (cm)
70.0
Depth (cm)
80.5
Weight (Kg)
83
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - FCR Models and Performance
