CB2 - FCR 100/5 - Three-phase pressure group 2x1.25 HP

2 x 0.9 kW (2 x 1.25 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 63 m.

€1,620.47 Tax included

1328.25 Tax excluded

€2,946.30-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - FCR 100/5 - Three-phase pressure group 2x1.25 HP
  • Use dot instead of comma

Loading

Description

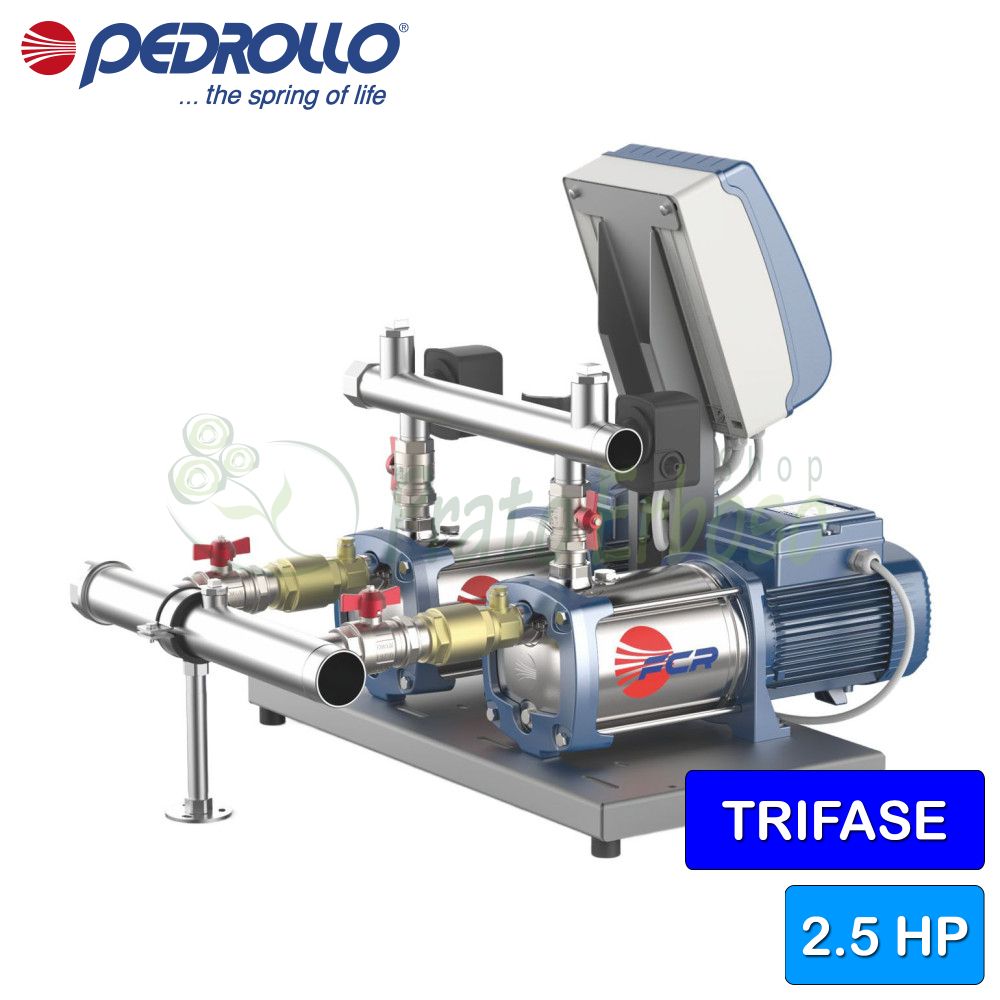

The Pedrollo CB2 - FCR 100/5 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the pumps.

Recommended for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.

The CB2 - FCR 100/5 unit consists of two FCR 100/5 electric pumps, two pressure switches, and an E2 control panel. Two manifolds for the suction and delivery ports are also supplied.

The flow rate ranges from 10 to 260 liters per minute. The head ranges from 8 to 63 meters.

Set up so that, with each increase in user demand, one or both pumps are automatically started in succession in order to satisfy the system's water needs and reduce electricity consumption.

Data sheet
Brand Pedrollo
Reference CB2 - FCR 100/5
In stock 50 Items
MPN KCCRI1005AEU
Motor connection
THREE-PHASE
Power (Kw)
1.8
Power (HP)
2.5
Current consumption at 400V (A)
5.0
Suction mouth
2"
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
260
Min. head (m.)
8
Max. head (m.)
63
Height (cm)
67.4
Width (cm)
53.0
Depth (cm)
71.5
Weight (Kg)
56
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - FCR Models and Performance
