CB2 - FCRm 100/4 - Single-phase 2x1 HP pressure booster set
2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 50 m.

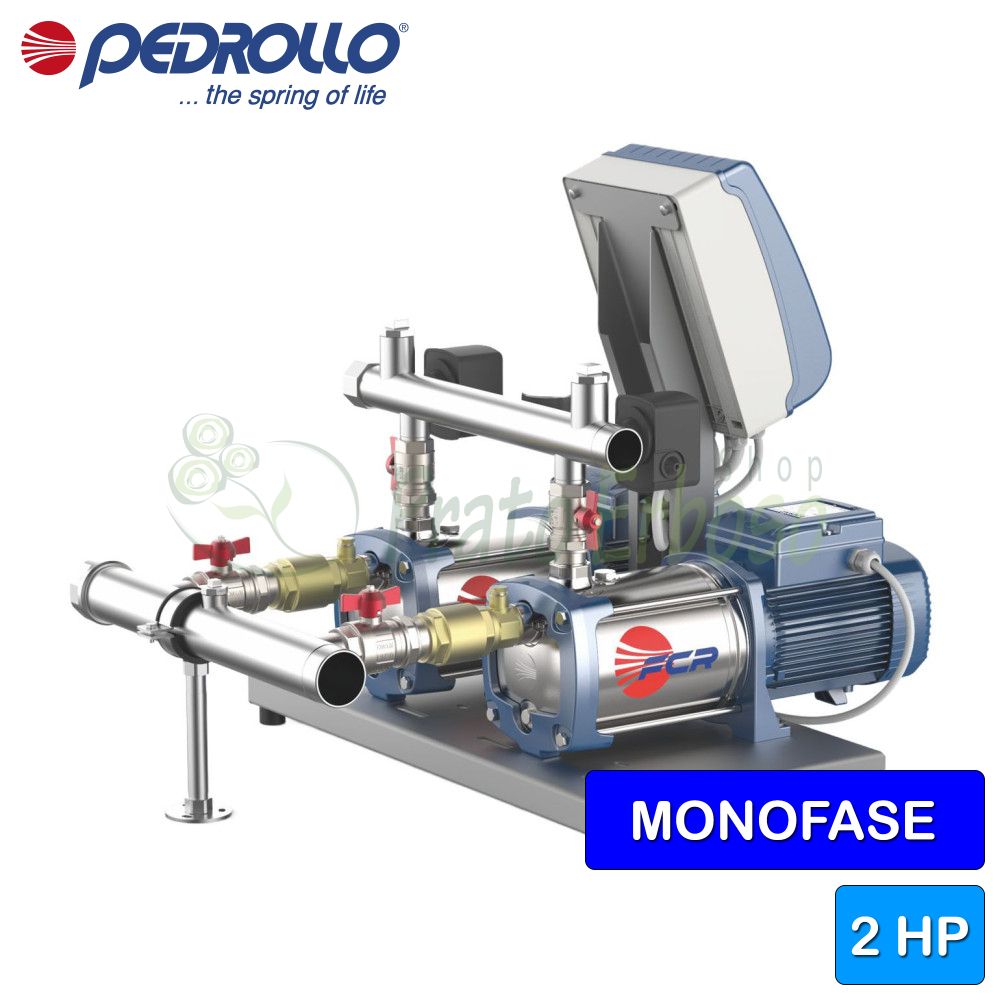

The CB2 - FCRm 100/4 pressure booster set consists of two electric pumps, two pressure switches, and an E2 control panel. Two manifolds for the suction and delivery ports are also supplied.
The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.
This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.
The CB2 - FCRm 100/4 pressure group is ideal for handling water supplies in residential and commercial buildings, boosting pressure in industrial applications, and irrigating gardens and sports fields.
The electrical panel provides protection against dry running.
The base is made of metal profile and equipped with adjustable anti-vibration feet.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 11.6
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 260
- Min. head (m.)
- 5
- Max. head (m.)
- 50
- Height (cm)
- 67.4
- Width (cm)
- 53.0
- Depth (cm)
- 71.5
- Weight (Kg)
- 56
- Warranty (years)
- 2
