-45%

CB2 - FCRm 80/5 - Single-phase 2x1 HP pressure booster set

2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 160 l/min (9.6 m³/h). Head up to 67 m.

€1,402.39 Tax included

1149.5 Tax excluded

€2,549.80-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - FCRm 80/5 - Single-phase 2x1 HP pressure booster set
  • Use dot instead of comma

Loading

Description

The Pedrollo CB2 - FCRm 80/5 pressure group is ideal for moving clean water.

The ideal area of use is particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.

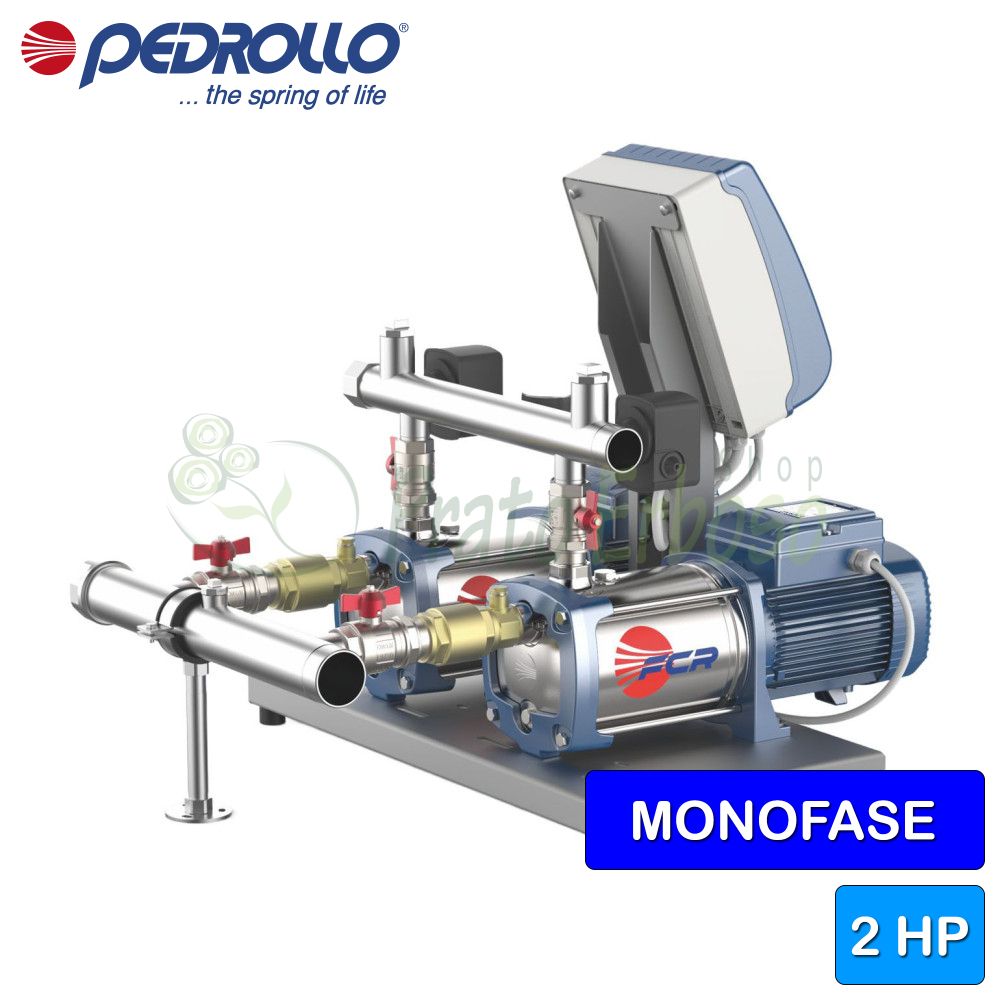

The CB2 - FCRm 80/5 pressure set consists of two electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.

This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.

The base is made of metal profile and equipped with adjustable anti-vibration feet.

The electrical panel provides protection against dry running.

Data sheet
Brand Pedrollo
Reference CB2 - FCRm 80/5
In stock 50 Items
MPN KCCRI0805A1
Motor connection
SINGLE-PHASE
Power (Kw)
1.5
Power (HP)
2
Absorption at 230V (A)
11.0
Suction mouth
1" 1/2
Delivery mouth
1" 1/2
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
160
Min. head (m.)
12
Max. head (m.)
67
Height (cm)
67.4
Width (cm)
53.0
Depth (cm)
67.2
Weight (Kg)
53
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - FCRm Models and Performance
