CB2 - MKm 8/6 - Single-phase 2x3 HP pressure group
2 SINGLE-PHASE ELECTRIC PUMPS.
2 x 2.2 kW (2 x 3 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 86 m.
The CB2 - MKm 8/6 pressure group from the CB2-CP series by Pedrollo is a pressurization system composed of 2 electric pumps.
Set up so that one or both pumps start automatically at each increase in demand.
The electronic circuit in the control panel allows the pumps to be automatically switched at each start or stop cycle.
Suitable for residential and commercial water supply activities, irrigation of large gardens, sports fields and agricultural crops.

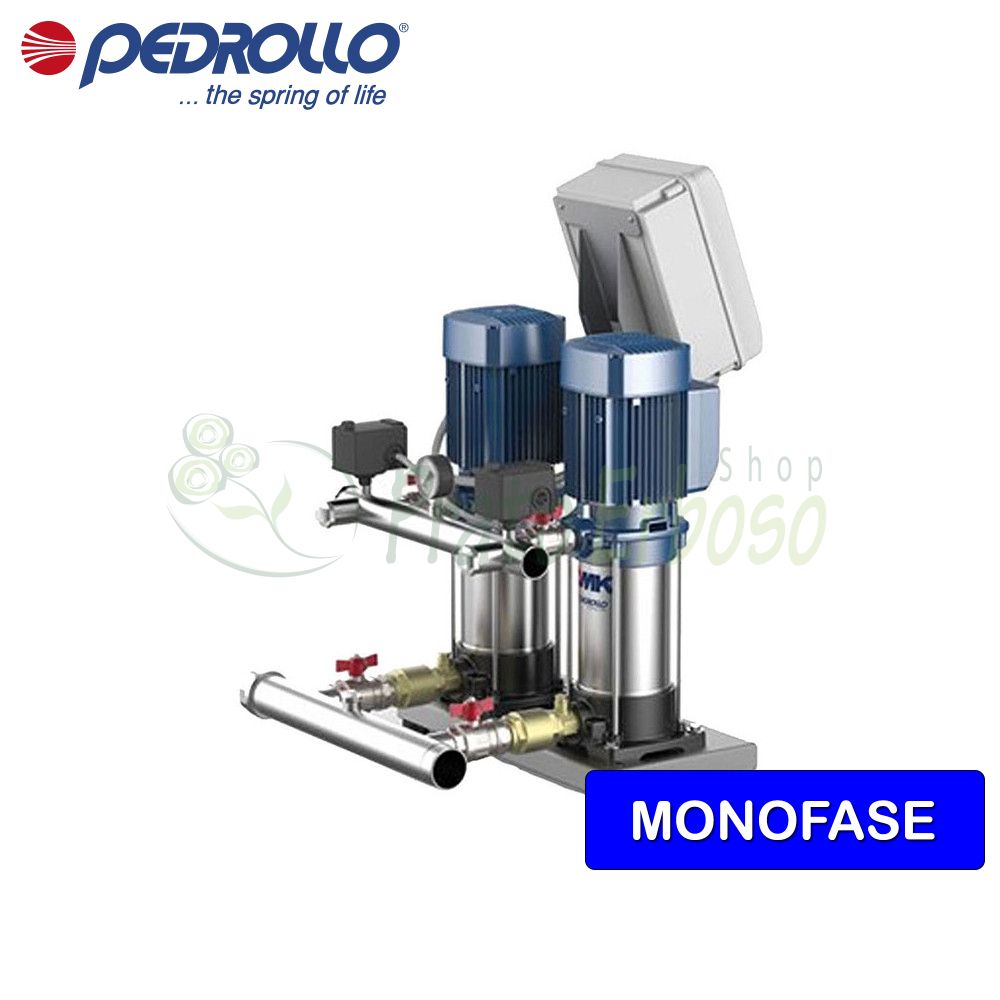

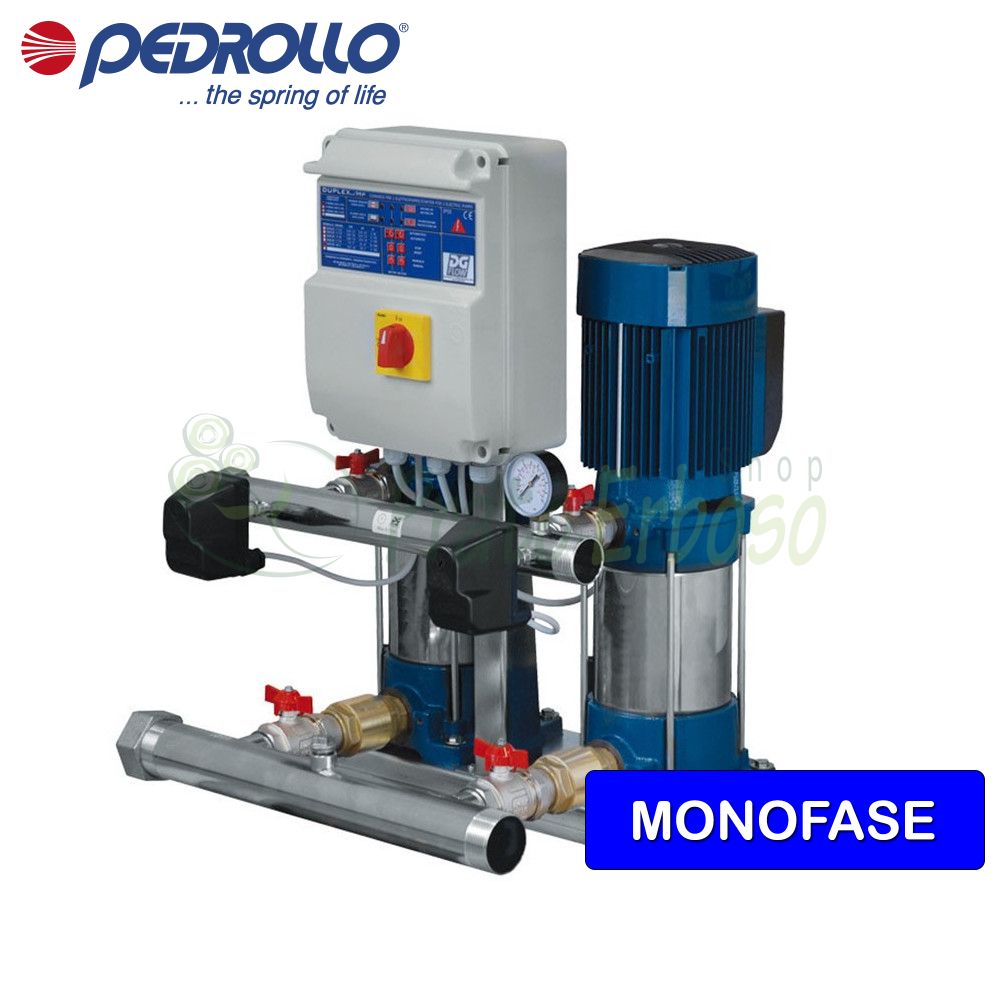

The CB2 - MKm 8/6 pressure group includes 2 MKm 8/6 electric pumps, a base, a pressure switch and an electronic panel.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 4.4
- Power (HP)
- 6
- Current consumption at 400V (A)
- 10
- Suction mouth
- 2" 1/2
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 80
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 18.5
- Max. head (m.)
- 84
- Height (cm)
- 74.2
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 68
- Warranty (years)
- 2
CB2 - MKm models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
