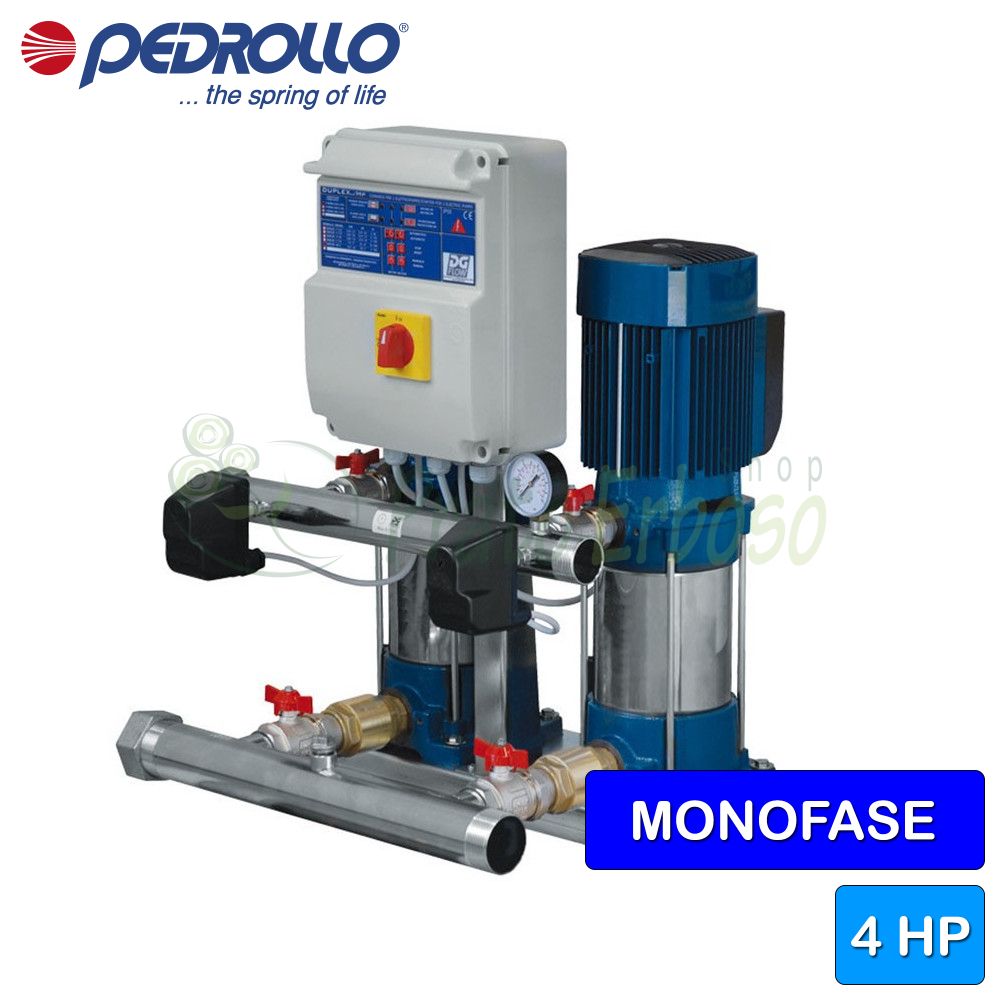

CB2 - MKm 8/5 - 2x2 HP single-phase pressure group
2 SINGLE-PHASE ELECTRIC PUMPS.
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 360 l/min (14 m³/h). Head up to 70 m.
The CB2 - MKm 8/5 pressure group from the CB2-CP series by Pedrollo allows for optimal management of the system's water needs.
Made up of 2 electric pumps that start automatically based on the system's needs.
Recommended for agricultural, civil, industrial and domestic installations.
Suitable for residential and commercial water supply activities, irrigation of large gardens, sports fields and agricultural crops.
The use of the CB2 - MKm 8/5 pressure group allows for considerable water and energy savings.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Absorption at 230V (A)
- 19.4
- Suction mouth
- 2" 1/2
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 80
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 15.5
- Max. head (m.)
- 70
- Height (cm)
- 85.4
- Width (cm)
- 53
- Depth (cm)
- 71.9
- Weight (Kg)
- 81
- Warranty (years)
- 2
CB2 - MKm models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
