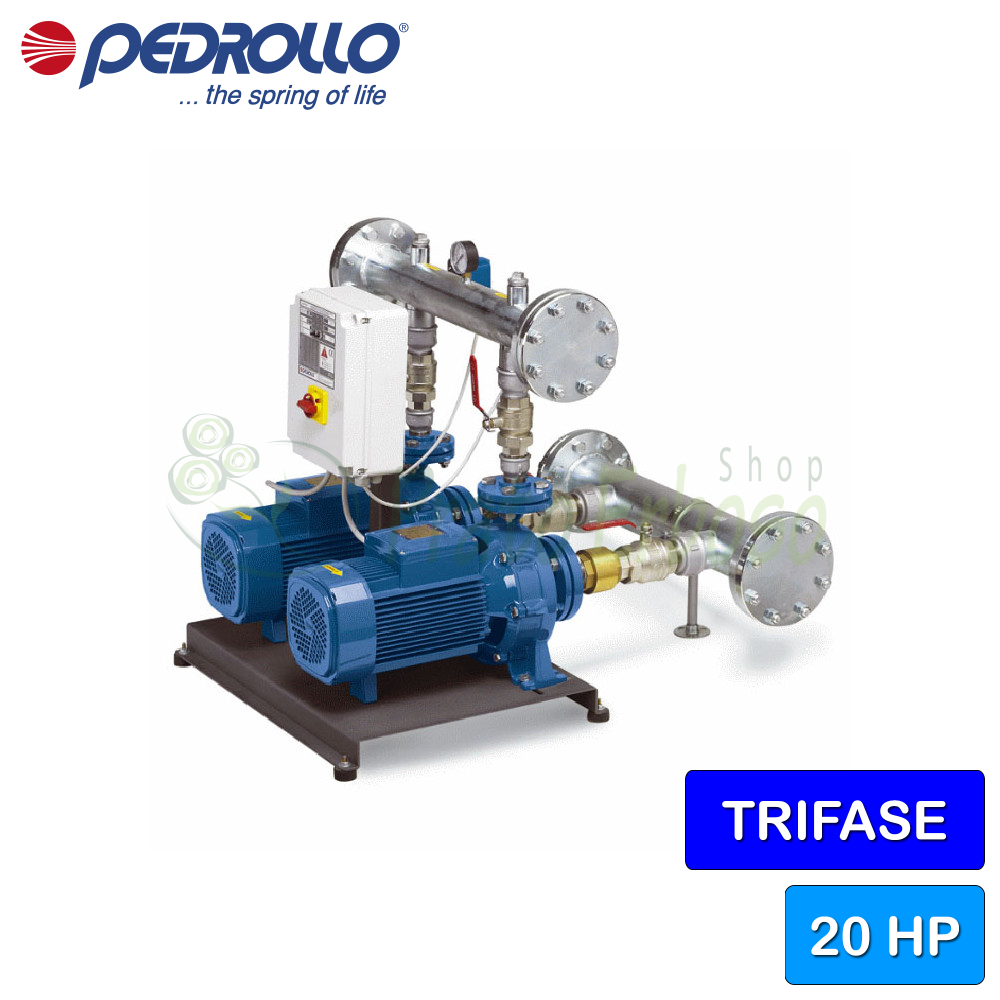

CB2 - 2CP 40/180A - 2x10 HP three-phase pressure booster set
2 THREE-PHASE ELECTRIC PUMPS.
2 x 7.5 kW (2 x 10 HP) motor. Flow rate up to 800 l/min (48 m³/h). Head up to 88 m.
The CB2 - 2CP 40/180A pressure group from the CB2-2CP series by Pedrollo allows for good flexibility in system management.
Recommended for installations in the agricultural, civil and industrial sectors.
Suitable for residential and commercial water supply, irrigation of large gardens, sports fields and agricultural crops and for the movement of clean water.
The CB2 - 2CPm 40/180A group is suitable for pumping clean water or aqueous solutions that do not chemically or mechanically damage the components.
Consisting of 2 2CPm 40/180A electric pumps, the base, 2 pressure switches and an electrical panel.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 15
- Power (HP)
- 20
- Current consumption at 400V (A)
- 30.8
- Suction mouth
- 4"
- Delivery mouth
- 3"
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 60
- Max. head (m.)
- 88
- Height (cm)
- 105.6
- Width (cm)
- 70
- Depth (cm)
- 68.8
- Weight (Kg)
- 188
- Warranty (years)
- 2
CB2 - 2CP models and performances
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
