CB2 - 2CP 40/180B - Three-phase pressure group 2x7.5 HP

2 THREE-PHASE ELECTRIC PUMPS.

2 x 5.5 kW (2 x 7.5 HP) motor. Flow rate up to 800 l/min (48 m³/h). Head up to 76 m.

€3,614.68 Tax included

2962.85 Tax excluded

€6,572.14-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - 2CP 40/180B - Three-phase pressure group 2x7.5 HP
  • Use dot instead of comma

Loading

Description

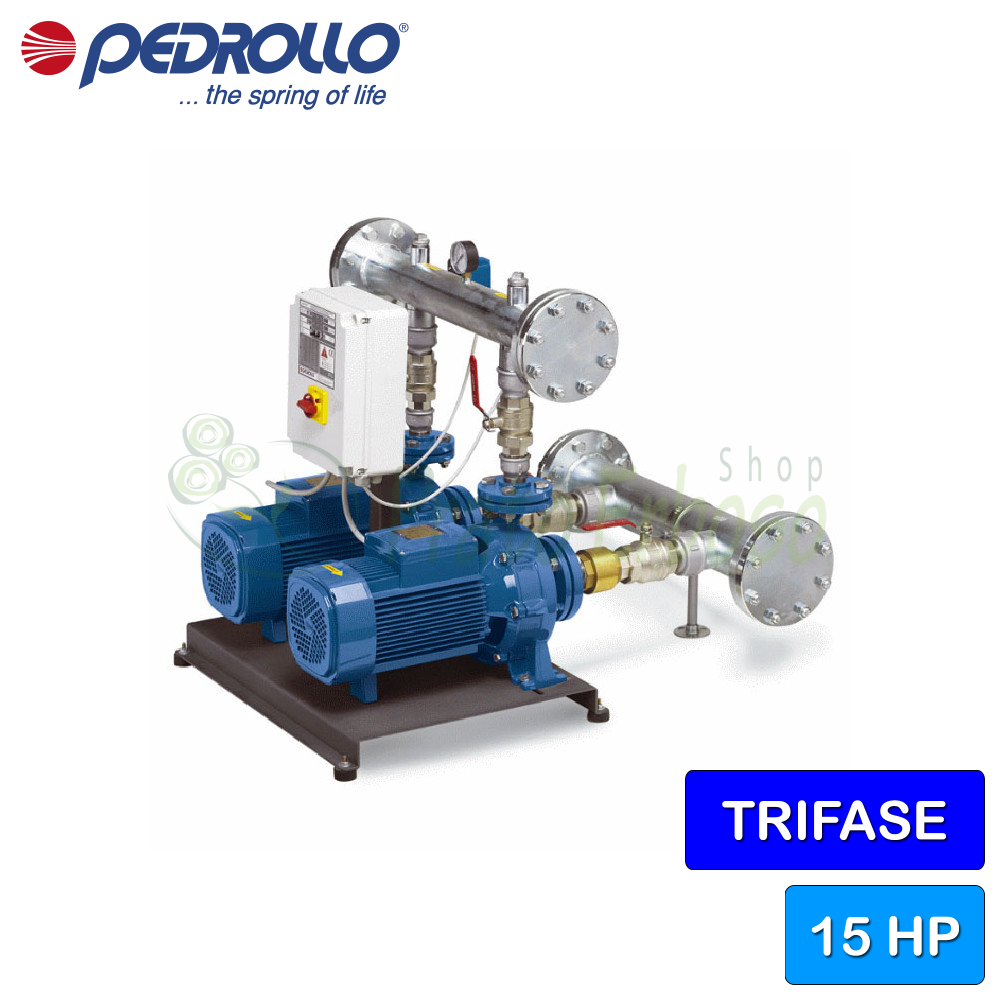

The CB2 - 2CP 40/180B pressure group from the CB2-CP series by Pedrollo is recommended to ensure greater flexibility in the system.

Suitable for pumping clean water or aqueous solutions that do not chemically damage the components.

Set up in such a way that one or both electric pumps start up at each increase in demand.

The electronic circuit in the control panel allows the pumps to be automatically switched at each start or stop cycle.

The CB2 - 2CP 40/180B pressure group includes 2 2CP 40/180C electric pumps, a base, a pressure switch and an electronic panel.

Data sheet
Brand Pedrollo
Reference CB2 - 2CP 40/180B
In stock 10 Items
Motor connection
THREE-PHASE
Power (Kw)
11
Power (HP)
15
Current consumption at 400V (A)
24.6
Suction mouth
4"
Delivery mouth
3"
Minimum flow rate (l./min.)
200
Max. flow rate (l./min.)
800
Min. head (m.)
60
Max. head (m.)
88
Height (cm)
105.6
Width (cm)
70
Depth (cm)
68.8
Weight (Kg)
178
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - 2CP models and performances

GUY
Three-phase
CB2 - 2CP 25/14B
CB2 - 2CP 25/16C
CB2 - 2CP 25/16B
CB2 - 2CP 25/16A
CB2 - 2CP 32/200C
CB2 - 2CP 32/200B
CB2 - 2CP 32/210B
CB2 - 2CP 32/210A
CB2 - 2CP 40/180C
CB2 - 2CP 40/180B
CB2 - 2CP 40/180A
POWER
KWHP
2x1.12x1.5
2x1.12x1.5
2x1.52x2
2x2.22x3
2x32x4
2x42x5.5
2x5.52x7.5
2x7.52x10
2x42x5.5
2x5.52x7.5
2x7.52x10
