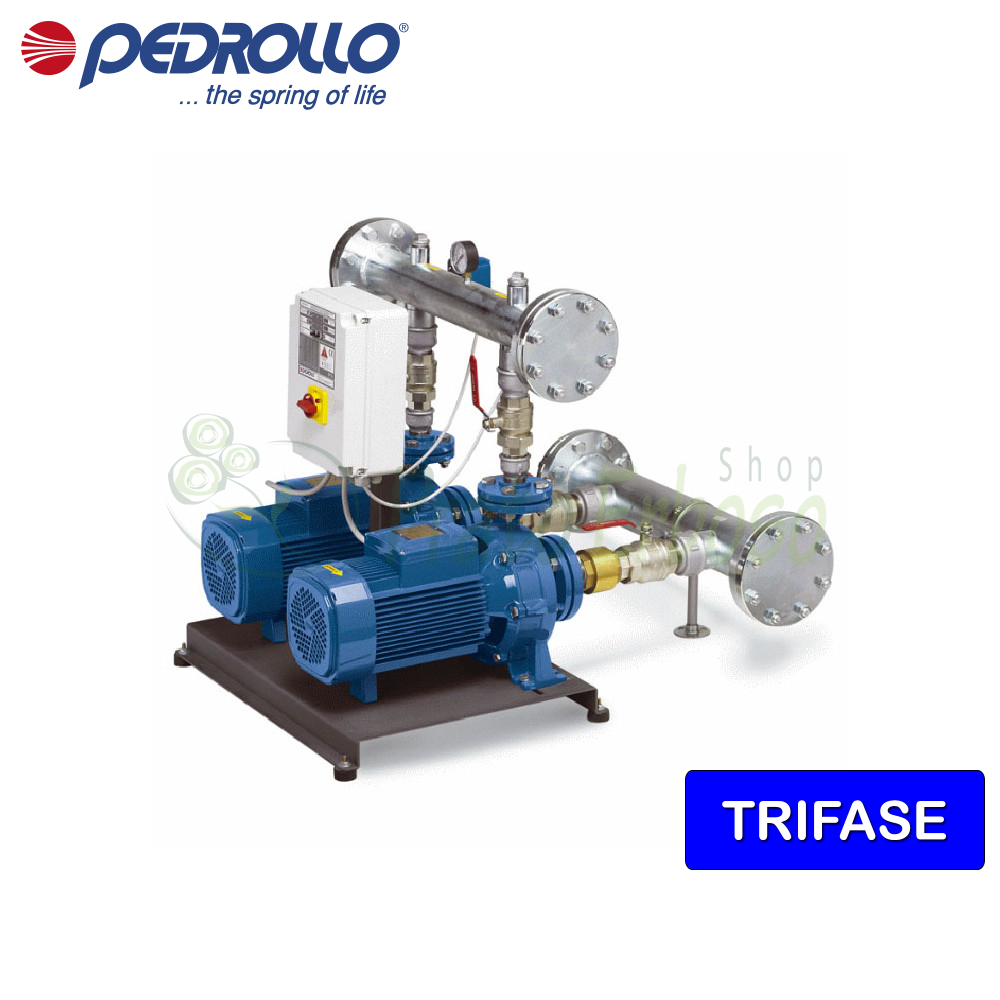

CB2 - 2CP 40/180C - Three-phase pressure group 2x5.5 HP

2 THREE-PHASE ELECTRIC PUMPS.

2 x 4 kW (2 x 5.5 HP) motor. Flow rate up to 640 l/min (38.4 m³/h). Head up to 64 m.

€3,522.75 Tax included

2887.5 Tax excluded

€6,405.00-45%

Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

CB2 - 2CP 40/180C - Three-phase pressure group 2x5.5 HP
  • Use dot instead of comma

Loading

Description

The CB2 - 2CP 40/180C pressure group from the CB2-CP series by Pedrollo is a pressurization system composed of 2 electric pumps.

Set up so that one or both pumps start automatically at each increase in demand.

The electronic circuit in the control panel allows the pumps to be automatically switched at each start or stop cycle.

Suitable for residential and commercial water supply activities, irrigation of large gardens, sports fields and agricultural crops.

The CB2 - 2CP 40/180C pressure group includes 2 2CP 40/180C electric pumps, a base, a pressure switch and an electronic panel.

Data sheet
Brand Pedrollo
Reference CB2 - 2CP 40/180C
In stock 10 Items
Motor connection
THREE-PHASE
Power (Kw)
8
Power (HP)
11
Current consumption at 400V (A)
19.6
Suction mouth
4"
Delivery mouth
3"
Minimum flow rate (l./min.)
200
Max. flow rate (l./min.)
700
Min. head (m.)
35
Max. head (m.)
64
Height (cm)
105.6
Width (cm)
70
Depth (cm)
68.8
Weight (Kg)
168
Warranty (years)
2
Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - 2CP models and performances

GUY
Three-phase
CB2 - 2CP 25/14B
CB2 - 2CP 25/16C
CB2 - 2CP 25/16B
CB2 - 2CP 25/16A
CB2 - 2CP 32/200C
CB2 - 2CP 32/200B
CB2 - 2CP 32/210B
CB2 - 2CP 32/210A
CB2 - 2CP 40/180C
CB2 - 2CP 40/180B
CB2 - 2CP 40/180A
POWER
KWHP
2x1.12x1.5
2x1.12x1.5
2x1.52x2
2x2.22x3
2x32x4
2x42x5.5
2x5.52x7.5
2x7.52x10
2x42x5.5
2x5.52x7.5
2x7.52x10
